đź“Ś Product Overview

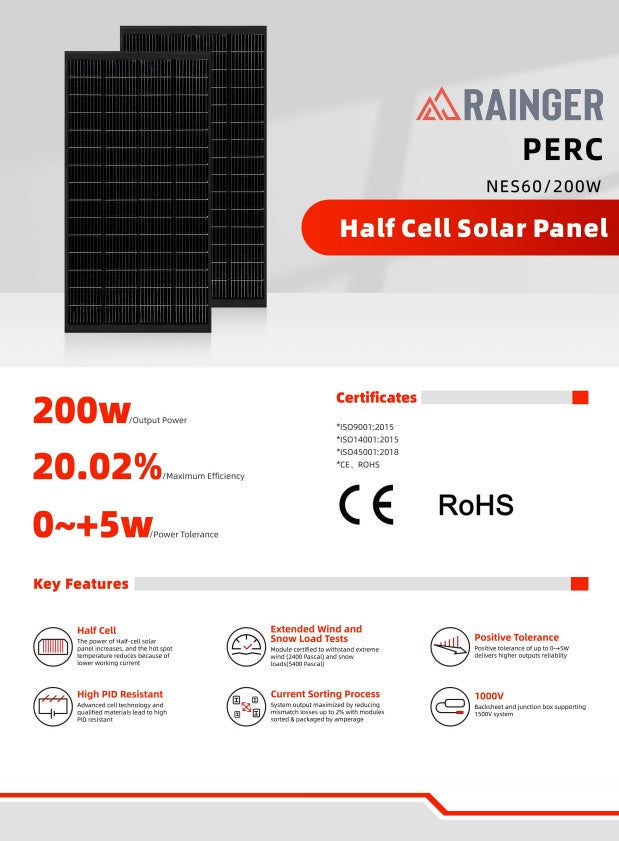

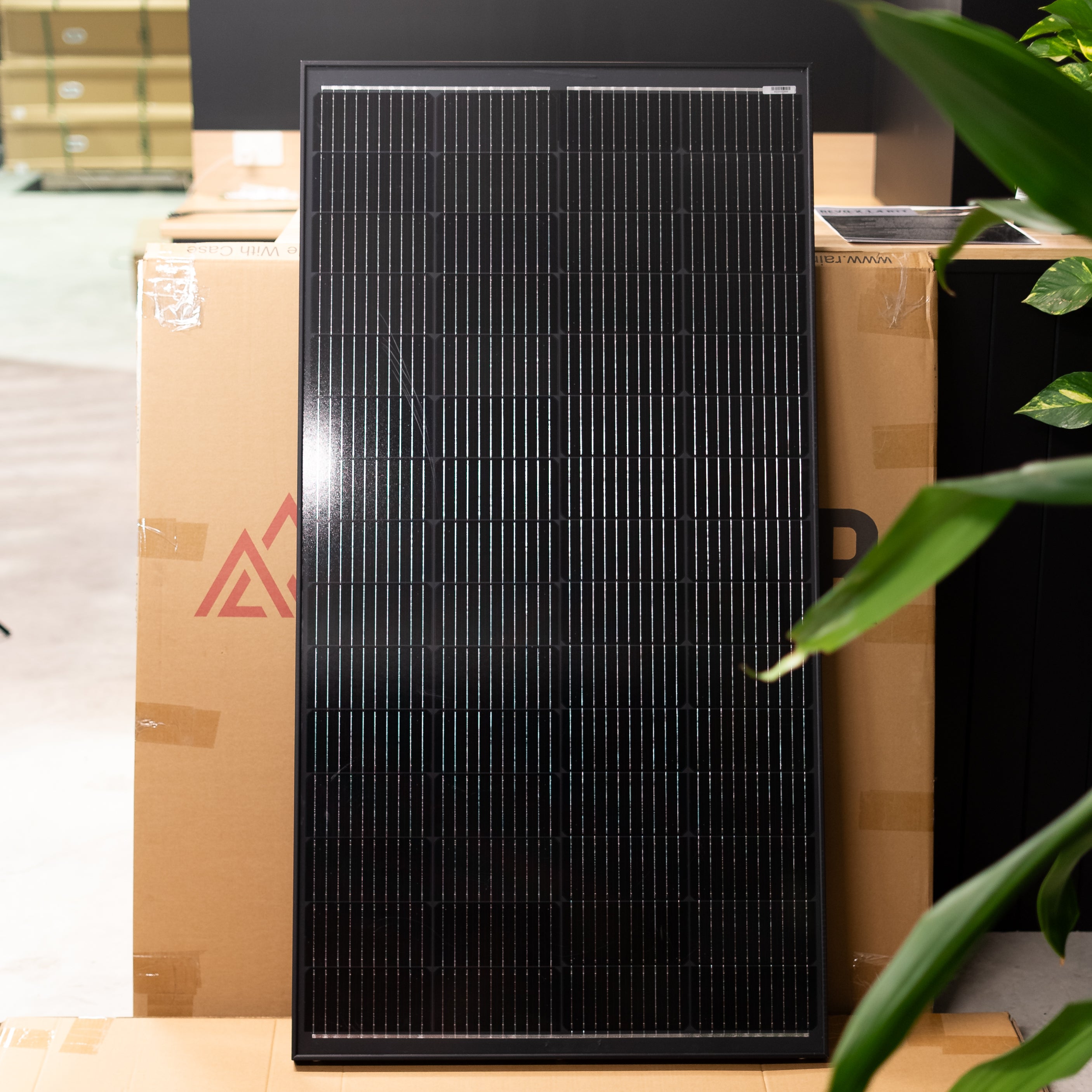

Product Name: 200W All-Black Monocrystalline PERC Half Cell Solar Panel
Weight Saving: 200W Panel – Slimline form factor replaces twin 100W setups – Save install time, weight, and wiring complexity. Less Cost – One panel, one bracket solution. Nutserts Installed for Sleek Mounting on Ends - Very Rare and Exclusive to RAINGER
Key Features:
-
Power Output: 200W
-
Cell Type: Monocrystalline PERC (Half Cell)
-
Cell Size: 182mm MBB
-
Module Efficiency: 20.02%
-
Dimensions: 1480 x 770 x 35 mm
-
Weight: 11.5 kg ± 0.5 kg
-
Frame: Anodized Aluminium Alloy
-
Glass: 3.2 mm Tempered Glass
-

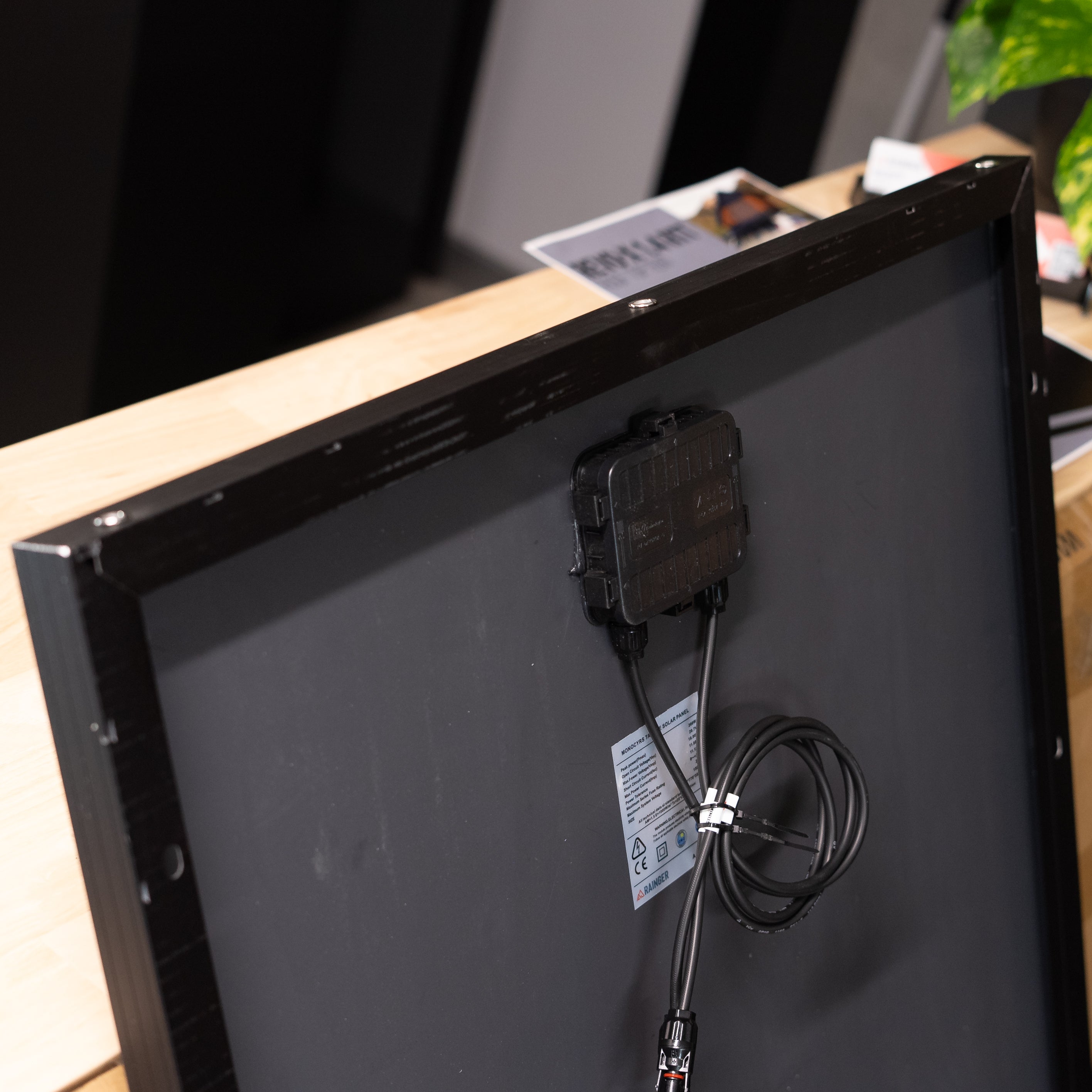

Connector Type: MC4
-
Operating Temperature Range: -40°C to +85°C
-
Maximum System Voltage: 1000 V DC
-
Warranty: 12-year product warranty; 25-year linear power output warranty
Certifications:
-
IEC 61215
-
IEC 61730
-
ISO 9001:2015
-
ISO 14001:2015
-
ISO 45001:2018
-
CE
-
RoHS
Product Description:
Upgrade your off-grid rig with the high-efficiency and ultra-reliable 200W All-Black Monocrystalline PERC Half Cell Solar Panel. Built with proven cell technology and tailored for extreme Australian conditions, this panel is ideal for Touring Vehicles, Camper Trailers, Tradie Utes, and Roof Top Tent Installations.
Key Features:
-
Superior Efficiency: Achieves 20.02% module efficiency with 200W output.
-
Advanced Cell Technology: Built with 182mm MBB half-cut PERC cells for stronger, longer-lasting performance.
-
Elegant All-Black Design: Modern, premium look that complements 4x4 and overland builds.
-
Durable Construction: Reinforced with 3.2 mm tempered glass and an anodized aluminium frame.
-
Easy Integration: MC4 connectors + nutsert mounting makes install simple and secure.
-
Certified Quality: Internationally approved for safety, reliability, and durability.

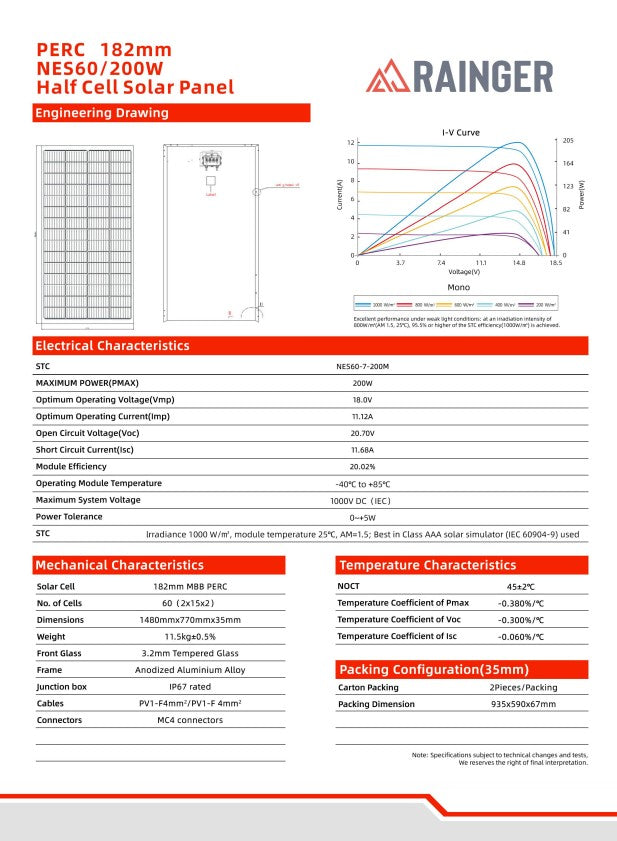

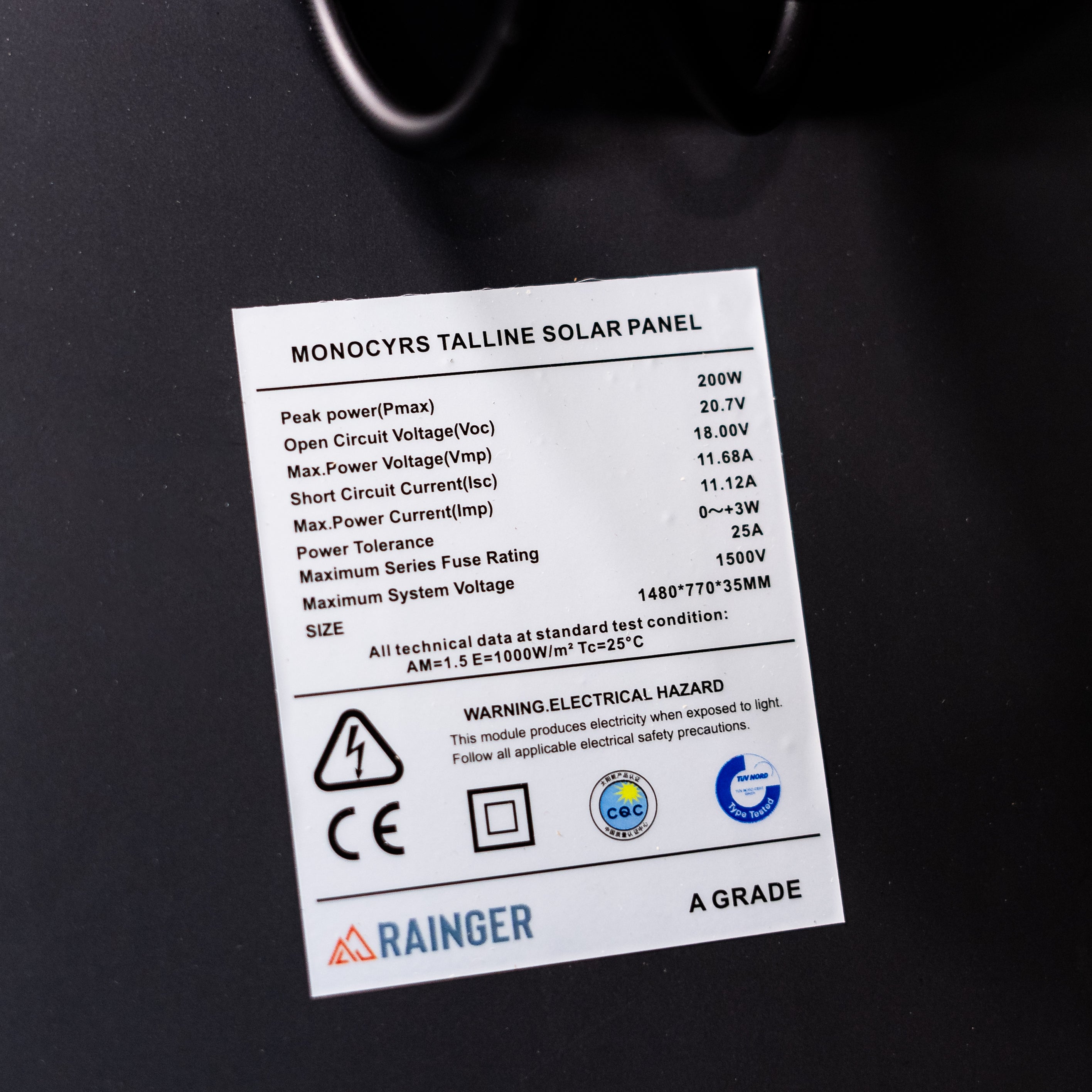

Technical Specifications:
-
Dimensions: 1480 x 770 x 35 mm
-
Weight: 11.5 kg ± 0.5 kg
-

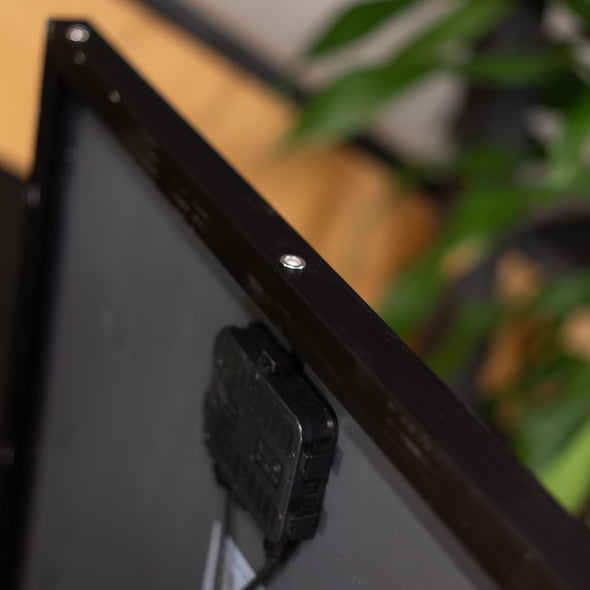

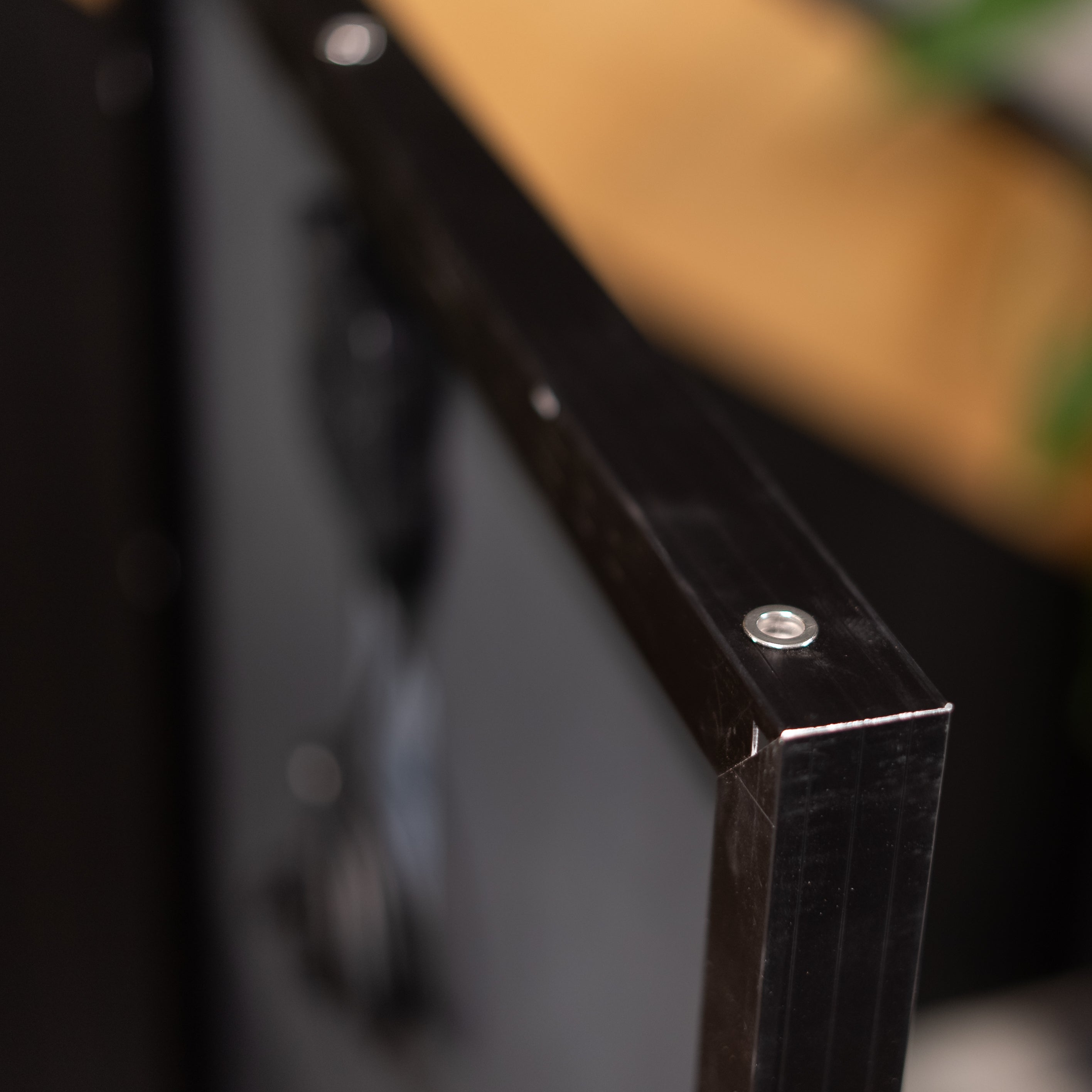

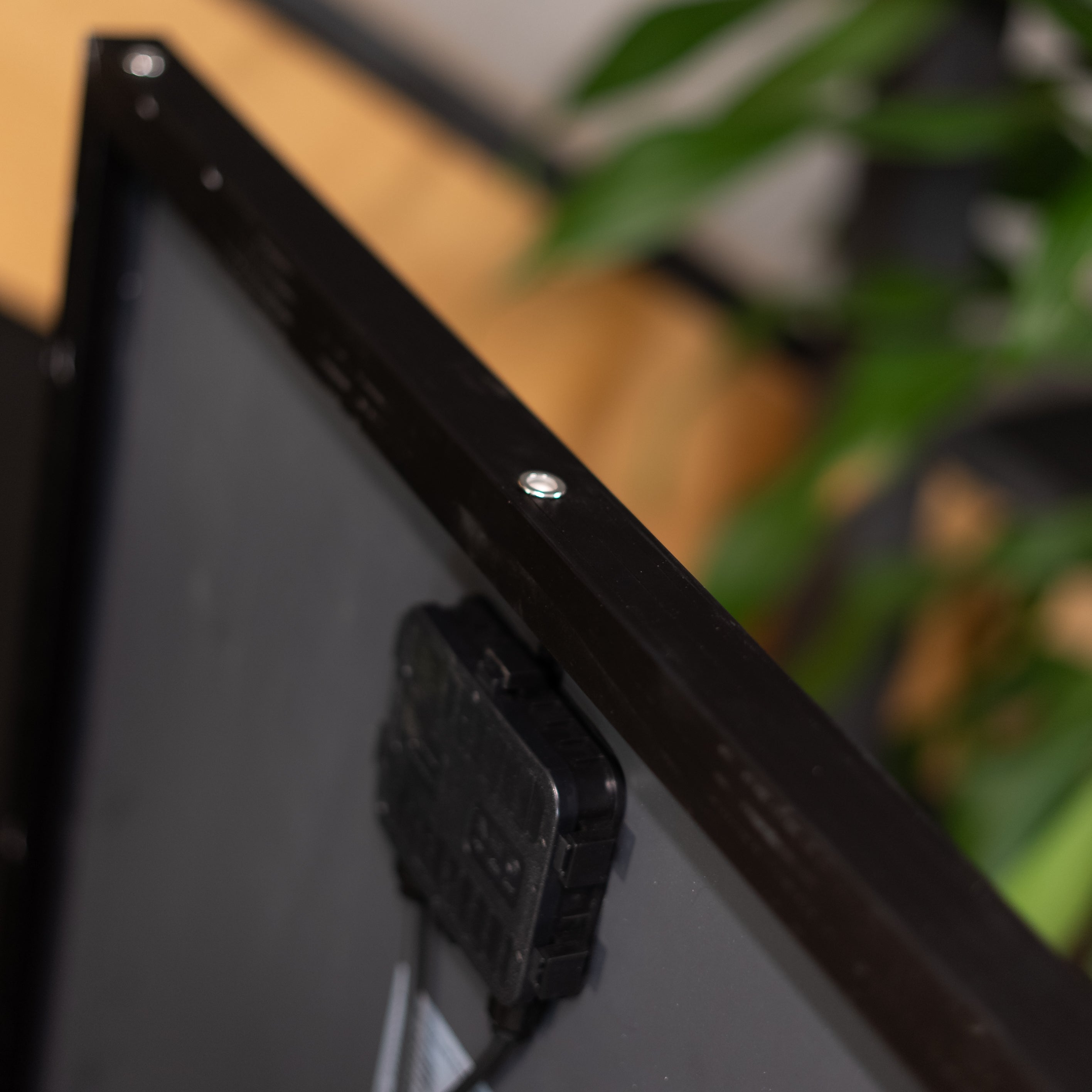

Mounting: 4x M8 Pre-Installed Stainless Nutserts Per Side (Short edge – 770mm)
-
Operating Temperature: -40°C to +85°C
-
Max System Voltage: 1000 V DC
-
Power Tolerance: 0 ~ +5W
-
Warranty: 12-year product warranty; 25-year linear power output warranty
What is PERC?
âś… Higher Efficiency:
PERC cells improve module efficiency by 1–2% over standard cells—ideal for limited roof space on 4WDs or trailers.
âś… Low-Light Performance:
Maintains energy generation in early mornings, late afternoons, or cloudy conditions.
âś… Improved Heat Performance:
Enhanced temperature coefficients make it ideal for Australia's hot touring environments.
âś… Cost-Effective:
Delivers better performance-per-dollar than traditional panels.
âś… Built to Last:
Reduces long-term degradation through improved cell architecture.
Why Choose PERC Panels for Australian Conditions?
Australia’s extreme temperatures, strong sunlight, and remote camping needs are perfectly matched to PERC’s durability and efficiency. It’s the smart choice for solar installs where performance matters most.
âś… Half-Cell Advantages
-
Improved Shade Performance:
Power loss is minimised if part of the panel is shaded—critical for bush or tree-covered campsites.
-
Increased Output:
Half-cell layout reduces resistance, boosting real-world output for compact off-grid setups.
-
Lower Heat Buildup:
Split current flow keeps panel temps lower—essential for exposed roof mounts in the outback.
-
Enhanced Durability:
Less stress per cell means more rugged long-term reliability for off-road environments.
-
Consistent Off-Grid Power:
Keeps fridges running and batteries topped up, even on the most remote tracks.
Why Choose Half-Cell Panels for Australian Conditions?
Our lifestyle is tough. Your gear should be tougher. Half-cell panels are built for shade, dust, heat, and long-haul touring—everything the Aussie bush can throw at you. They deliver smarter, stronger, and more efficient power anywhere you roam.
Ideal for:
Touring Vehicles | Camper Trailers | Rooftop Tents | Off-Grid Camping | 4x4 Adventure Travel | Australian Conditions | Reliable Solar Power | Efficient Solar Solutions | Remote Area Touring | Outdoor Lifestyle
