REDARC Fuse Kit - FK40 / FK60 - Suits BCDC Dual Battery Chargers
FK40
- Shipping Available
- Low stock - 1 item left
- Backordered, shipping soon
Product Description
Your REDARC charger does not come with its fuses. Every BCDC Classic, BCDC Core and BCDC Alpha ships without them, and REDARC names the exact kit each model needs. This is that kit.
REDARC's own technical support team say a failed fuse or fuse holder is one of the most common problems they hear about on dual battery installs. A poor-quality holder does not grip the fuse properly, dirt gets into the contact, resistance rises, heat builds, and the holder melts. It usually gets diagnosed as a blown fuse when the real cause was the holder. These kits use holders and fuses matched to the cable size for the current, so the connection stays solid.
Which kit do I need?
BCDC Classic and BCDC Core - one kit per model:
| Charger | Fuse rating | Kit |
|---|---|---|
| BCDC1225D / BCDCN1225 (Core 25A) | 40A | FK40 |
| BCDC1240D / BCDCN1240 (Core 40A) | 60A | FK60 |
| BCDC1250D | 60A | FK60 |
BCDC Alpha - depends on current AND where it is mounted:
| Charger current | In-cabin install | Engine bay install |
|---|---|---|
| 25 - 28A | 40A (FK40) | 50A (FK50) |
| 40A | 50A (FK50) | 60A (FK60) |
| 50 - 55A | 60A (FK60) | 70A (FK70) |
REDARC's reason, in their words: fuses installed in an engine bay need to be rated slightly higher than those installed in-cabin, to compensate for higher engine bay temperatures.
So an Alpha 50 mounted in the cabin or canopy takes an FK60. An Alpha 50 mounted in the engine bay takes a higher-rated fuse than this kit provides. If you are not certain where yours is going, call us on 07 5211 0841 before you order.
What is in the box (FK60)
- 2 x fuse holders with fasteners
- 4 x 60A fuses
- 4 x cable lugs
- 4 x adhesive-lined heat shrink
- Detailed instruction sheet

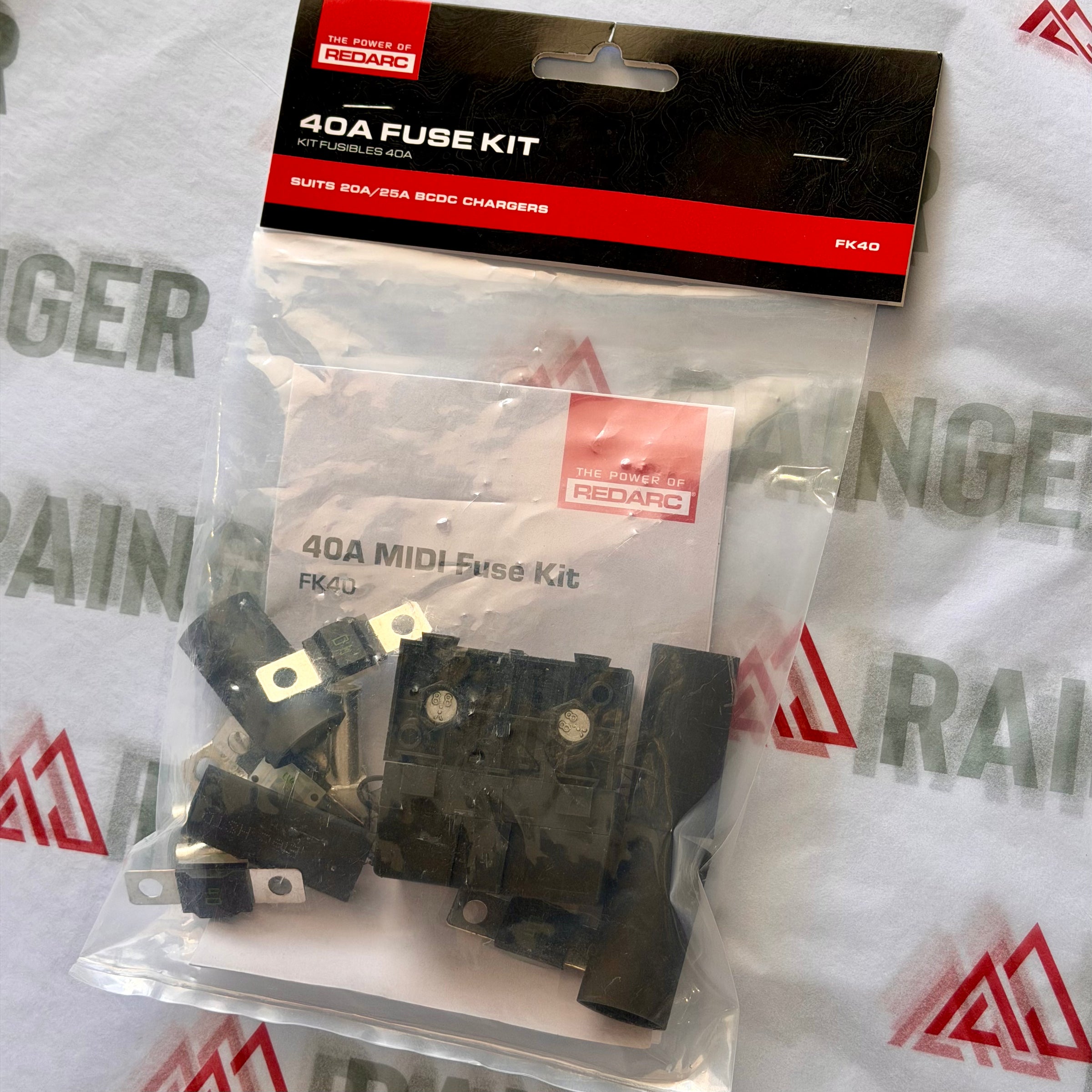

The FK40 kit is the same construction with 40A fuses.
Fitting
- Fuses must be mounted within 150mm of the battery positive terminal. The REDARC KIT19 battery-to-fuse cable is made for exactly this run.
- REDARC recommend keeping the cable between the charger and the auxiliary battery under 1 metre.
- Genuine REDARC parts, backed by the 2 year Australian warranty.
Frequently Asked Questions
Does my REDARC charger come with fuses?
No. REDARC list the input and output fuse rating for every BCDC charger and state that the fuses are not supplied. You need to buy the kit separately, which is what this is.
Which fuse kit suits my charger?
For the BCDC Classic and BCDC Core range it is fixed by model: FK40 for the 25A chargers, FK60 for the 40A and 50A chargers. For the BCDC Alpha range it depends on both the charge current and whether the unit is mounted in the cabin or the engine bay - see the table above.
Why does an engine bay install need a bigger fuse?
REDARC state that fuses installed in an engine bay need to be rated slightly higher than those installed in-cabin, to compensate for the higher temperatures in an engine bay.
Where do the fuses have to be mounted?
Within 150mm of the battery positive terminal. REDARC's KIT19 battery-to-fuse cable is made for that run.
Can I just use any fuse holder?
You can, but REDARC's support team report that a failed fuse holder is one of the most common faults they see on dual battery systems. A holder that does not grip the fuse properly builds heat and can melt, taking your charging with it. The kits use holders matched to the cable size for the rated current.
