Why floor moisture forms — even when you've tried everything

Aluminium conducts temperature extremely quickly. If it's 8°C outside, your tent floor is close to 8°C — regardless of the mattress and mat sitting on top of it. That floor temperature is set by the outside air and doesn't change based on what's happening inside the tent.

Inside the tent, two sleeping people raise both the air temperature and the humidity significantly. The average person exhales around 200–300ml of water vapour overnight — two people together can introduce close to 500ml of moisture into the interior air. That warm, humid air circulates through the tent, and when it contacts any surface that's below its dew point — the floor, the walls, the shell perimeter — it releases that moisture as condensation.

It's the same physics as a cold drink sweating on a hot day. The drink isn't absorbing moisture from the air — the cold surface is pulling it out. The floor of your tent is doing the same thing.

Where it actually forms (and why)

Condensation most commonly forms at the exposed floor perimeter — where cold alloy is directly in contact with circulating interior air and not fully covered by the mat — and on the walls and shell ceiling where warm air rises and meets cold surfaces.

Directly under the mattress body is actually one of the drier spots, because the mattress limits air circulation in that zone. The edges and transition between mat and floor are where moisture concentrates — which is why you often find it around the perimeter rather than in the centre.

What an anti-condensation mat actually does

A proper anti-condensation mat doesn't stop condensation forming on the cold alloy floor — that's an air physics problem no mat can solve. What it does is two things:

• Separates your mattress from the floor so any condensation that forms underneath doesn't saturate the foam
• Creates air channels beneath the mattress (if it has a raised or structured surface) so moisture can evaporate rather than pooling against the fabric

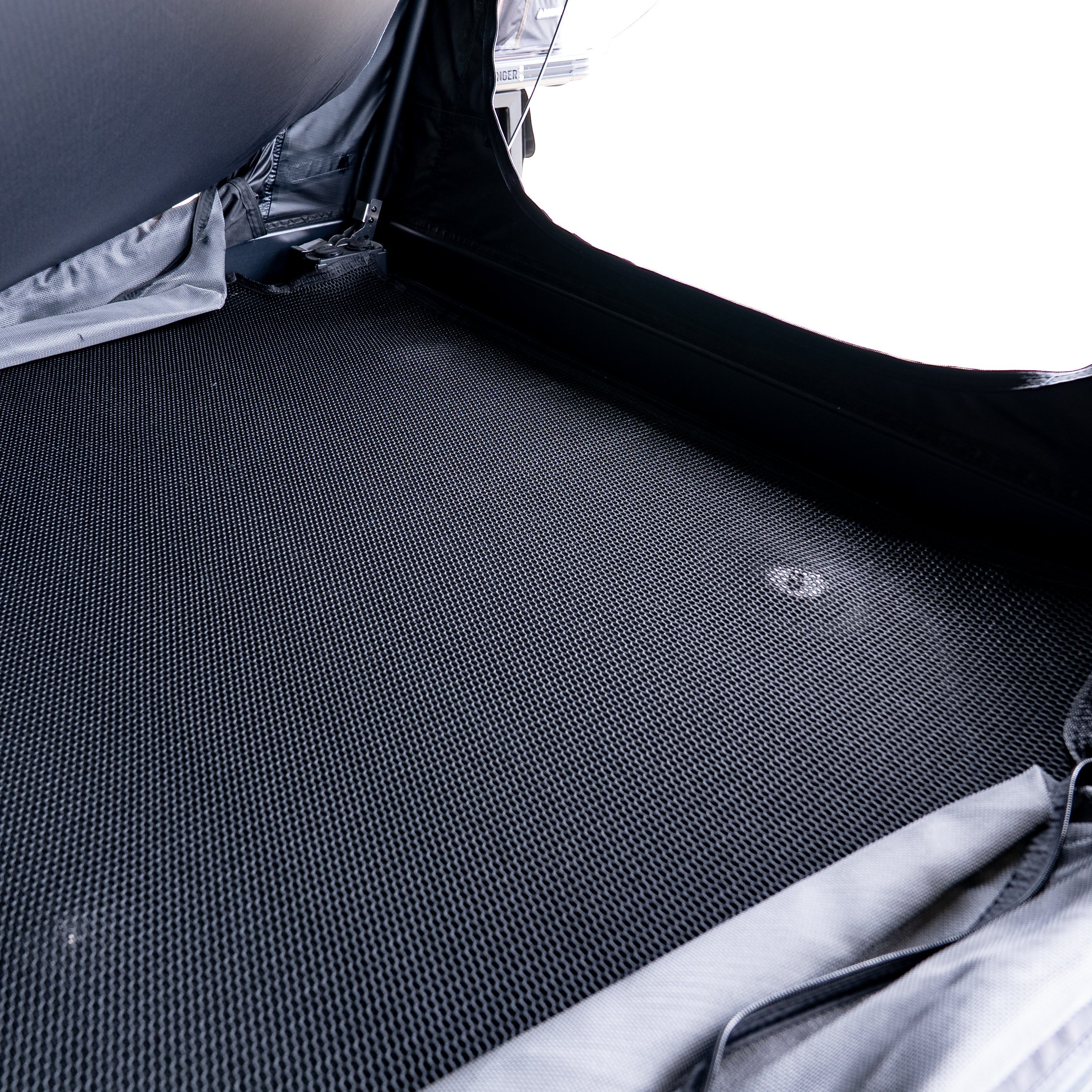

The Revo-X ships with a 15mm 3D honeycomb EVA mesh mat — a raised, structured surface with continuous air channels across the full floor base. It's non-absorbent and perimeter-edged to cover the full base area. The open honeycomb structure means any moisture underneath can breathe and evaporate rather than accumulate against the mattress. It's not flat foam — the structure is the point.

Why gym mats and jigsaw tiles don't fix it

Interlocking foam gym tiles get recommended in online groups regularly. They're cheap, available at Bunnings, and easy to cut to size. But there are two problems worth knowing about before you go down that path.

First, they're flat. They add a few millimetres of insulation but create no airflow channels under the mattress. Condensation that forms on the floor beneath them pools in that flat gap with nowhere to evaporate — the moisture is still there, you just can't see it as easily.

Second, the interlocking puzzle joins trap moisture over time. In a repeatedly damp environment, those joins hold moisture between trips. After multiple outings they can start harbouring mould and odour even when the surface feels dry on top. Short-term workaround, potential long-term problem.

Why mattress height matters more than most people realise

Here's something that rarely gets discussed: the floor perimeter of a rooftop tent — the cold alloy edge running around the base of the shell — is one of the main condensation zones. It's directly exposed to circulating interior air, it's cold, and on many tents it's not fully covered by the mat or mattress.

On a thinner mattress — 50mm or 70mm — there's a visible gap between the mattress edge and the tent wall. That cold perimeter floor sits exposed to warm, humid interior air all night. A taller mattress sits higher in the tent and covers more of that perimeter base, reducing exposed cold floor surface in contact with interior air. It's not the primary fix, but it's a genuine and underappreciated reduction in one of the most common condensation zones people notice when they open the tent in the morning.

Memory foam vs dual-density foam — the compression factor

Memory foam softens and compresses significantly under body weight — that's the property that makes it feel luxurious. But in a cold camping context, compression reduces effective insulation thickness. A 50mm memory foam mattress under a 90kg person compresses considerably at the hip and shoulder. The effective separation between sleeper and the cold surface below narrows meaningfully.

This isn't the direct cause of floor condensation — that's still the air physics issue described above — but a colder sleeping surface means a colder, less comfortable sleeper who generates more heat and exhales more moisture trying to compensate. It compounds the problem.

The Revo-X uses a 100mm dual-density system: a hard-density base foam that resists compression under load, topped with a convoluted eggshell comfort layer. The eggshell convolute — 20mm fingers cut from the top 50mm slab — means the top layer isn't a solid slab pressing against your cover fabric. It introduces surface air channels that allow minor airflow between mattress and cover, and it means your body is consistently elevated off the alloy base under load rather than pushing through toward it. The minimum clearance between a sleeping person and the tent floor is substantially greater than on a compressed 50mm or 70mm memory foam setup.

The polyester base fabric on the mattress cover is also non-absorbent — moisture that forms on the mat below doesn't wick up into the foam core. The covers are sold separately and the mats separately, so you can replace either without replacing the whole mattress.

Diagnosing what you've actually got

Before applying fixes, it's worth confirming which problem you're dealing with. The symptoms can look similar.

The towel test

Before laying down the mat and mattress for the night, place a dry cloth directly on the alloy floor in the centre. Check it in the morning before getting up. Damp cloth = condensation is forming on the floor itself. Dry cloth but moisture elsewhere (walls, canvas) = the floor isn't your primary problem.

The "one corner only" clue

Moisture concentrated in one corner rather than spread across the floor is usually a ventilation geometry issue — that corner is furthest from any open vent, air isn't circulating through it, and it stays coldest and most humid. More floor layers won't fix this. Crossflow will.

The "only after rain when stored" clue

Moisture that appears when you open the tent after it's been parked through rain — rather than after sleeping in it — is a different diagnosis. That's either condensation from temperature cycling in a sealed tent, or ingress at the seal line. That's a different issue covered separately.

Fixes that actually work — ranked by impact

1. Ventilation — always the first lever

If warm, humid air is the problem, the fix is giving it a path out before it condenses. Even cracking one vent 2–3cm makes a material difference on most nights. The most effective passive setup uses height difference — an opening near the top of the tent lets warm air exhaust upward while cooler, drier air enters lower.

Tents with a rain-protected roof vent have a significant advantage here. When the roof vent sits under the awning fly, it can stay open even in wet weather — warm, moist air escapes upward without rain getting in. On cold nights when you don't want a side door open, the protected top vent does the work without the cold draft. This is the single most underrated ventilation feature in the rooftop tent category.

The Revo-X rear canvas zips from the bottom up — different to every other opening on the tent. Rather than opening a full door, you can crack just the lower section at the head end, introducing low-level airflow exactly where cool air naturally wants to enter. Combined with the front window — which sits lower in height due to the X-Frame design — you can crack that front opening at the top and keep it largely sheltered in most conditions. The result is a passive front-low to rear-top crossflow path without needing fans or opening full doors in cold weather.

Worth noting: a hardshell tent pitched with its front window angled slightly into the prevailing breeze will naturally pressurise that opening — even a small crack lets fresh outside air push through and flush humid interior air toward the rear and upward through the roof vent. It's a simple positioning habit that experienced tourers use to get passive crossflow working harder without any power draw at all.

2. Active airflow — fans

A small fan running on low overnight is arguably more effective than any passive measure in difficult conditions. It forces air exchange rather than relying on natural convection — actively pushing moist interior air through and out of a vent rather than letting it stagnate and settle.

If your tent includes magnetic fan mounting near the top vent, you can position a fan to push air upward toward the roof vent while fresh air draws in lower. In humid coastal Queensland or tropical conditions, this makes more difference than any floor layer you can add.

3. Morning airing before pack-up

Most mould in rooftop tents doesn't form overnight — it forms in storage, when the tent is closed damp and then heat-cycled for days or weeks. Open everything for 15–20 minutes while you make breakfast. Prop the mattress briefly so air can get under it.

This one habit, done consistently, is the biggest separator between people who never get mould and those who do.

4. Desiccants — the right tool for the right job

Rechargeable silica gel bags (the indicator type that change colour when saturated) are useful for long-term storage between trips — place them on the mattress before closing the tent at the end of an outing, particularly in humid coastal climates.

What to look for in an RTT designed to reduce condensation

These are the design features that actually do the work — versus ones that get marketed without making much real difference:

• Multiple openings for true crossflow — on different walls and different heights, not just two windows on the same side
• A rain-protected roof vent that stays open in wet weather and allows hot air to exhaust upward
• Low-level openings on opposite ends for cool air intake and genuine stack-effect ventilation
• Fans with purpose-built mounting near the top vent for active air exchange
• A 3D structured anti-condensation mat — raised surface with air channels, not flat foam
• A mattress tall enough to cover the perimeter base of the shell, reducing exposed cold floor area
• A thick mattress with compression-resistant base that keeps you elevated under load
• PU-backed, wipeable internal surfaces — so moisture that does form can be wiped off and transferred to a dry towel taken out of the tent, rather than absorbed into canvas that then gets folded directly onto your bedding

That last point matters more than most people realise. When you pack a tent down, whatever surface was damp overnight is now folded down in direct contact with your doona, sleeping bag, pillows, and mattress for the entire day while you drive to the next campsite. Day after day, that trapped moisture transfers into the bedding. You don't notice it immediately, but after a few days on the road your sleeping setup starts feeling clammy and uncomfortable — and you're looking at a significant airing session to recover it. Canvas that holds moisture and gets folded onto your bedding is a slow creep problem. PU-backed surfaces that wipe dry in seconds are not.

There's also the heat side of this equation. A black alloy hardshell roof in direct Australian sun can reach 60–80°C on a hot day — similar to a dark car roof sitting in a carpark. That heat cycles through the tent interior all day. Any moisture trapped inside when you packed down gets driven into whatever it's in contact with — bedding, foam, canvas joins. Limiting how much moisture is in the tent at pack-down is the most effective thing you can do. The less there is to start with, the less there is to cause problems during the day.

Worth knowing if you're on a Revo-X: the 295W glass solar panel sits in a 35mm alloy frame across roughly two-thirds of the tent roof — and that arrangement functions almost identically to a safari roof. The panel absorbs the direct solar radiation across most of the lid surface. The 35mm air gap between the panel underside and the alloy tent roof allows heat to dissipate rather than conduct straight through into the interior. The tent lid underneath stays substantially cooler in direct sun than it would fully exposed. It's a passive thermal benefit that's easy to overlook — the solar is doing two jobs. Generating power, and shading the roof.

A practical tip from experienced tourers worth passing on: if you're packing away after heavy condensation or rain and can't fully air out first, lay a simple waterproof tarp over the mattress before closing the tent. It creates a barrier between the damp outer canvas and your bedding for the drive — so when you open up that night, your sleeping setup is still dry and you're only managing the canvas and shell, not re-drying everything inside.

If your tent ticks most of these boxes, the tips above will have you sleeping dry in all but extreme conditions. If it doesn't, you're compensating constantly for design gaps — and no amount of gym tiles or moisture absorbers fully bridges that.

3-minute pack-down routine that prevents mould

1. Open all vents and doors for 15–20 minutes while you break camp
2. Check the alloy floor — wipe any visible condensation with a dry cloth before closing
3. Prop the mattress briefly so air can circulate underneath
4. Make sure the canvas feels dry to the touch — cool is fine, damp is not
5. If the tent will be stored for more than a few days, open it again at home for a couple of hours before leaving it closed

If you're moving between sites daily and can't do a full airing, at minimum wipe the floor and give the canvas a quick check before closing. Every bit of moisture you remove at pack-down is moisture that won't be sitting on your bedding by the time you arrive at the next campsite.

Frequently asked questions

Still getting moisture after trying these fixes?

If you're running good ventilation habits and still experiencing significant floor moisture, it's worth talking through your specific setup — vehicle, climate, how you camp, and what tent you're running. Sometimes it's a straightforward fix that's hard to identify without the full picture.
