Opening your rooftop tent to find the seam around the bottom edge soaked — but the inside dry — is one of the more confusing moisture symptoms RTT owners run into. It looks like a leak. It usually isn't. Here's how to tell the difference and what to do about each one.
The short answer: Moisture concentrated along the seal line when you open your tent is most commonly condensation forming at the coldest surface in the tent — the perimeter edge where the two shell halves meet. It can also be wicking along the canvas edge, or in less common cases, actual ingress from poor seal compression. Each has different causes and different fixes. Diagnosing which one you have takes about five minutes.
A note on this guide: What follows is based on industry knowledge, RTT design experience, and the common patterns we see discussed across the Australian overlanding community — not a list of issues we've personally experienced with the Revo-X. Where we've designed around specific failure modes seen elsewhere in the market, we've noted that. The goal is to help you diagnose and fix whatever tent you're running.
Why the seal area is a condensation hotspot
The perimeter seal — where the top and bottom shell halves meet and latch closed — is the coldest continuous surface inside a closed rooftop tent. It's alloy on both sides of the join, it runs around the full perimeter with no insulation, and it has direct thermal contact with outside air temperature.
Warm, moist air inside the tent naturally circulates toward the edges and rises. When it reaches the cold seal perimeter, it hits a surface below the dew point and releases moisture — exactly as it does on the floor, but concentrated in a ring around the tent rather than spread across the base.
This is why you can open a tent after a cold night and find the seal edge noticeably damp while the middle of the canvas and floor are relatively dry. The perimeter is the coldest point. Condensation goes where it's coldest.
The three root causes — and how to tell them apart
1. Condensation at the seal perimeter
By far the most common cause. Warm humid interior air condenses on the cold alloy seal edge. The moisture appears on the inside face of the seal, often as a ring of dampness running around the perimeter. The canvas above and below the seal line is usually drier, and the floor near the centre is dry.
Key tell: it appears after nights with people sleeping in the tent, not after rain events when the tent was empty and closed.
2. Wicking along the canvas or seal edge
Canvas and some seal materials can wick moisture along their edge from the outside. If rain or heavy dew is sitting on the outside of the closed tent, moisture can travel laterally along the fabric weave or the rubber seal material and appear just inside the closure line — even without a direct leak path.
Key tell: appears after wet weather or heavy dew even when nobody slept in the tent. Often more pronounced at the front edge and leading corners where water tends to pool or run.
3. Seal compression or ingress
If the rubber seal isn't compressing evenly — due to latch tension, debris on the seal surface, canvas bunching at the closure line, or seal degradation — small gaps can allow actual water ingress during rain. This is the least common cause of seal-area moisture but the most important to identify correctly.
Key tell: moisture appears in a specific location rather than uniformly around the perimeter, and it correlates directly with rain rather than occupancy. Often more water than condensation would explain.
How to diagnose which one you've got
The overnight occupancy test
The simplest diagnostic. Note the weather conditions and whether anyone slept in the tent. If you get seal moisture on a dry, clear night with two people sleeping inside — that's condensation. If you get it after rain with nobody in the tent — that's wicking or ingress. If both conditions produce it but rain produces significantly more, there may be two things happening.
The hose test for ingress
With the tent closed and latched normally, run a garden hose gently over the seal area from the outside — not high pressure, just a steady flow. Check inside immediately. If water appears at specific points during this test, you have an ingress issue at those locations. If nothing comes through, your seal is doing its job and the moisture you're seeing is condensation or wicking.
The location pattern clue
Condensation tends to appear fairly evenly around the perimeter — or more toward the lower corners and edges where cold air pools. Ingress tends to be localised — a specific corner, the leading edge into the prevailing weather, or a point near a latch where seal compression may be uneven. If you can reliably predict exactly where the moisture will be based on wind direction or rain angle, it's likely ingress at that point.
The silica indicator test for moisture mapping
Place rechargeable silica indicator beads (the type that change colour when they absorb moisture) at each corner and at the midpoint of each side before closing the tent. Check in the morning which ones have changed colour. This tells you where moisture is concentrating — which informs whether you're dealing with a localised ingress point or broad perimeter condensation. It's a simple diagnostic tool that costs a few dollars and gives you a clear picture overnight.
Fixes — matched to the cause
If it's condensation at the seal perimeter
The fix is the same as for floor condensation — improving ventilation so warm humid air is exhausted before it reaches the cold seal edge. Cracking the roof vent, running a fan on low, and ensuring some crossflow through the tent overnight all reduce the amount of moisture available to condense at the perimeter. See the full guide on floor moisture and condensation for the complete ventilation approach.
The seal-area condensation is also reduced by a taller mattress that covers more of the cold perimeter base — less exposed cold floor surface near the seal edge means less of a cold-zone for warm air to condense against. On thinner mattresses, the perimeter floor gap is larger and the cold zone extends further inward.
PU-backed internal surfaces help here too — any condensation that does form on the inner shell wall or seal area can be wiped away quickly before pack-down rather than being absorbed into canvas. What you pack away dry stays dry. What you pack away damp transfers moisture to whatever it's folded against — including your bedding — for the entire day of driving.
If it's wicking
Wicking along the canvas edge is reduced by keeping the seal area clean and ensuring the canvas isn't folding or bunching at the closure line when the tent closes. Excess canvas material caught in the seal creates a wick path from outside to inside. Make sure when you close the tent that canvas, mesh, and bedding are all clear of the seal line before latching.
A seam-sealed canvas construction significantly reduces wicking along the stitched joins — if the needle holes in the seams are sealed, moisture can't travel along the thread path from the outside surface inward. This is one of the reasons seam sealing matters beyond just waterproofing the fabric face.
In heavy dew environments, positioning the tent so the prevailing moisture direction (typically the direction of morning dew formation) hits the side rather than the leading edge reduces how much wicking the seal is exposed to overnight.
If it's seal compression or ingress
First check the seal surface and latch mechanism for debris — a small piece of grit, a fold of canvas, or a twig in the seal line can prevent full compression and create a gap. Clean the seal surface with a damp cloth and inspect the rubber for any cracking, flattening, or distortion.
Check latch tension. On a tent with multiple latches, uneven tension means some points in the seal are compressed more than others. The goal is even compression around the full perimeter. If some latches are noticeably looser than others, that's a likely ingress point.
Bedding placement matters too. If a doona or pillow is bunched against the canvas near the seal line, it can hold the canvas slightly proud of the seal when the tent closes — reducing compression at that point. Keep bulky bedding toward the centre of the mattress, not pushed against the walls.
On seal conditioning:
Rubber seals can be treated with a rubber conditioner to maintain flexibility and compression. Avoid petroleum-based products — they degrade rubber over time. A silicone-based rubber conditioner or a dedicated seal treatment applied once or twice a year keeps the seal supple and maximises compression. A dry, cracked seal compresses unevenly and creates micro-gaps even when latched.
What a well-designed seal and latch system does differently
Seal performance isn't just about the rubber — it's about where the seal sits, how well it's protected, how evenly the top shell lands on it, and whether the latch system applies consistent compression around the full perimeter. Most rooftop tents address one or two of these. The Revo-X is designed around all four.
The hidden seal — protected from UV, rain, and direct water contact

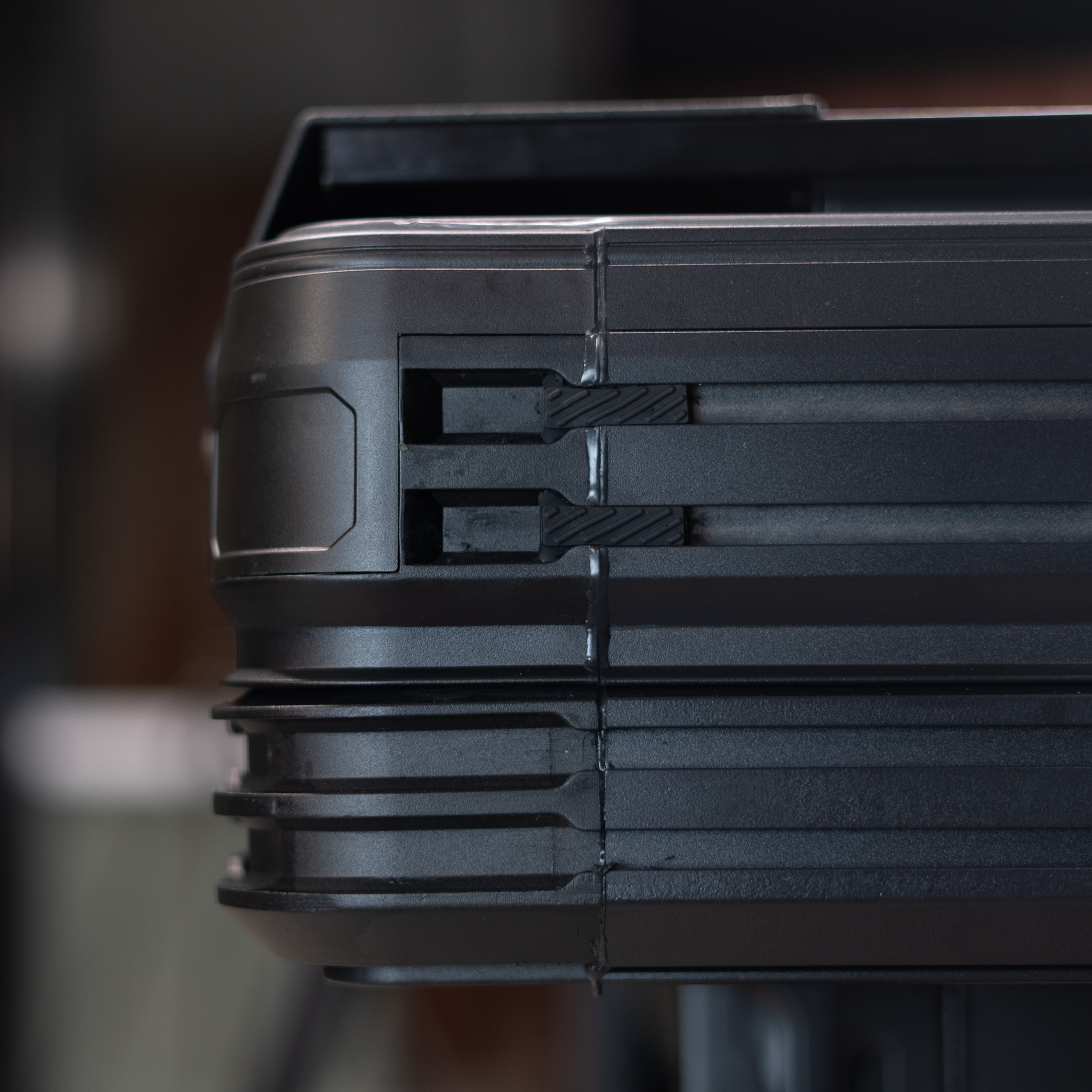

The Revo-X uses what we call a hidden seal system. Rather than sitting exposed at the shell join where it's fully visible from the side, the rubber seal sits recessed behind the lower lip of the extruded alloy top shell. The alloy guards the seal from direct UV exposure, direct rain, and sunlight — which matters because UV is the primary cause of rubber seal degradation over time. An exposed seal sitting in direct Queensland sun ages faster than one that never sees direct sunlight at all.
Beyond UV protection, the geometry of that alloy guard creates a meaningful water path barrier. The alloy overhang extends approximately 10mm past the seal itself, with an outward flare at the edge — so water running off the top shell flicks away from the gap rather than running straight down into it. The gap between the two shell lips when closed is approximately 2mm. For water to reach the seal face, it would have to enter that 2mm gap, then travel 10mm inward along a 45-degree angle and a short vertical rise before reaching the flat perimeter surface where the seal sits.
Compare that to a fully exposed seal where water — whether from rain, a car wash, or driving at speed into weather — can contact the seal edge directly, sit in the top wedge of the rubber, and work its way through any micro-gap under pressure. The hidden seal geometry means water has to work significantly harder to reach the sealing surface at all. This is particularly relevant at highway speeds in rain, where wind-driven water is being forced into any available gap at pressure. It also helps in simpler situations like washing the car or static rain on a parked vehicle.
There's also a wicking benefit. Because the canvas closes neatly inside the shell geometry with no overhang beyond the seal line, there's no fabric edge sitting exposed in that gap that could wick moisture from the outside surface inward along the thread path. This is by design — the pack-up geometry of the Revo-X keeps all canvas material clear of the seal zone when closed.
Hinge geometry and even seal compression
Even with a well-designed seal, uneven compression is the most common reason for localised seal-area moisture. If the top shell doesn't land flat and square on the seal every time, some sections compress fully and others don't. That variability is almost always a function of hinge and frame geometry — specifically, what loads and forces are still active in the closing mechanism as the shell comes down to contact.
On poorly designed clamshell tents, the hinge itself can cause the front edge of the seal to take excessive clamping force, or drag across the rubber as the shell closes — concentrating wear and compression unevenly at that point. X-frame designs have their own version of this problem if the geometry isn't resolved correctly: if the X-frame is still under load when the shell contacts the seal, it can hold the front edge slightly lifted, preventing it from landing flat.
The Revo-X X-frame and gas strut system is specifically designed so that the struts and frame unload their forces in the last 10–15mm of the closing travel. Before the seal makes contact, the mechanism has already transitioned — the shell lines up square, then drops cleanly and evenly onto the seal face without friction, binding, or unresolved frame tension. The only force acting on the seal at that point is gravity, followed by the clamping load from the latches. Four laser-cut, adjustable latches — evenly spaced around the perimeter — then apply consistent compression around the full seal circumference.
On the clunk some owners notice:
A small number of Revo-X owners notice a clunk sound when opening or closing the tent. This is the two shell lips separating from — or seating against — each other as the hidden seal lifts off or drops onto its seating surface. It's a function of the hidden seal geometry and the clean drop of the top shell in the final close. It's not a structural issue — it's the design working as intended. As one owner put it: "makes a slight clunk when setting up and not sure where from." The short answer: it's just where the two shell lips raise off each other at the hidden seal. Give it some use and it becomes a satisfying sound rather than a concerning one.
Storage habits that prevent seal-area moisture building up
The seal area is the part of the tent most affected by poor pack-down habits. Moisture that sits in the seal zone during storage — whether from condensation, wicking, or a minor ingress event — has nowhere to go in a closed tent. It either evaporates slowly (if conditions allow) or it stays damp, encouraging mould growth along the rubber and canvas at the join line.
- Before closing, run a dry cloth along the inside of the seal perimeter — takes thirty seconds and removes the majority of any condensation sitting there
- Check that the rubber seal itself feels dry, not just the canvas above it
- Ensure nothing is caught in the seal line — canvas, mesh, or bedding pressed against the closure point prevents full compression and traps moisture
If the tent will be stored for an extended period after a trip involving rain or heavy condensation, open it at home for a full airing before leaving it closed — the seal area in particular benefits from airflow to dry out completely.
Frequently asked questions
If there was a leak, wouldn't everything inside be wet?
Not necessarily — and this is where people get confused. A minor seal ingress point might only allow a small amount of water in, concentrated at the seal edge, while the rest of the interior stays dry. True large-scale ingress (a failed seam, a cracked panel) would wet the interior broadly. Small seal-edge moisture that correlates with rain at a specific location is worth investigating even if the overall interior seems dry.
Can I add an extra seal or weatherstrip myself?
It's possible but risky without understanding why the original seal isn't performing. Adding a second layer of weatherstrip without addressing the underlying cause — latch tension, debris, canvas bunching — can actually worsen compression by adding height without resolving the pressure gap. Diagnose first. If the original seal is genuinely worn or damaged, contact the manufacturer for a replacement seal rather than layering over it.
Is seal-area moisture normal after 12–18 months of use?
Some increase in condensation at the seal perimeter is normal as a tent beds in and you learn its behaviour in different conditions. What shouldn't increase with age is actual ingress — if water is getting through the seal that wasn't before, check latch tension and seal condition. Rubber does compress and settle over time. Annual seal conditioning and a latch tension check keeps performance consistent.
My tent only gets moisture at the front corners — what does that mean?
Front corners are a common concentration point for two reasons. They're the leading edge when driving — taking the most wind and rain load — and they're often where latch geometry is hardest to get perfectly even. Check latch tension at those corners specifically and inspect the seal rubber for any compression difference compared to the sides. Also check that bedding or gear stored near the front isn't pressing against the canvas at the closure line.
Does mould grow on rubber seals?
Yes — rubber seals in consistently damp environments can develop mould, particularly in the surface texture of the rubber where moisture sits. A wipe with a diluted white vinegar solution followed by a thorough dry-out deals with early-stage mould on rubber. If the seal has significant mould penetration it may need replacement. This is almost always a storage and pack-down hygiene issue rather than a material failure — seals that are dried before pack-up rarely mould.
Is this covered under warranty?
Condensation at the seal perimeter is not a manufacturing defect — it's a physics and usage pattern issue that affects all rooftop tents to varying degrees. Genuine seal ingress due to a manufacturing fault (incorrect seal geometry, defective rubber, latch misalignment from new) would typically be a warranty matter. Ingress resulting from use, debris, or seal wear is a maintenance issue. If you're unsure whether what you're seeing is a defect or a usage pattern, run the hose test and document what you find before contacting your manufacturer.
Still seeing moisture at the seals after checking all of the above?
If you've run the hose test, confirmed it's not ingress, improved ventilation, and the seal-area moisture persists — it's most likely a condensation issue driven by your specific climate and camping conditions. The full fix sits in airflow design, not the seal itself.
- Email: sales@raingersupplyco.com.au
- Revo-X product page: Revo-X 1.3 | Revo-X 1.45
Bottom line: moisture at the seal line is almost always condensation, not a leak. Diagnose with the overnight occupancy test and hose test, then address the cause — ventilation for condensation, seal cleaning and latch tension for ingress. A dry wipe of the seal area before pack-down each morning is the single easiest habit to build in.
