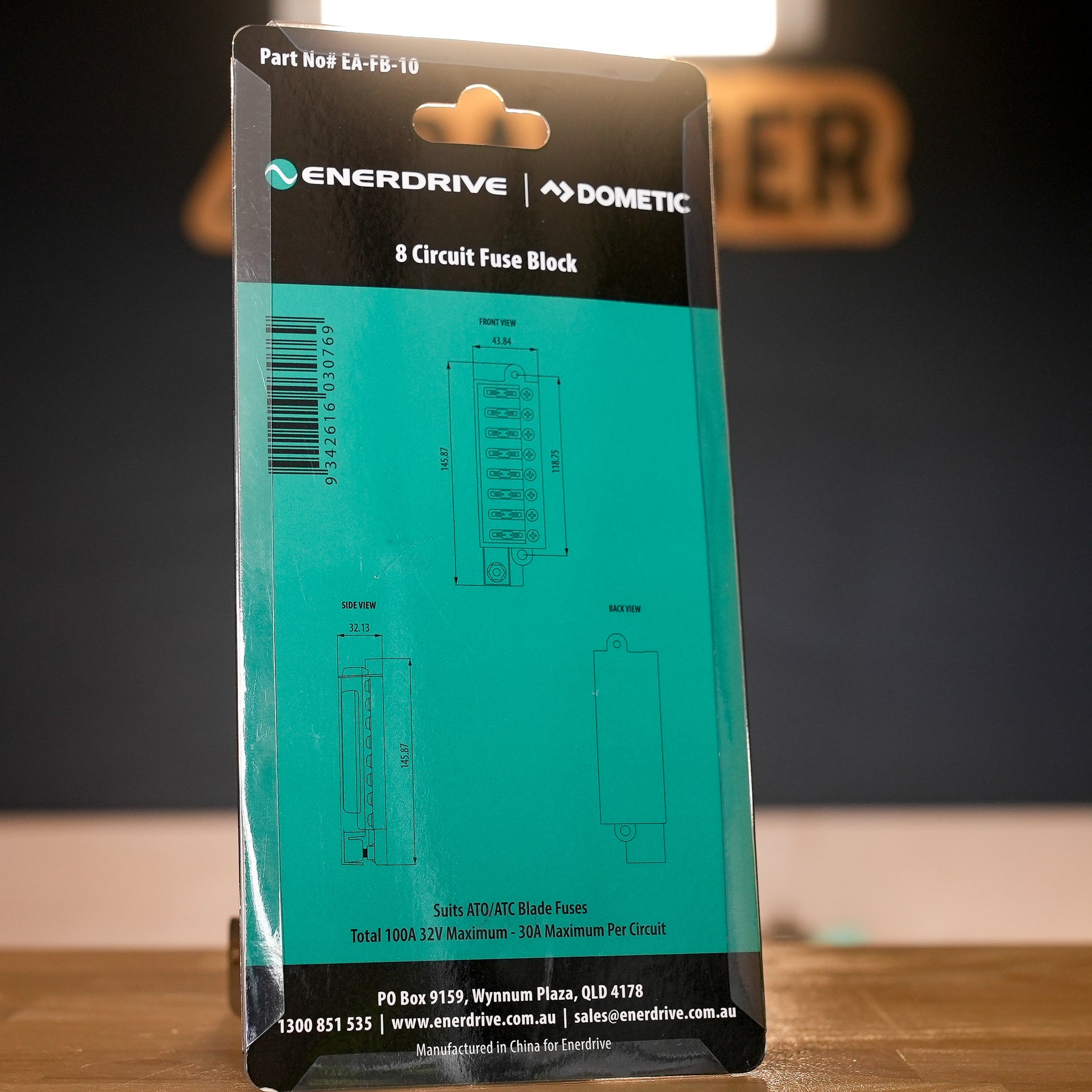

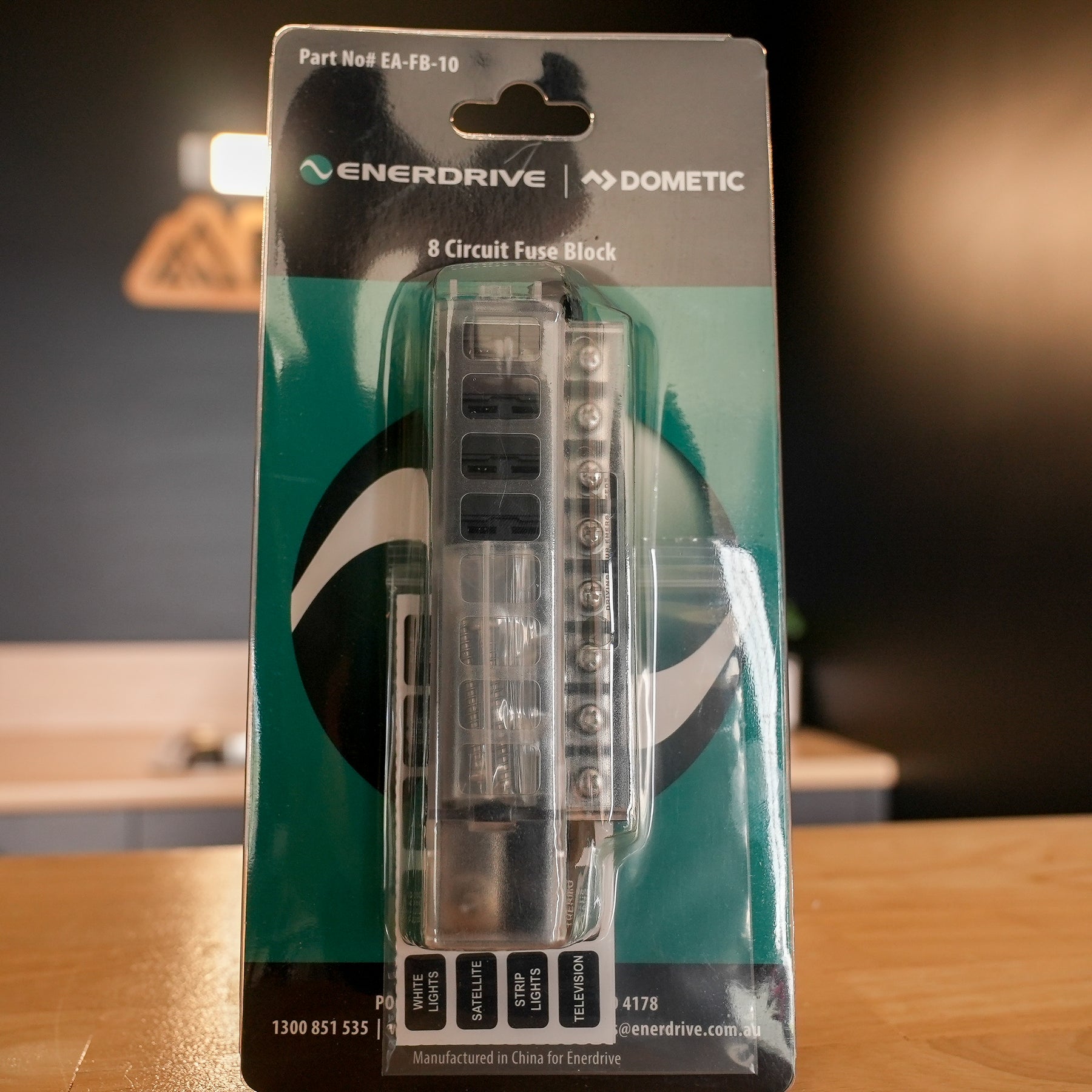

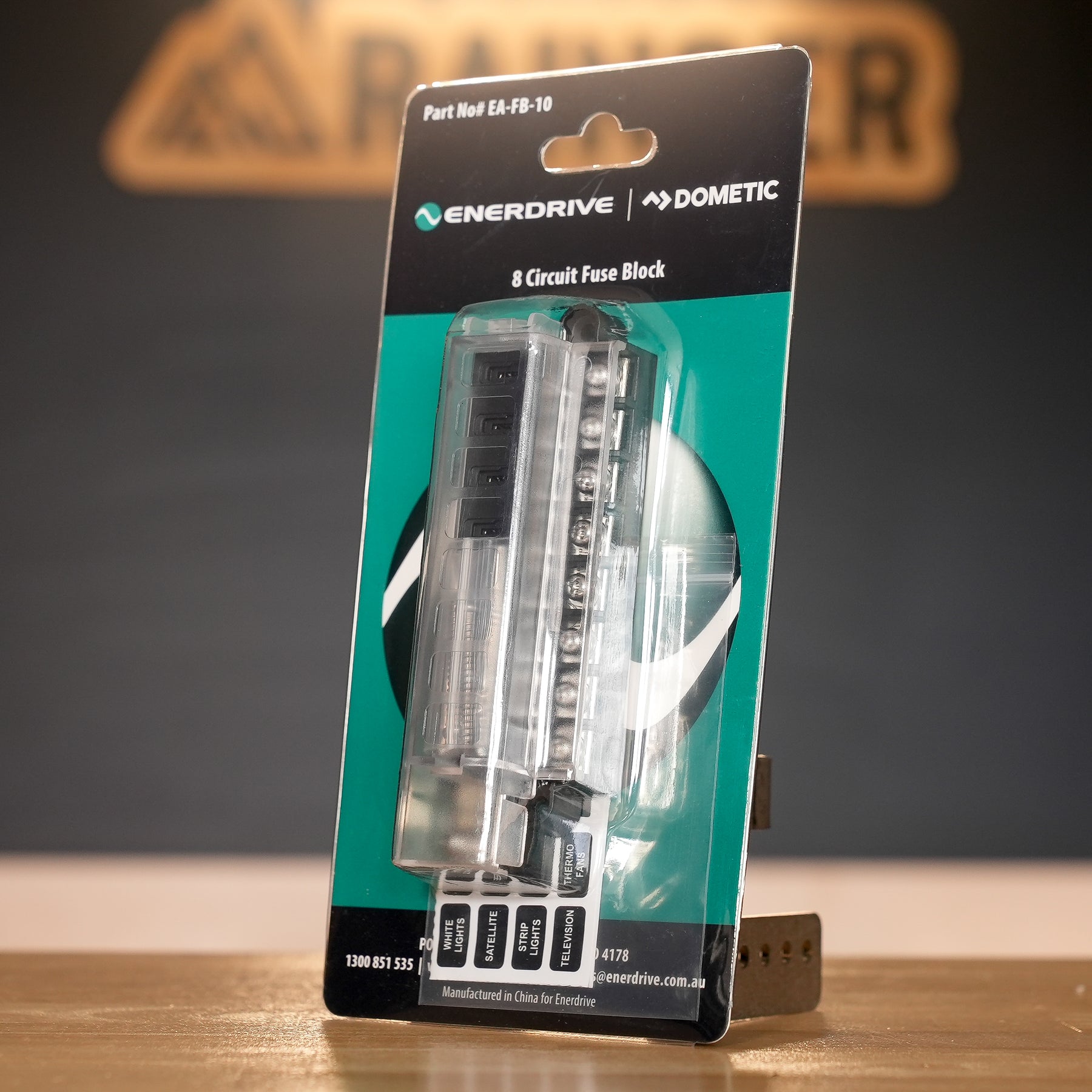

The Enerdrive EA-FB-10 is an 8-way positive fuse block that gives you surface-mount circuit protection for standard ATO / ATC blade fuses in a compact footprint. It is the block most 4WD canopy, camper and dual-battery builds are wired back to - one tidy, labelled, protected distribution point instead of a nest of in-line fuse holders.

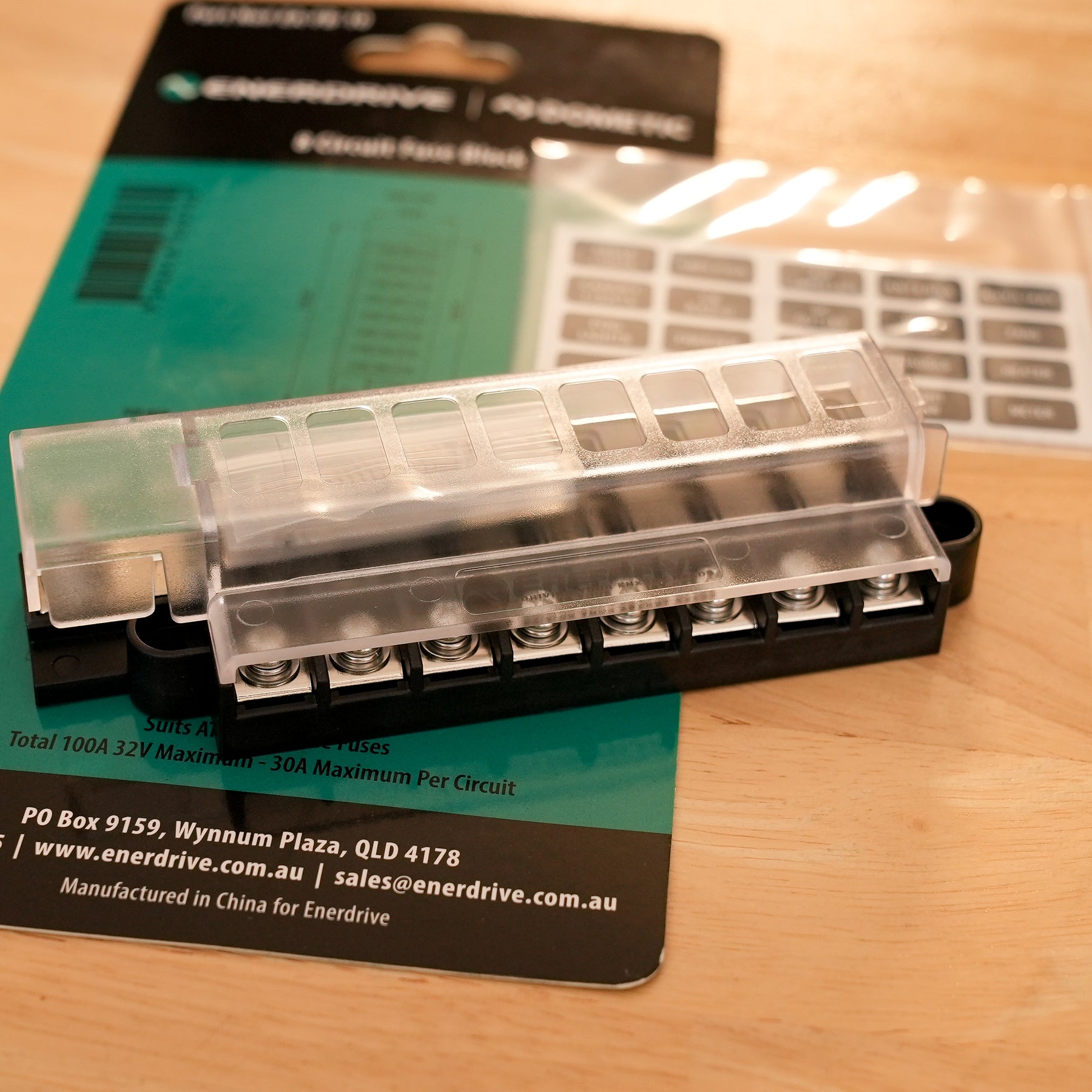

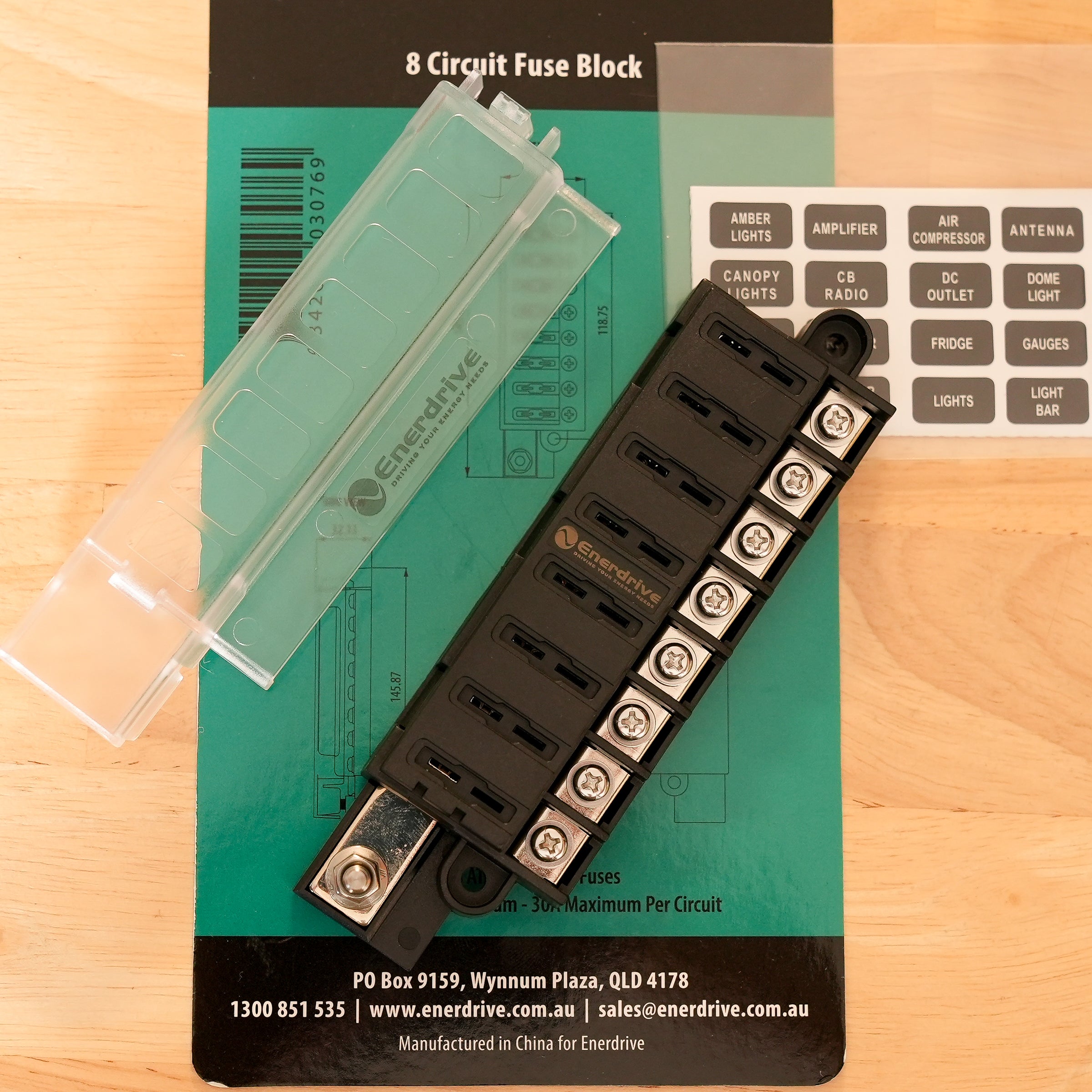

The single-side design means all wiring enters from one side, so it tucks against a panel or into the side of a canopy without wasting depth. The insulating cover clips over the top, and a sheet of pre-printed circuit labels is in the box so the next person to open it can actually tell which circuit is which.
Key features
-
8 positive circuits, ATO / ATC blade fuses
-
Ignition protected when the cover is secure - meets ISO 8846 and SAE J1171 for use in a petrol engine compartment
- Insulating cover meets ABYC / USCG insulation requirements
-
Tin-plated copper buses and fuse clips - built to resist corrosion
- Single-side wire entry to minimise footprint
- Accepts ring or snap-fork type terminals

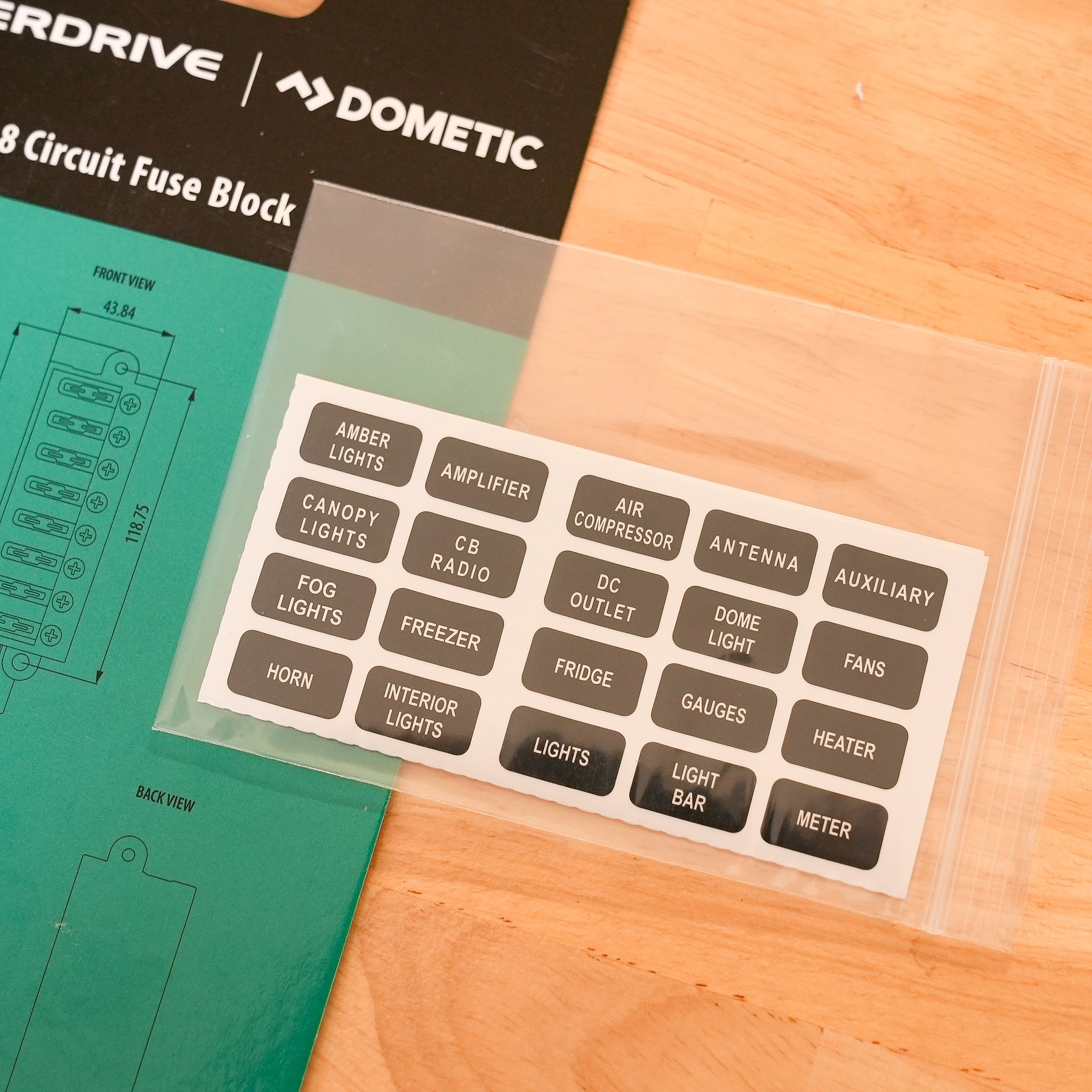

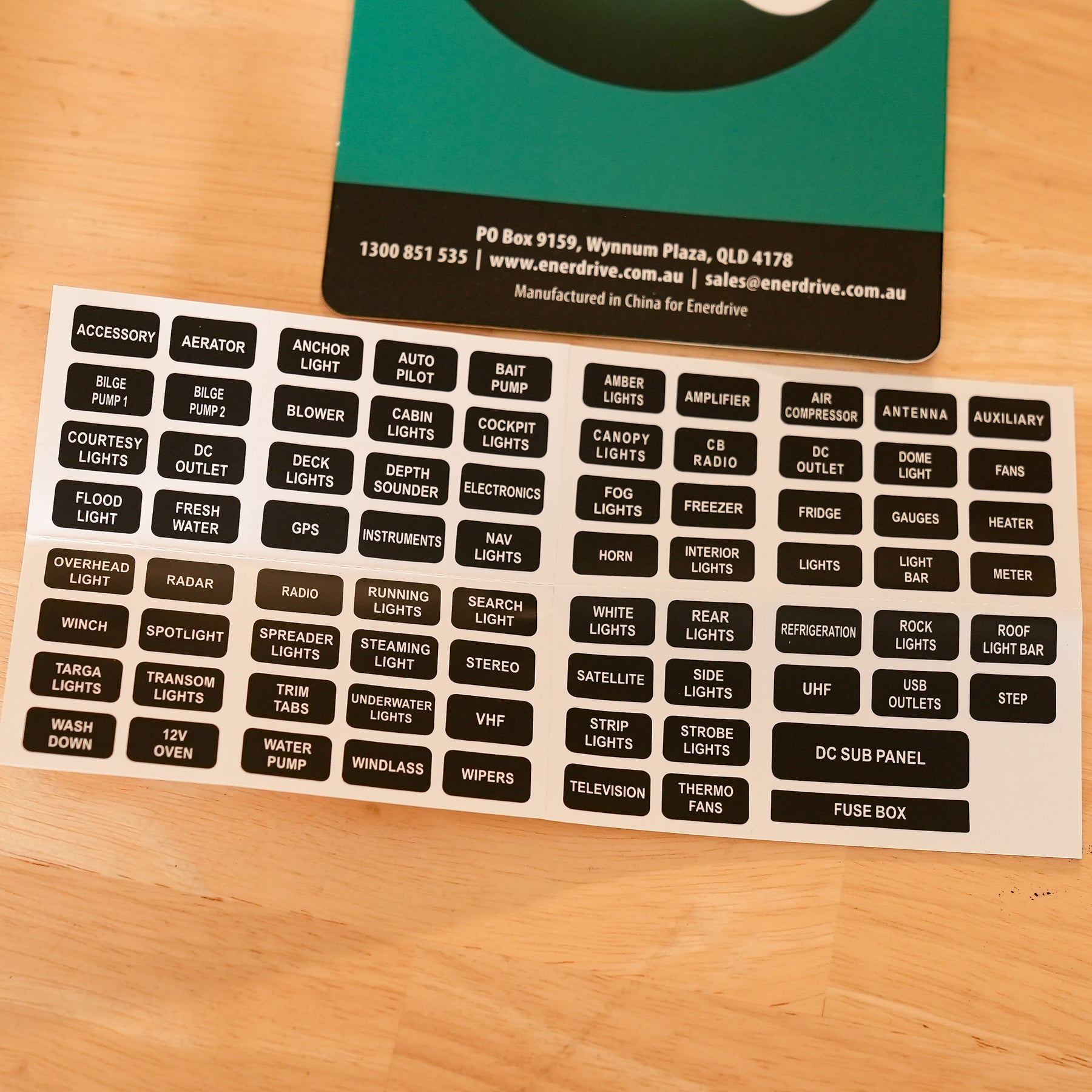

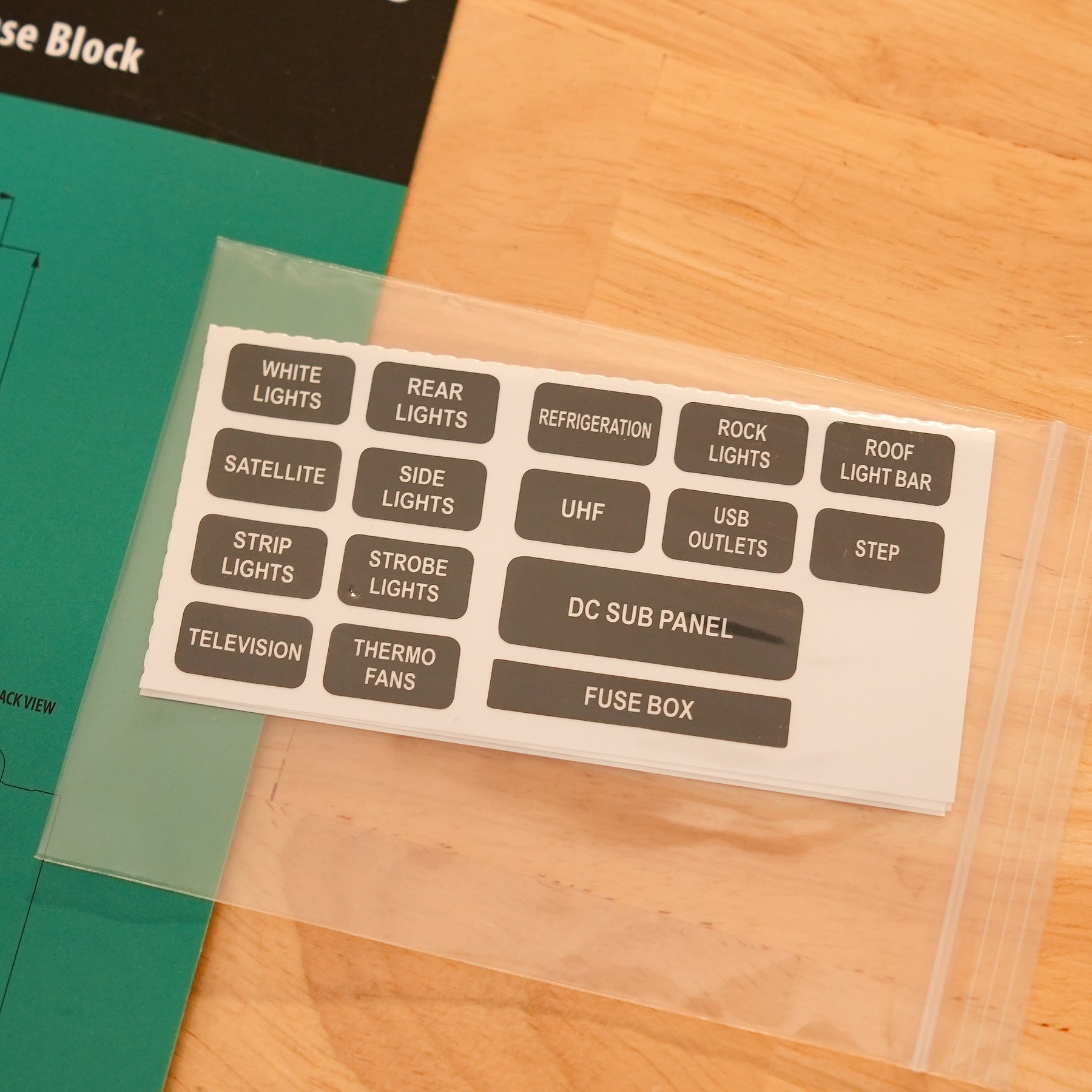

- Includes a selection of pre-printed circuit labels
-
5 year warranty plus lifetime Australian technical support
Please note: fuses are sold separately.
Specs
- Circuits: 8, positive
- Fuse type: ATO / ATC blade
- Cover: included, insulating
- Labels: included, pre-printed selection
- Bus material: tin-plated copper
- Brand: Enerdrive (now Dometic Power Solutions)
- SKU: EA-FB-10
Wiring a smaller build? Enerdrive also make a 4-way version of this block. Adding a battery-terminal fuse block instead? See the Blue Sea BS-5023B ST Blade 4-circuit terminal-mount block.
