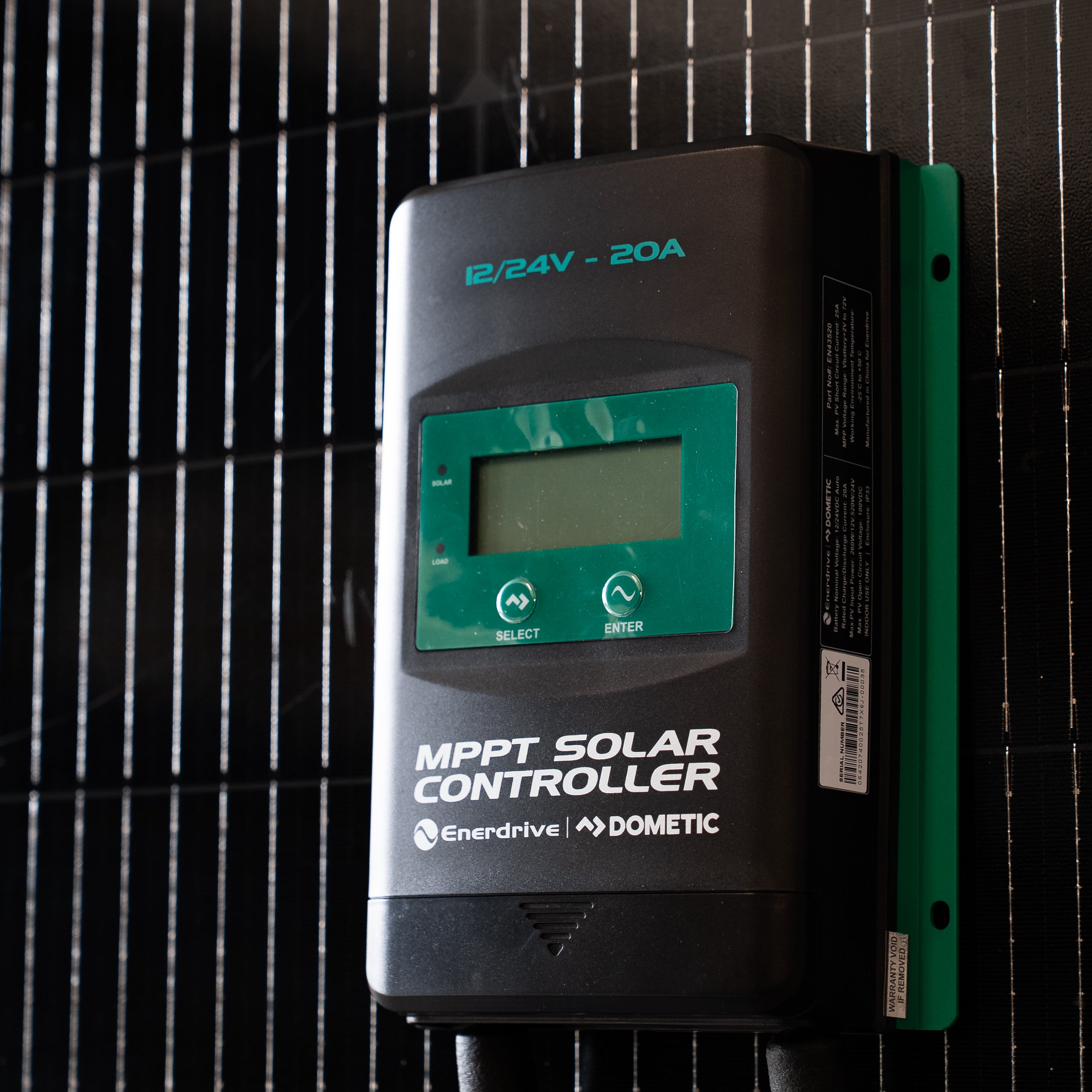

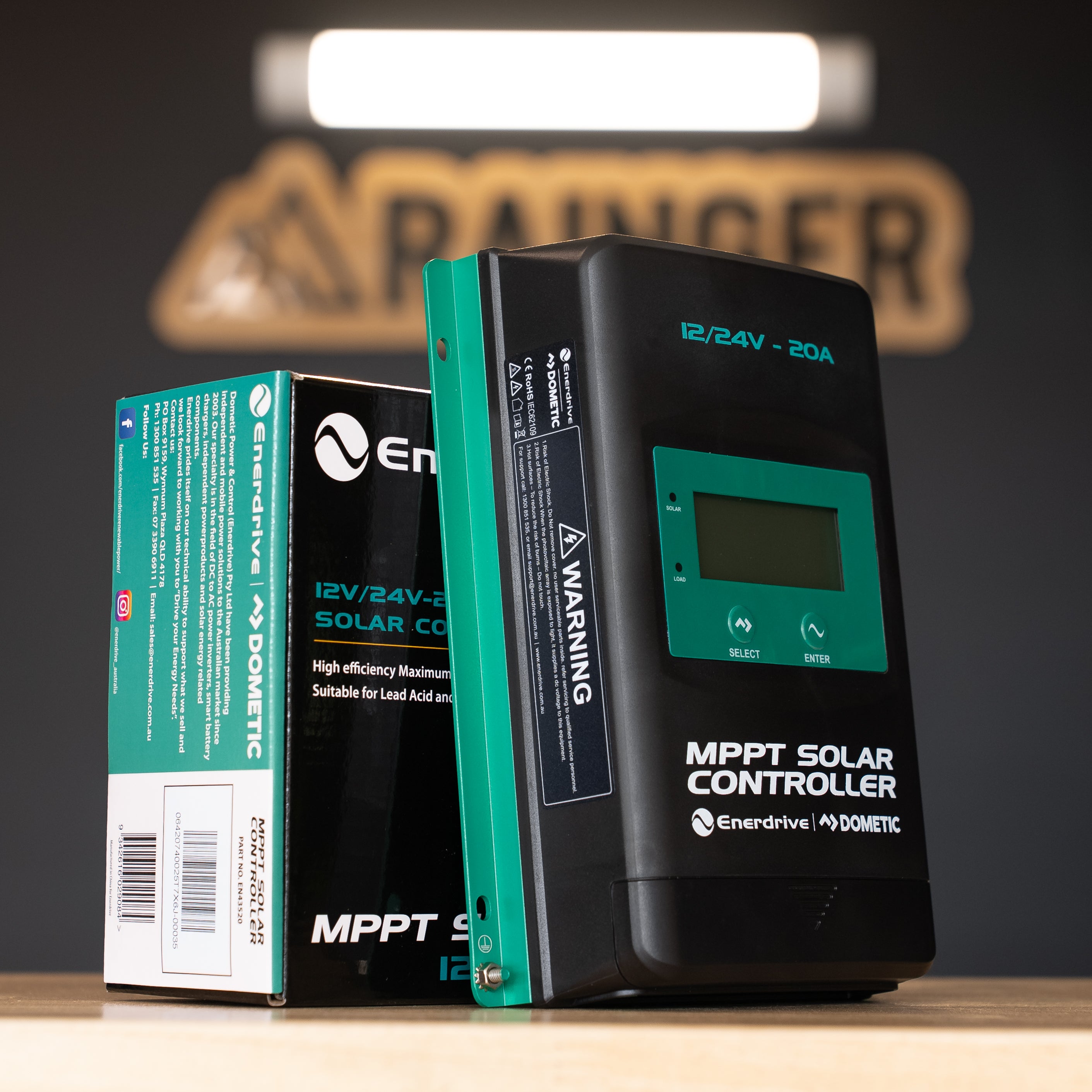

Squeeze more power from every panel. The Enerdrive EN43520 is a compact, lithium-ready 20A MPPT controller with an integrated LCD - suited to 4WD, camper, caravan and marine systems. MPPT actively tracks the true maximum power point, so it harvests more energy than a PWM controller across changing light, heat and shading.
Wide PV input headroom (up to 92V Voc) lets you run modern high-voltage panels on 12V or 24V battery banks. The on-board screen gives instant voltage, current and daily harvest data, and user-selectable charge profiles (including LiFePO4) protect the battery.
Suits dual-battery setups, canopy builds and van conversions where space matters.
Why buy from us
-
Real-world advice, not guesswork - every spec on this page is read off Enerdrive's own manual, not copied from another retailer. Where Enerdrive do not publish a figure, we say so rather than guess.
-
Dispatched from our Queensland warehouse - with tracking, and Express Post available at checkout
-
Genuine Enerdrive stock, backed by the full Australian warranty
-
Australian owned and operated - questions before you buy? Call us on 07 5211 0841
Key features
-
20A MPPT, automatic 12V / 24V detection
- Tracking efficiency up to 99.5%, peak conversion efficiency about 98%
-
PV open-circuit limit: 92V - headroom for modern high-voltage panels
- Recommended PV: 300W at 12V / 600W at 24V, overdrive to 360W / 720W
- Battery types: AGM, Gel, Flooded and Lithium (LiFePO4), user configurable
- Real-time energy stats on the LCD, multiple load work modes
- Common-negative design, RS485 comms port
- Electronic protections: over-voltage, over-temperature (derating), reverse polarity, short-circuit
-
IP33 ingress protection
- 5 year Enerdrive warranty

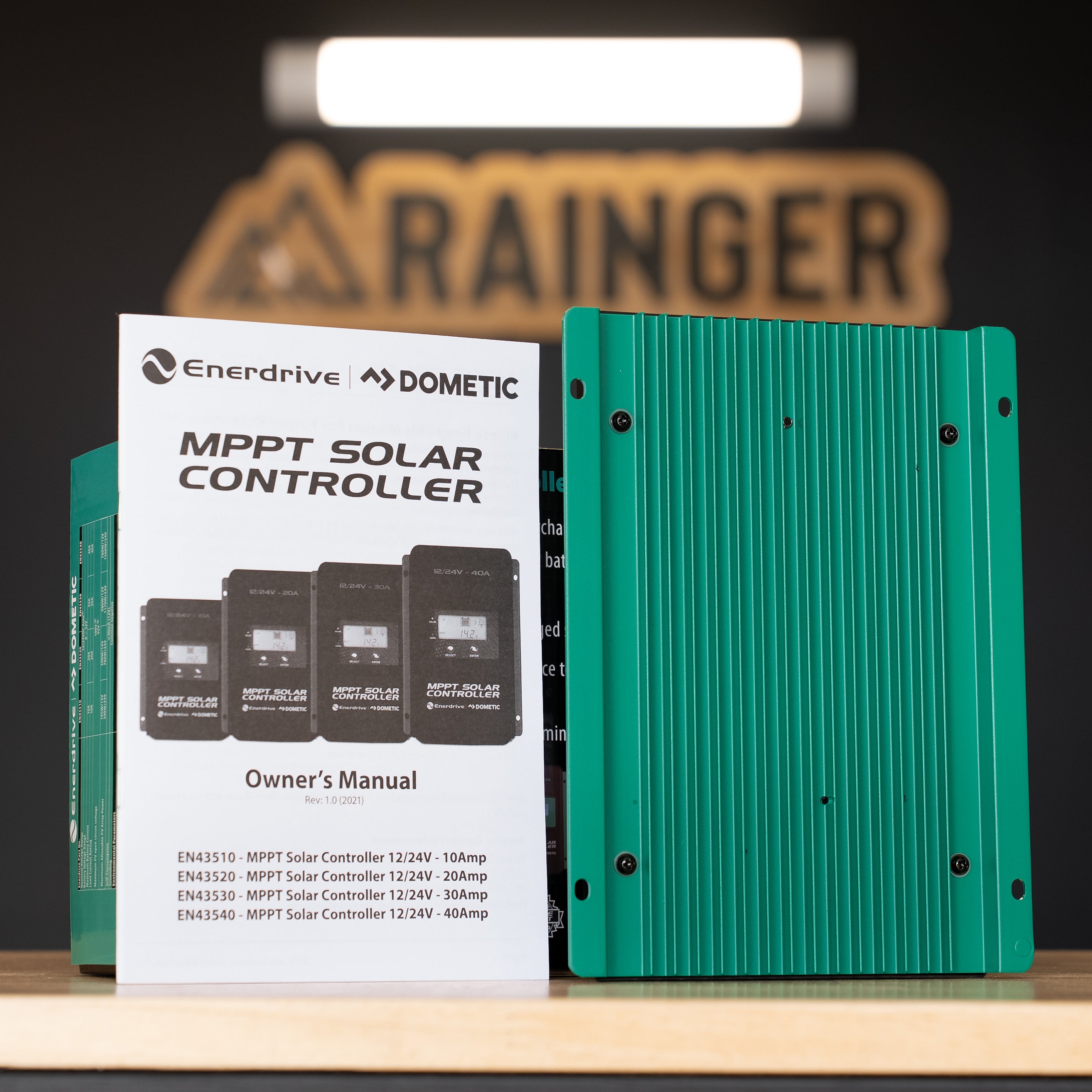

What is in the box
- EN43520 MPPT controller with LCD
- User manual

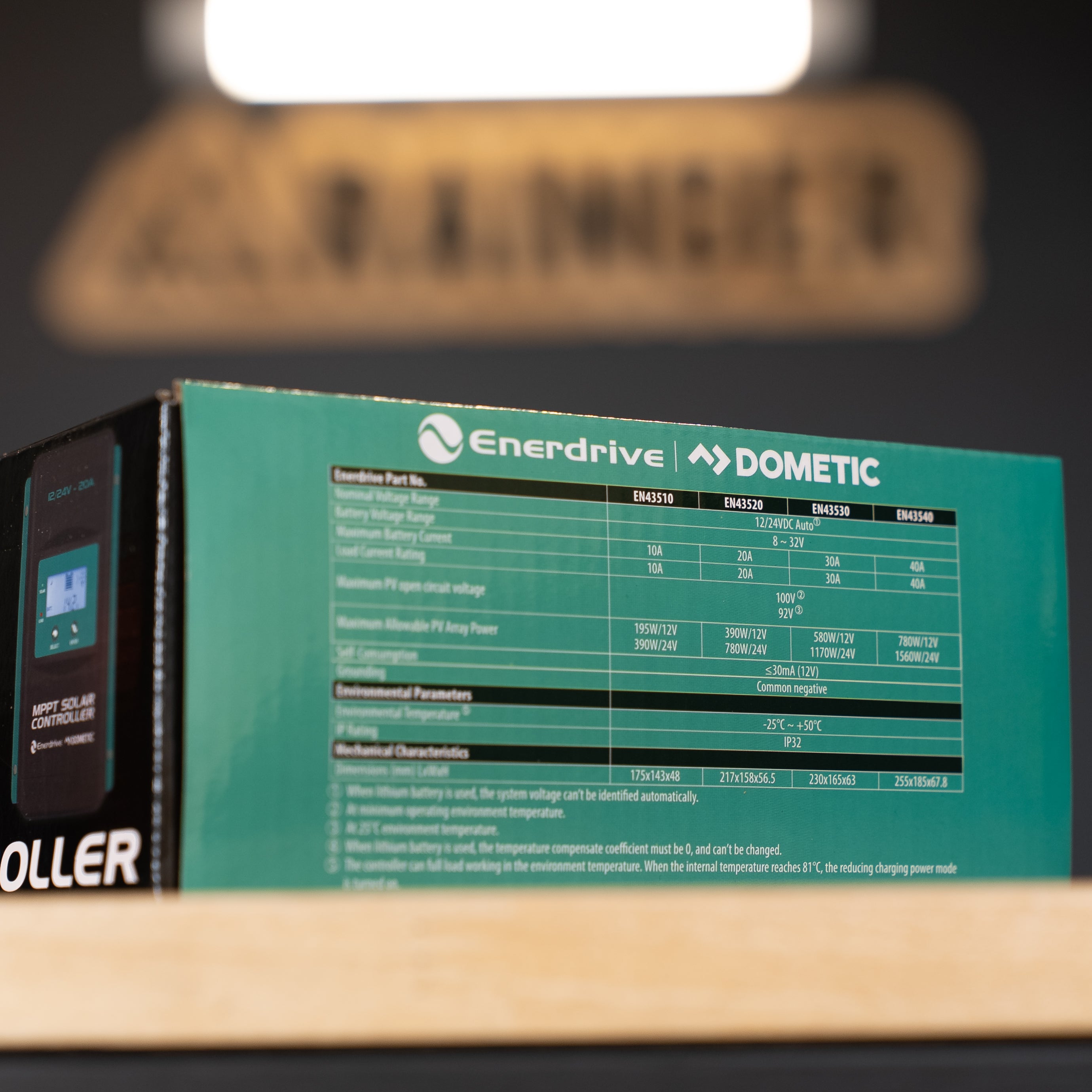

Tech specs
- Model: EN43520
- Max charge / load current: 20A
- System voltage: 12V / 24V automatic
- PV Voc maximum: 92V
- MPPT range: battery voltage + 2V, up to 72V
- Recommended PV: 300W / 600W (12V / 24V), overdrive 360W / 720W
- Peak efficiency: about 98%
- IP rating: IP33
- Unit size (L x W x H): 217 x 158 x 56.5 mm
- Mount pattern: 160 x 149 mm, 5mm holes
- Max cable: 10 AWG (about 6mm2)
