Clean, consolidated circuit protection for modern 12V systems.
The Enerdrive ST Blade Fuse Block – 6 Circuits with Negative Bus and Cover provides a tidy, serviceable way to protect and distribute multiple DC accessory circuits without relying on messy inline fuses. Designed for automotive, caravan, marine and off-grid applications, it combines six fused positive outputs with an integrated negative bus, simplifying installs and fault-finding.
Built with tin-plated copper buses and heavy-duty fuse clips, this fuse block is suited to both permanent and 24-hour circuits, making it ideal for accessories such as lighting, fridges, water pumps, radios, USB outlets and control modules.
Why it works so well in Aussie 12V systems
• 6 fused branch circuits in one compact housing
• Integrated negative bus bar for clean, organised wiring
• Clear protective cover for safety and easy inspection
• Handles continuous and 24-hour accessory circuits
• High-quality tin-plated copper buses for corrosion resistance
• Supplied with label sets for professional installs
Why buy from us
• Real 12V system advice from installers who use this gear
• Fast QLD dispatch with honest stock status
• Safe everyday pricing with bundle options
• Local support before and after the sale
Key features
• 6 × ST blade fuse circuits
• Integrated negative bus bar
• Positive distribution bus with #10-32 stud
• 32V rated – 100A max total, 30A max per circuit
• Accepts ATO® and ATC® fast-acting blade fuses
• Accepts ring or snap-fork terminals

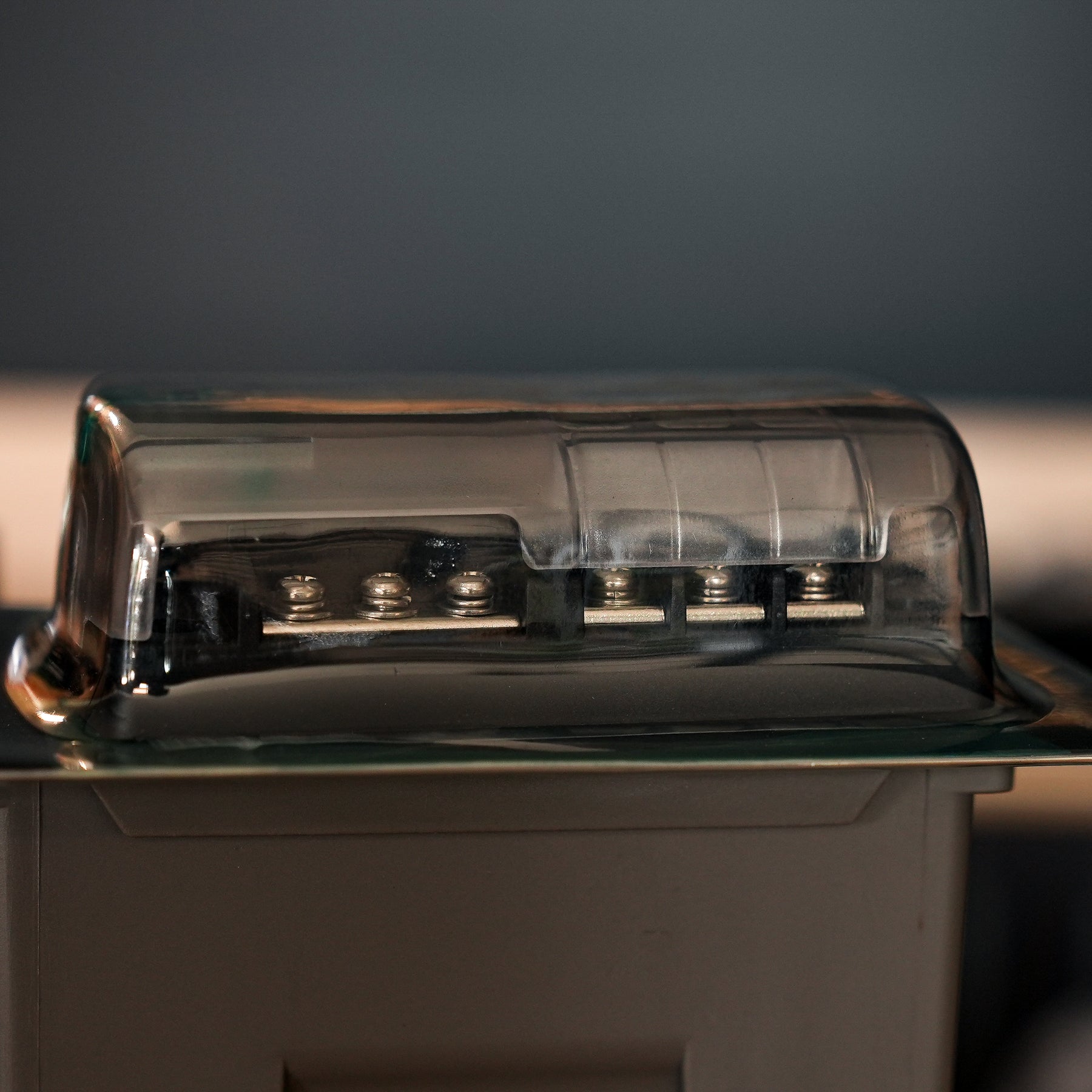

• Clear protective cover included
• Suitable for continuous-duty (24-hour) circuits
Fuses sold separately.
Technical info (quick)
• Fuse type: ATO / ATC blade
• System voltage: Up to 32V DC
• Max current (total): 100A
• Max current (per circuit): 30A
• Negative bus: Integrated
• Bus material: Tin-plated copper
• Mounting: Surface mount
What’s in the box

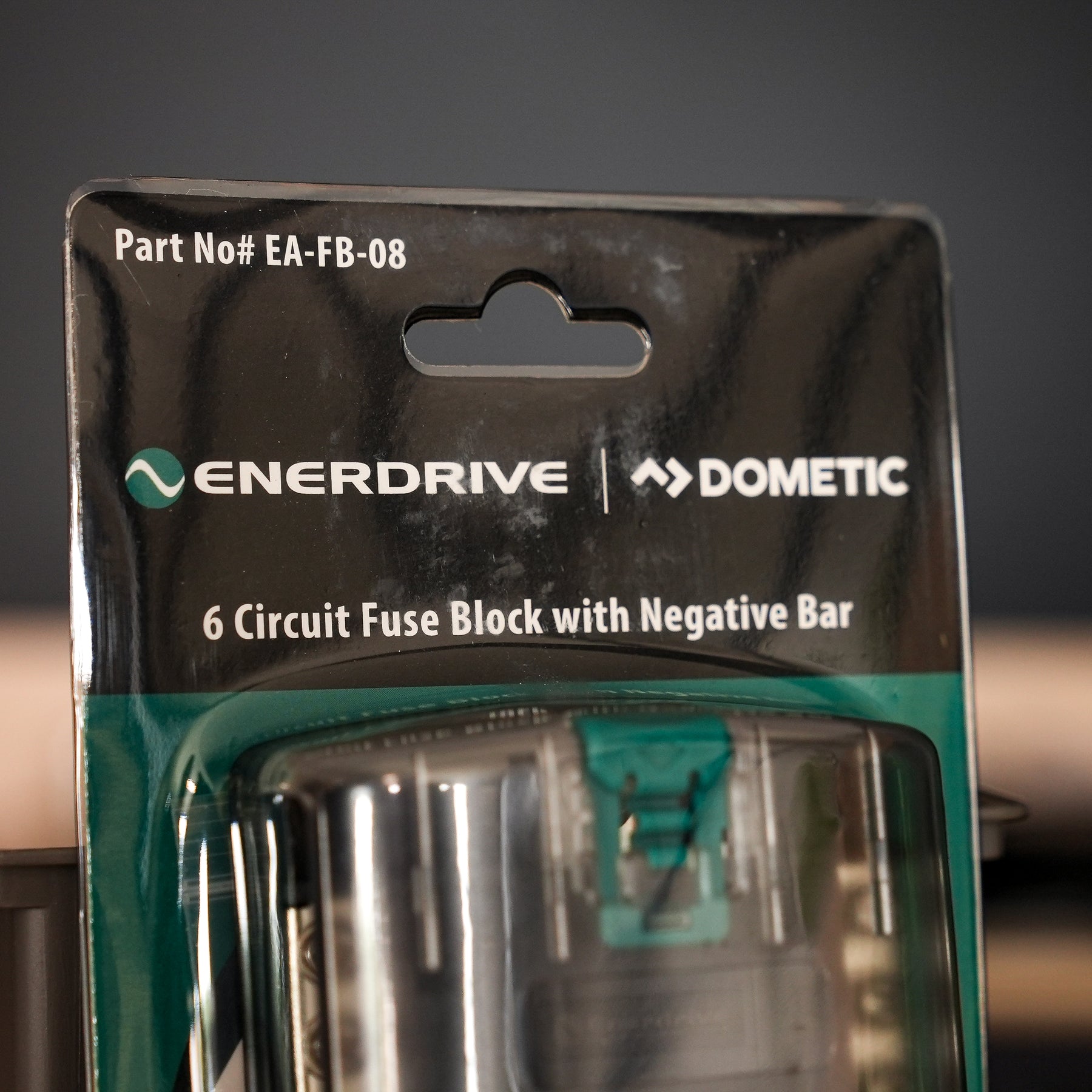

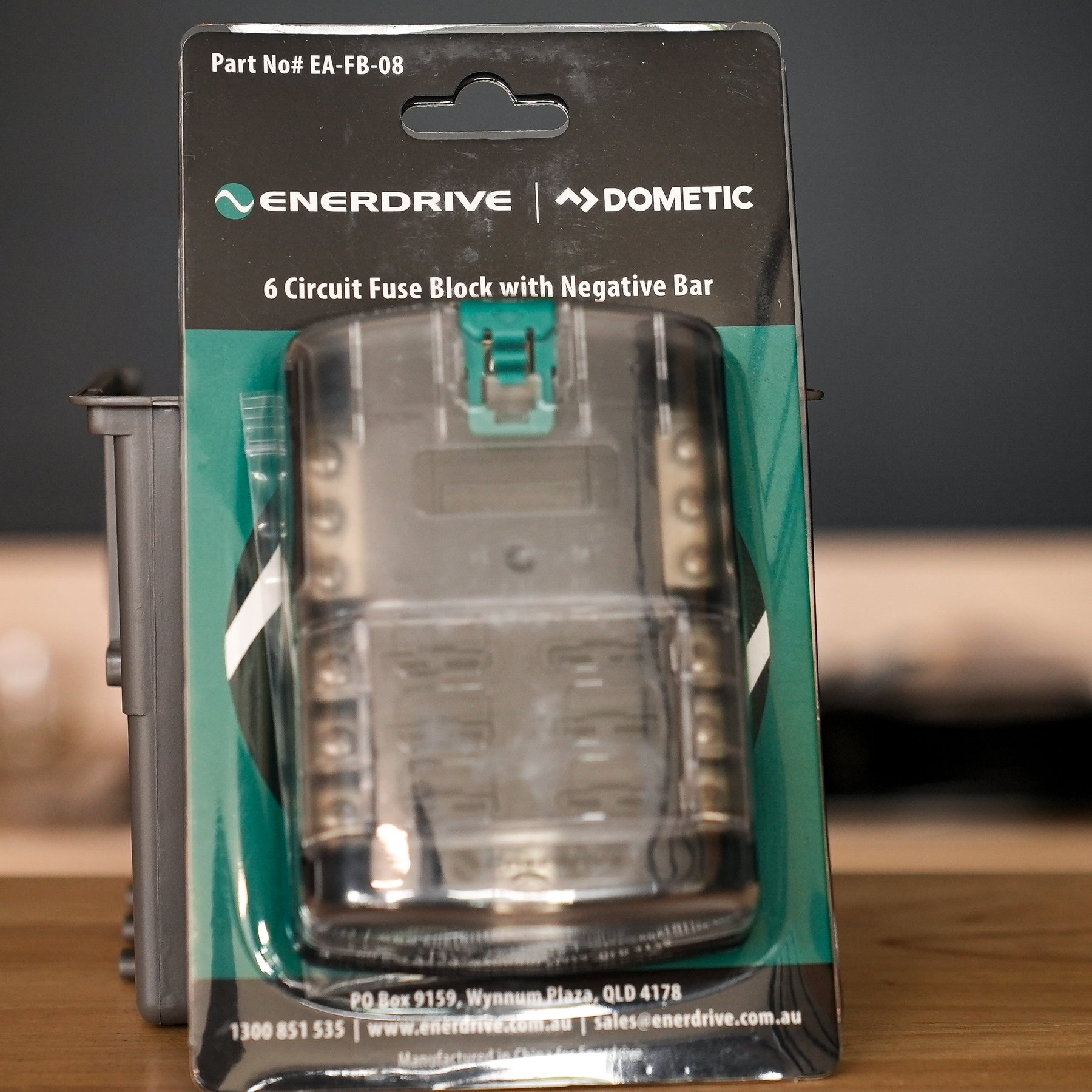

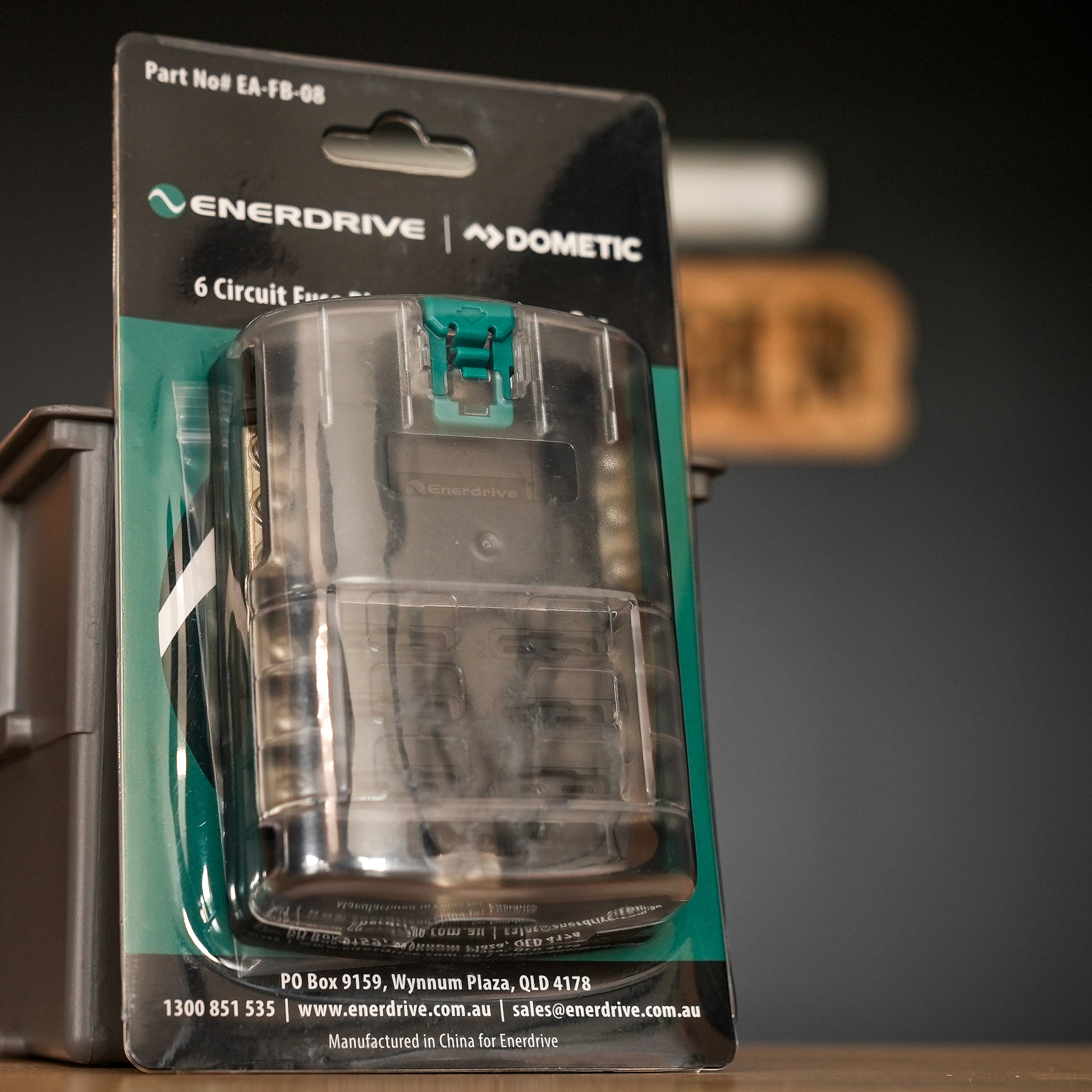

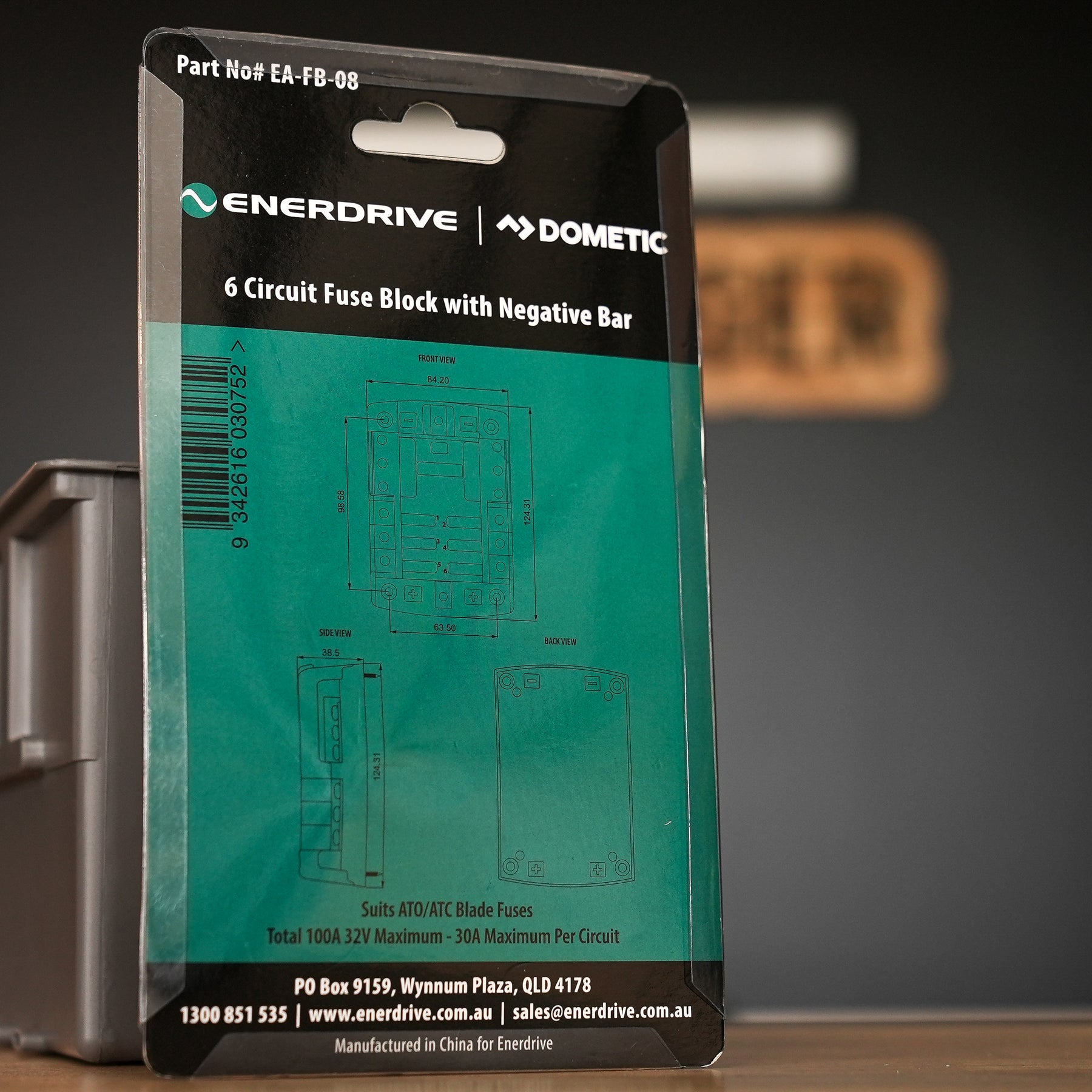

• Enerdrive ST Blade Fuse Block – 6 Circuits
• Clear protective cover
• Two label sets
• Mounting screws
• Retail packaging
