The oversize-head track bolt that is almost impossible to buy in Australia - now in A4 316 marine stainless. A lot of 270 and 180 degree awnings on the market are built around a 13.8mm / 14mm rear mounting slot, and they ship with an oversize-head bolt to suit it. Every Rainger Duo awning does. So do many others, and the same head runs in M8 channel slider systems.
The catch is what happens later. Misplace the bolts that came with your awning, or need a different length for a thicker bracket, and you will struggle to replace them here - almost no Australian supplier stocks an oversize-head M8. That is the gap we are bridging. We import them properly, in A4 316 marine grade, so the industry has somewhere to go.

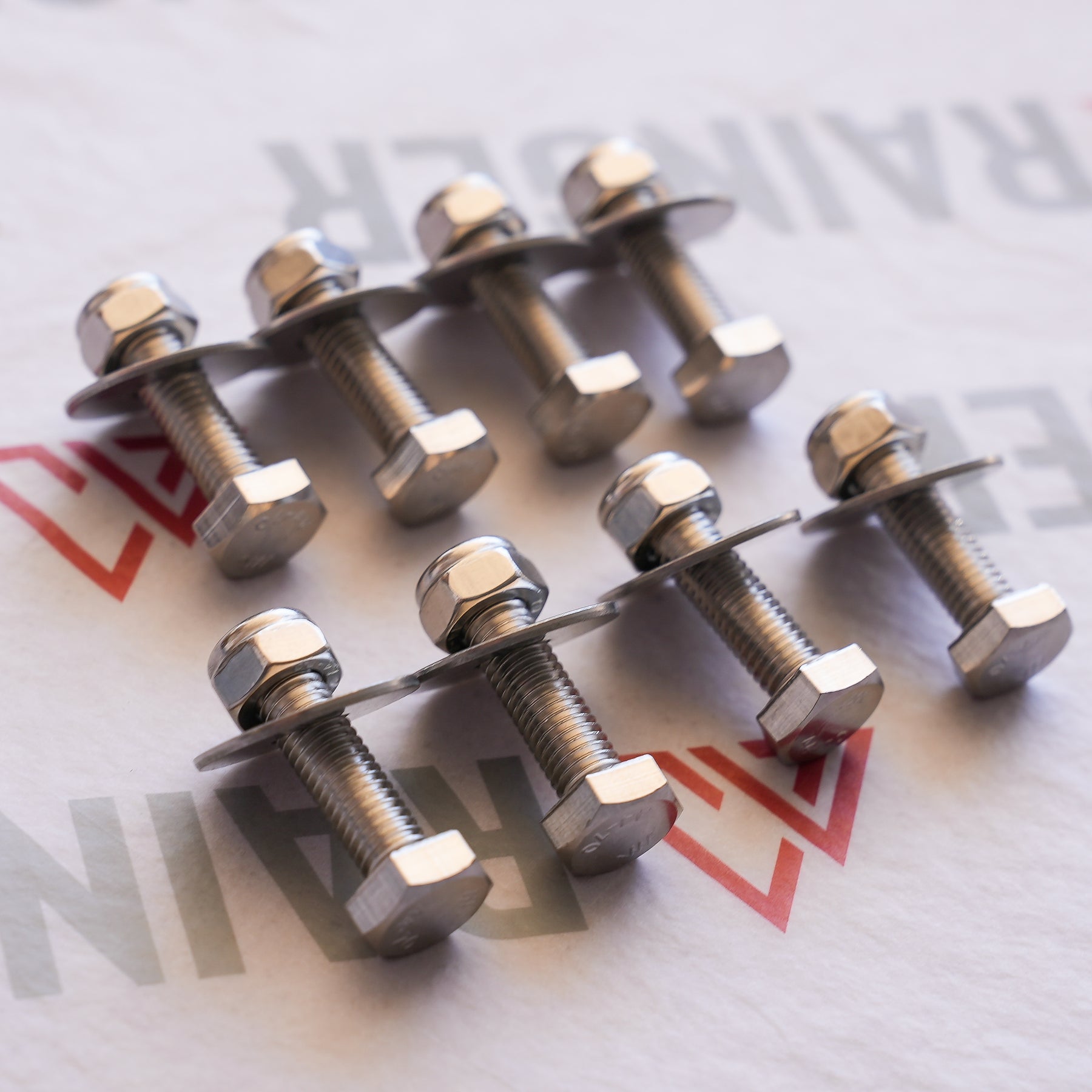

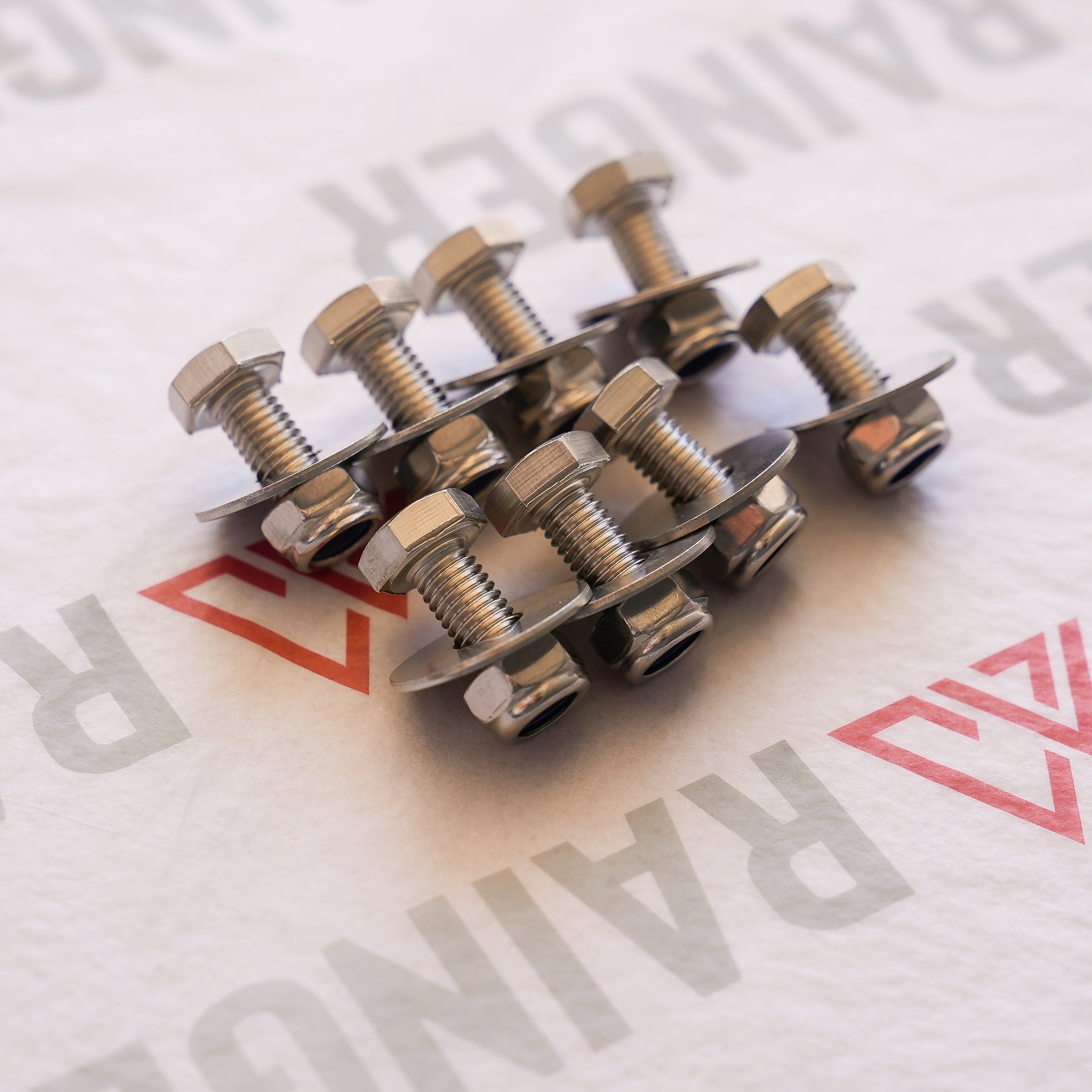

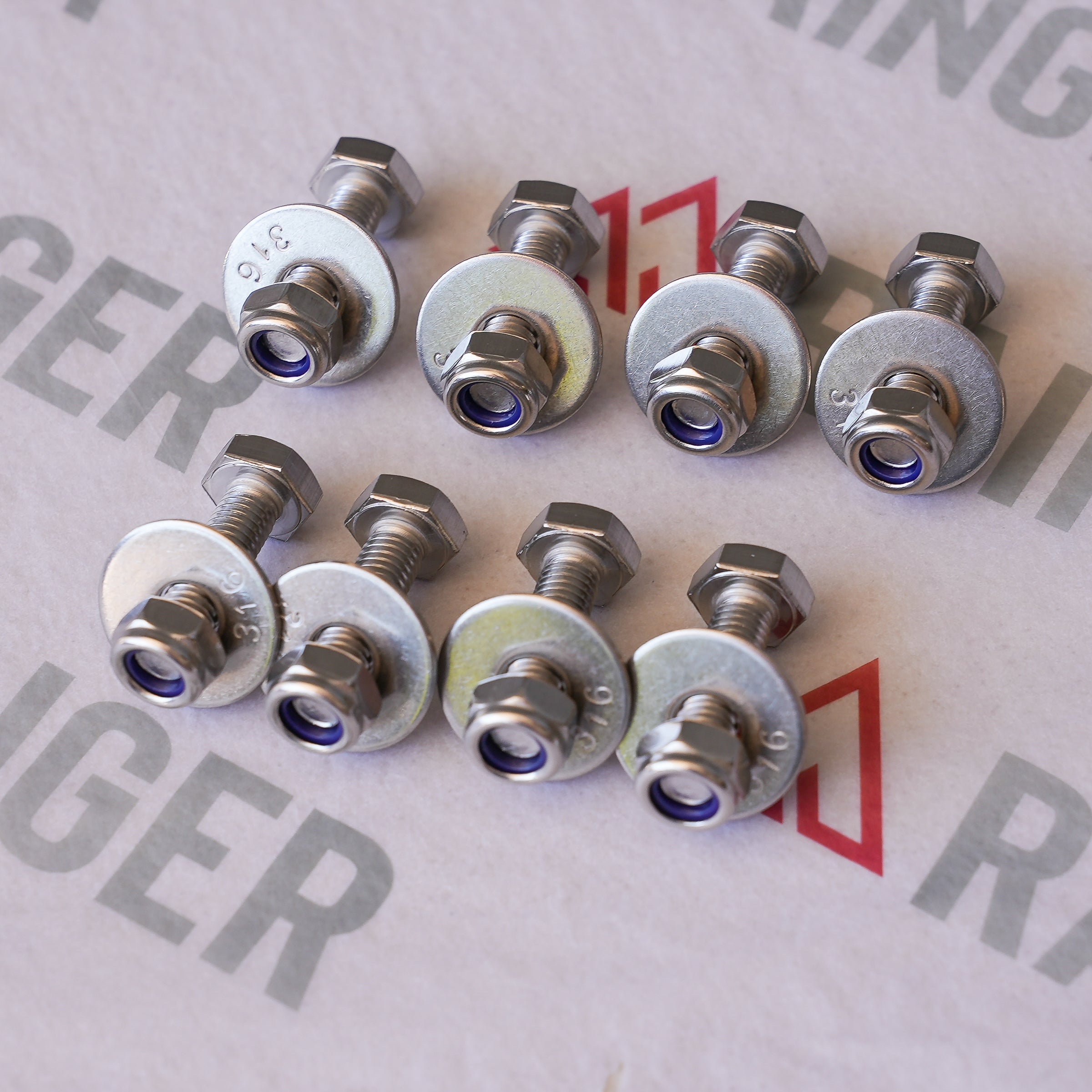

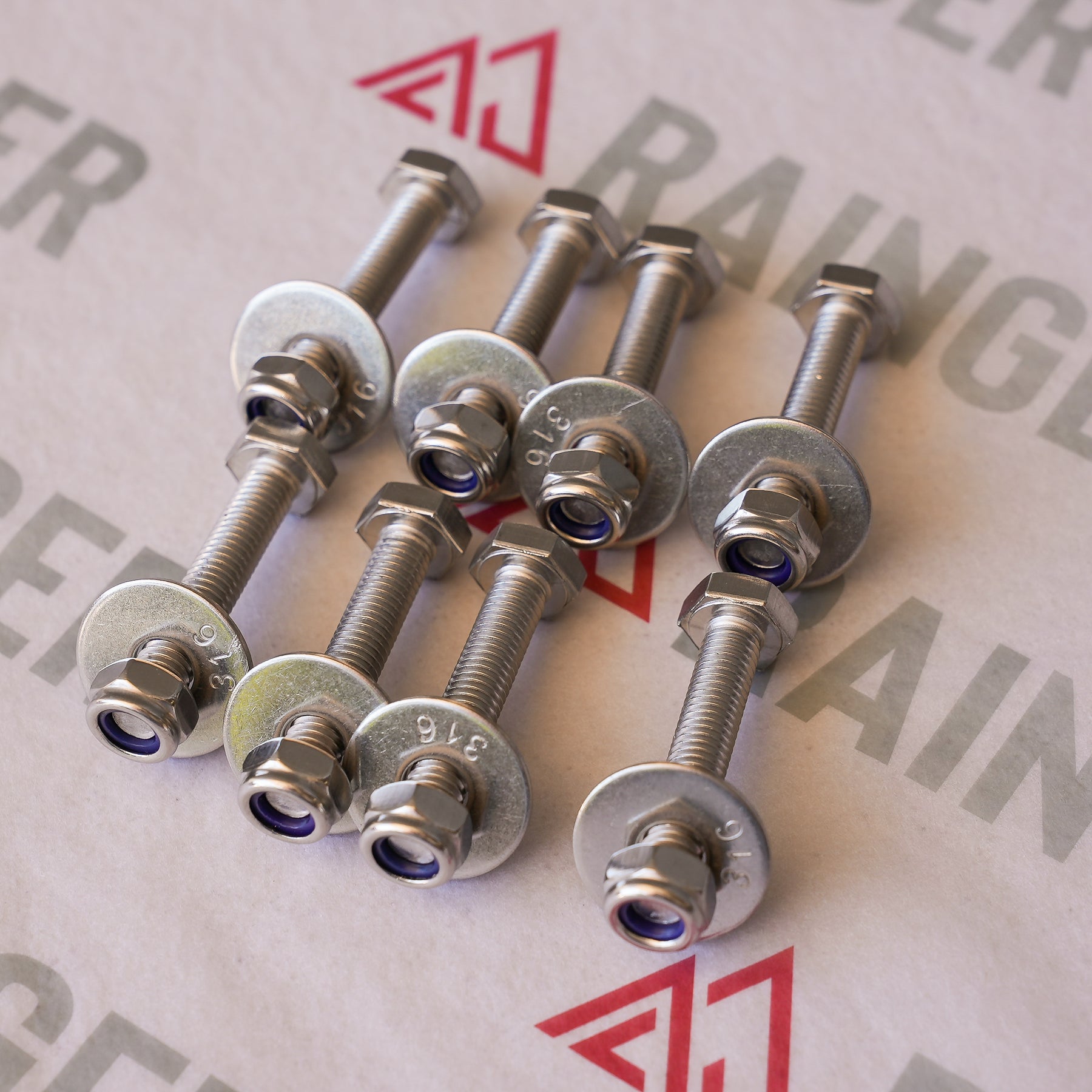

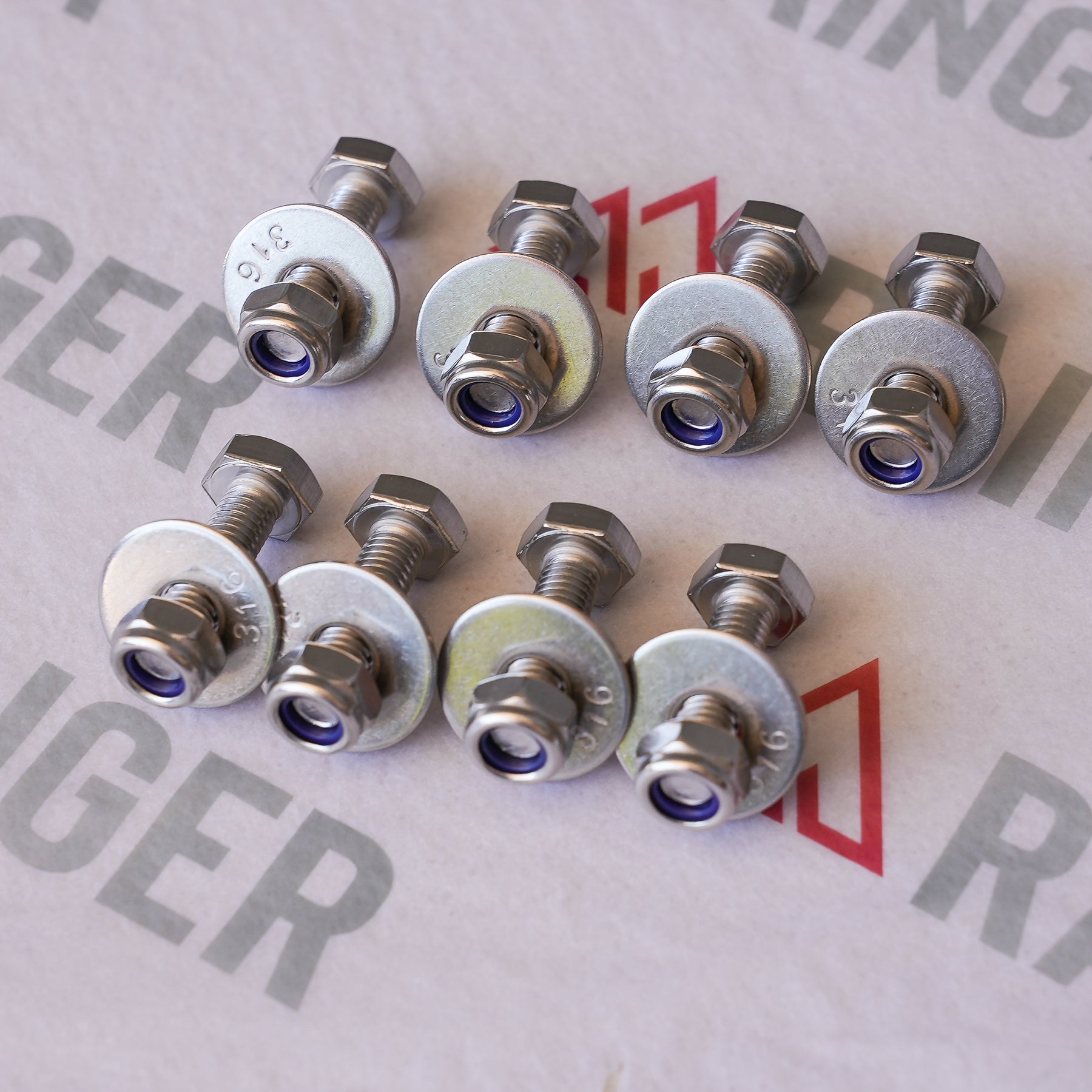

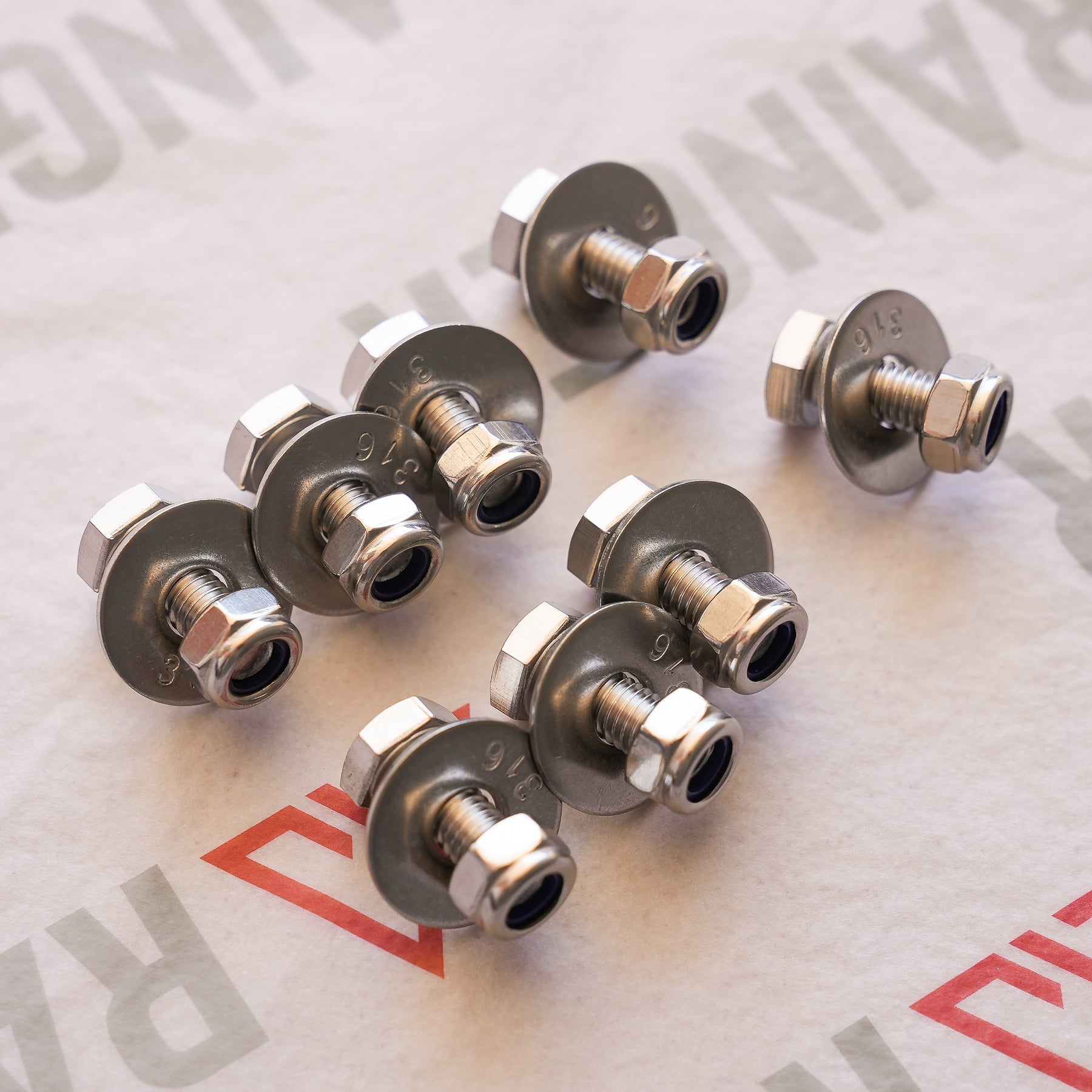

Each bolt comes complete with an A4 316 stainless nyloc nut and a stainless mudguard washer. The large washer spreads the load properly over brackets and thin sheet, and the nyloc will not vibrate loose on corrugations.
Why the odd 13.8mm head?
Every off-the-shelf M8 hex sold here has a 13.0mm head. In a 14mm awning track that leaves a full millimetre of play. It still works - plenty of people run a standard M8 and never have a problem - but you have to hold the head square as you tighten, and if you overtighten it the head can turn in the track.

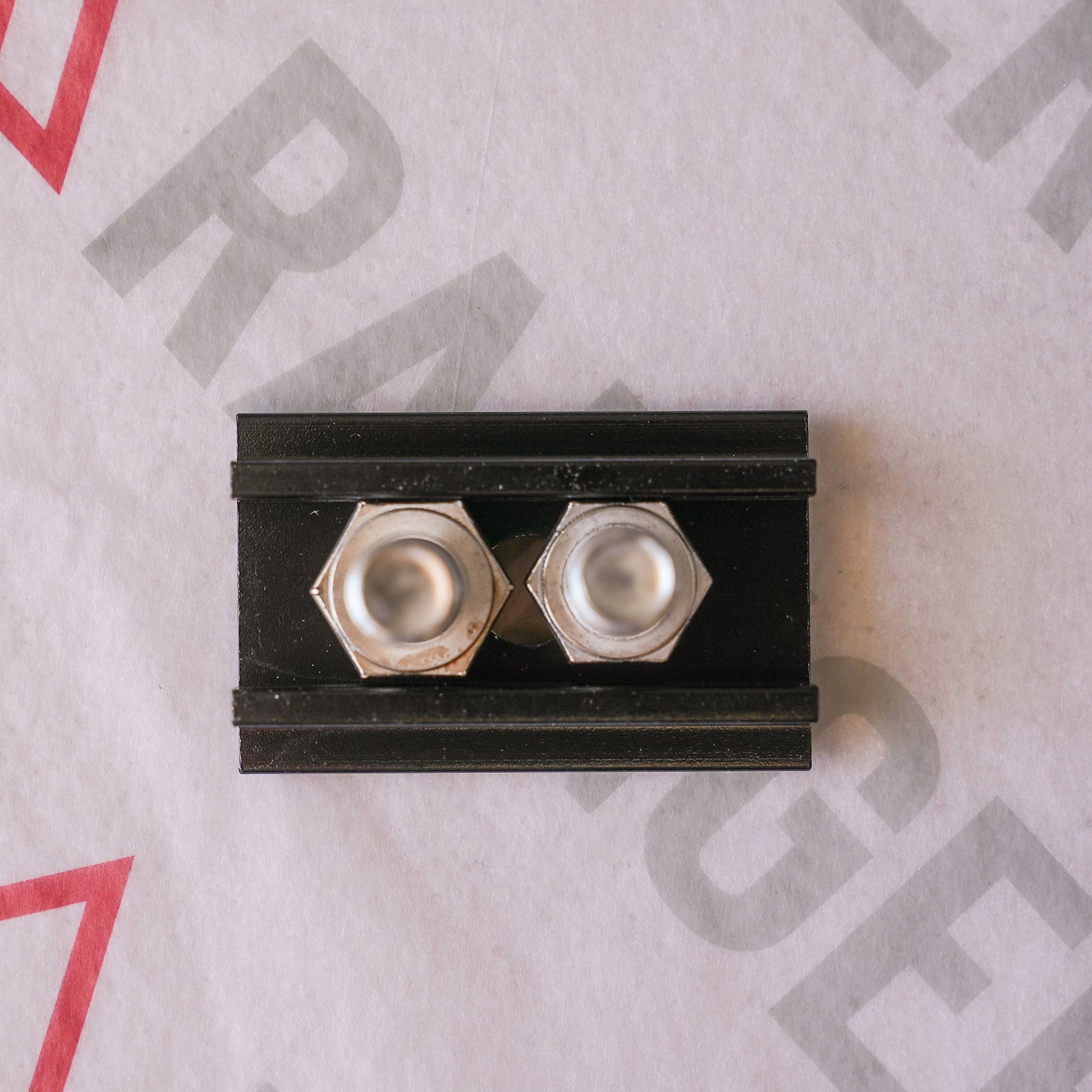

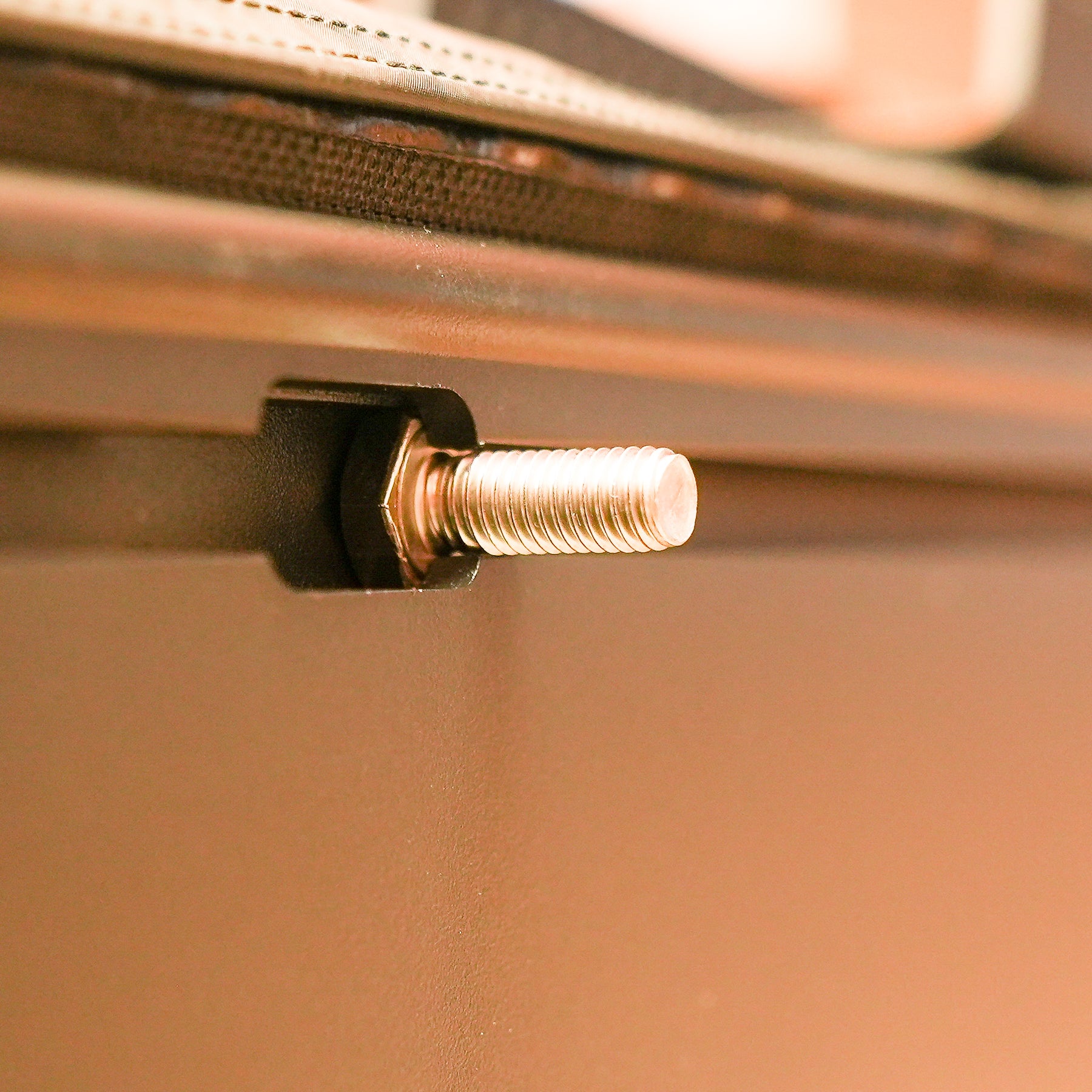

The 13.8mm head fills the channel with just enough clearance to slide. It locks square like a T-bolt, the bigger head simply holds better across the slot, and it tightens with one spanner. That is the whole trick, and that 0.8 of a millimetre is why no local bolt shop has them.
Why this kit
- Oversize 13.8mm head - suits the 13.8mm / 14mm awning rear slot used across much of the industry, plus M8 channel sliders
- Larger head bears across more of the slot, so it holds better than a standard 13.0mm hex
- Full A4 316 marine-grade stainless - bolt, nyloc nut AND mudguard washer
- M8 x 1.25 thread - the standard pitch across 4WD and touring accessories
- The replacement for awning bolts you have lost, or the different length you cannot source locally
- 8-piece kits - real quantities for real installs

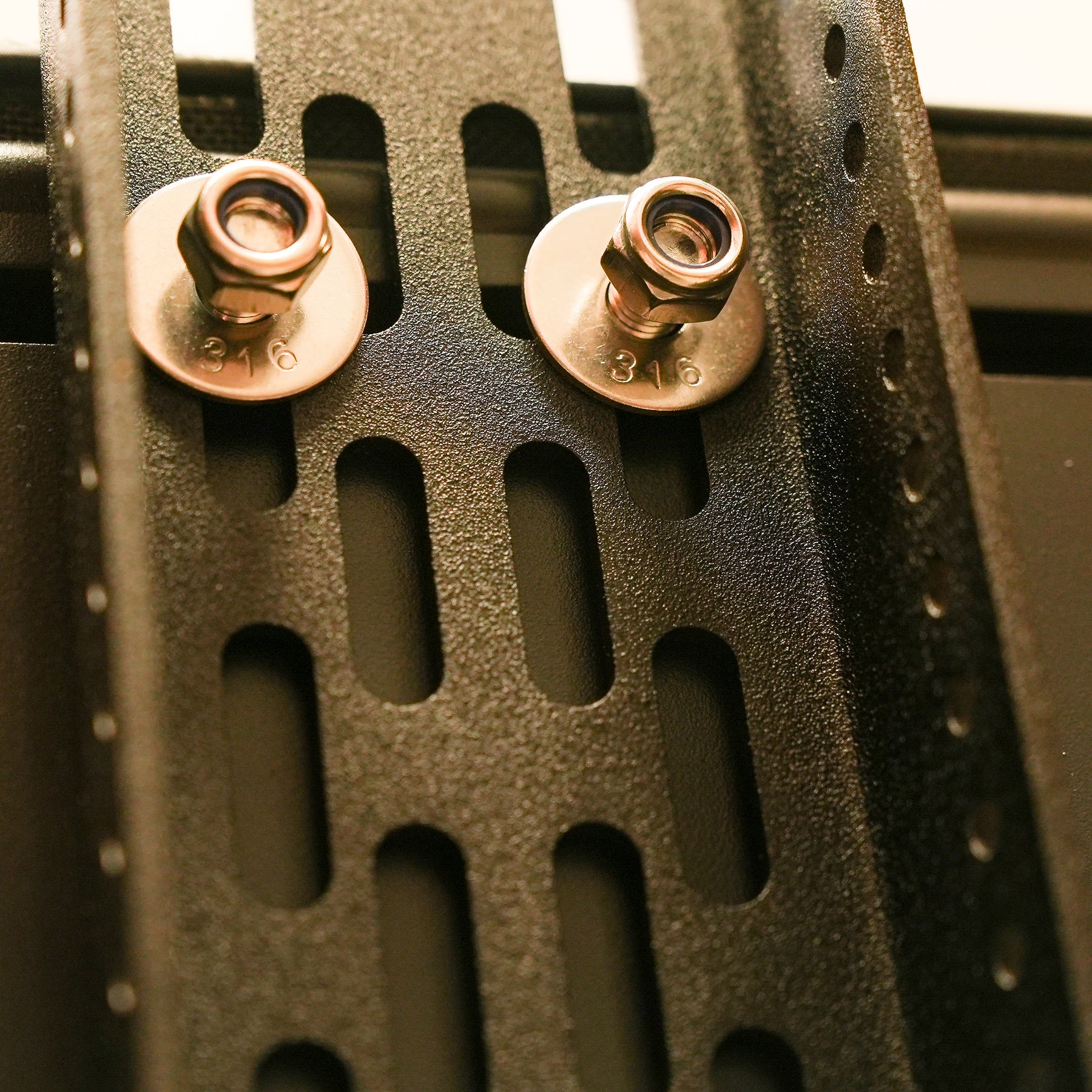

- Suits awning wall brackets, accessory mounts, light bars, shovel holders and custom fit-outs off the awning channel
Choose your length (all packs = 8 bolts + 8 nyloc nuts + 8 mudguard washers)
-

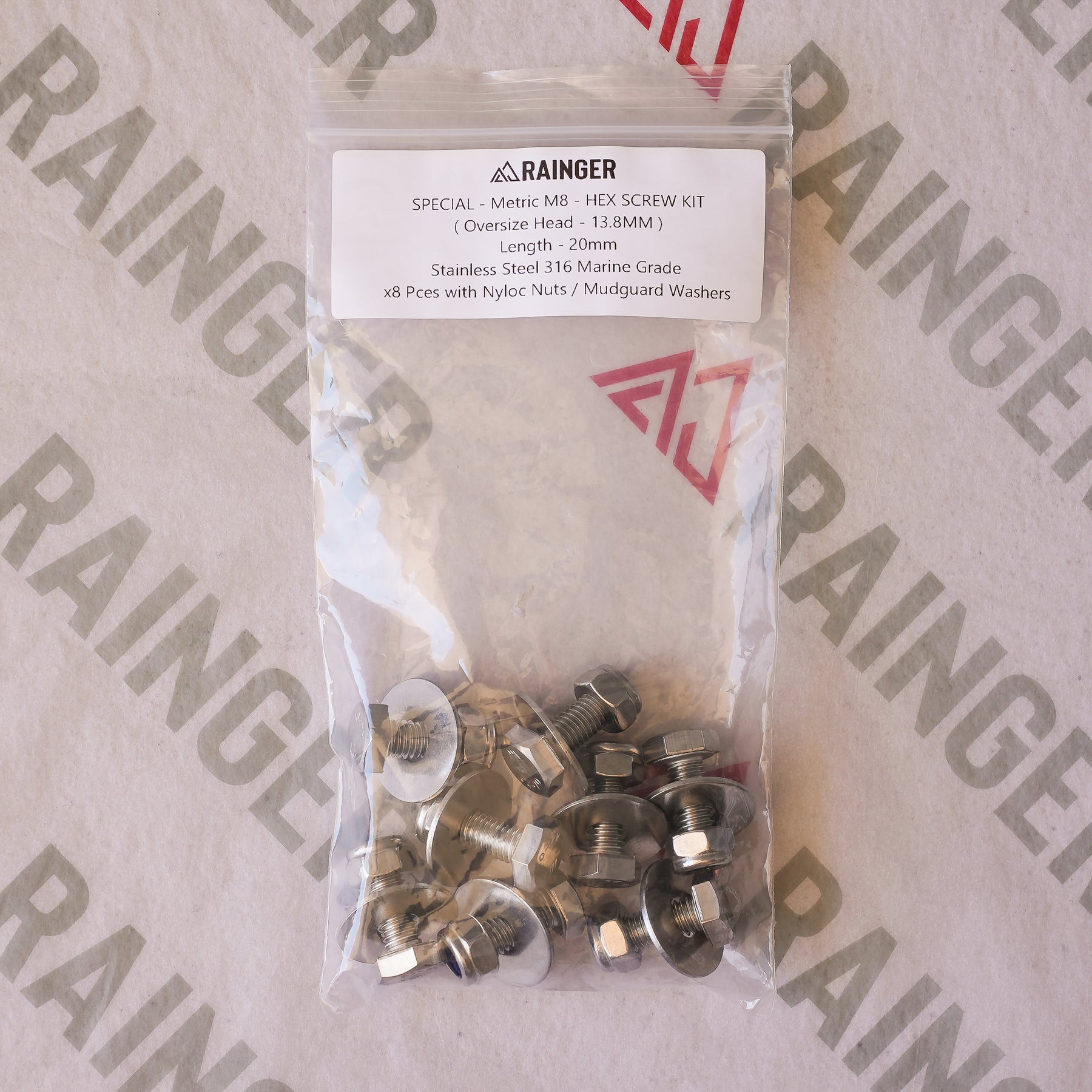

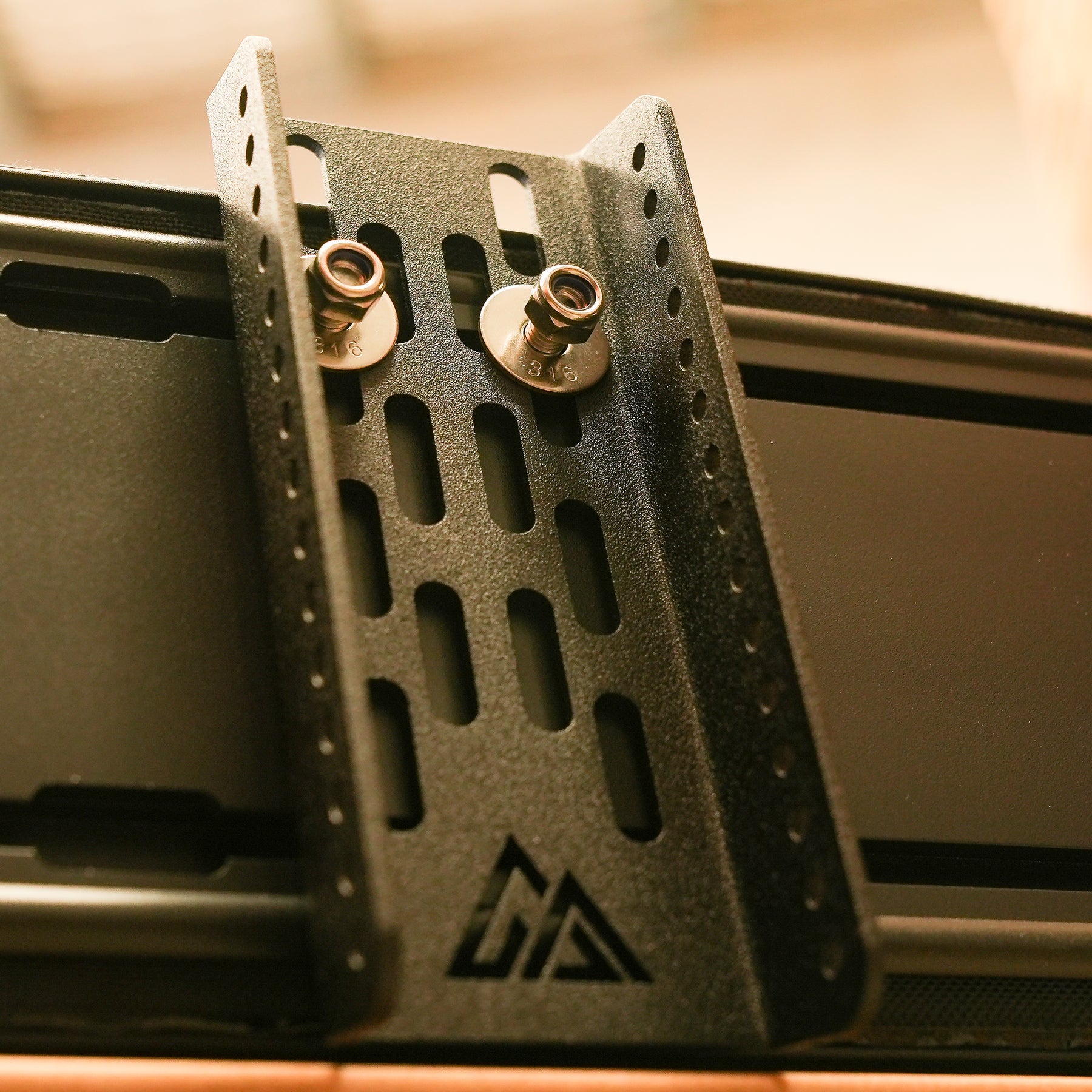

20mm - awning bracket installs. Perfect for mounting awnings into 3mm-thick brackets - exactly like the Rainger Revo-X bracket range. If you are bolting an awning to L-brackets or RTT brackets, this is your length.
-

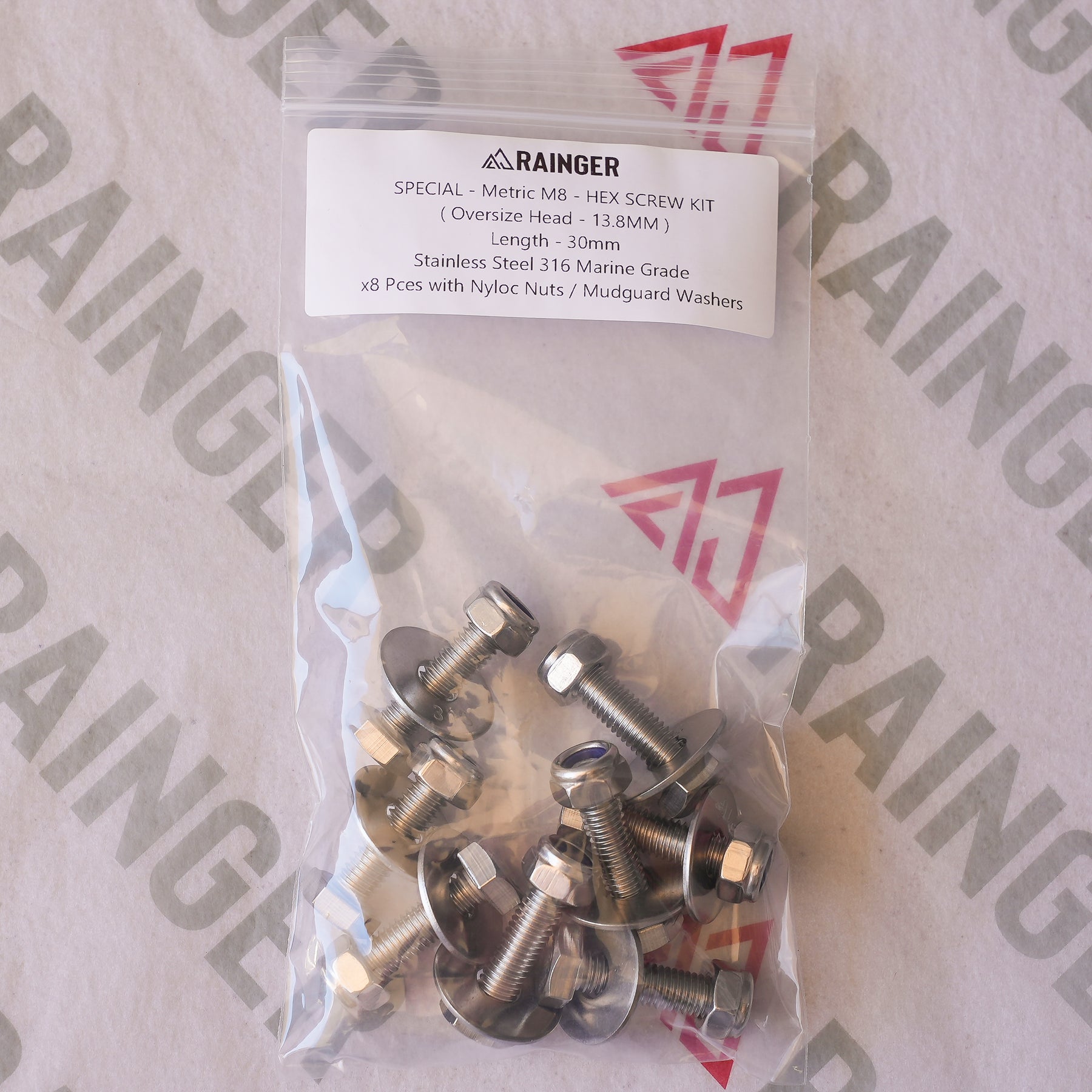

30mm - thicker brackets and spacers. Extra reach for heavier-gauge brackets, doubled plates or setups with packers in the stack.
-

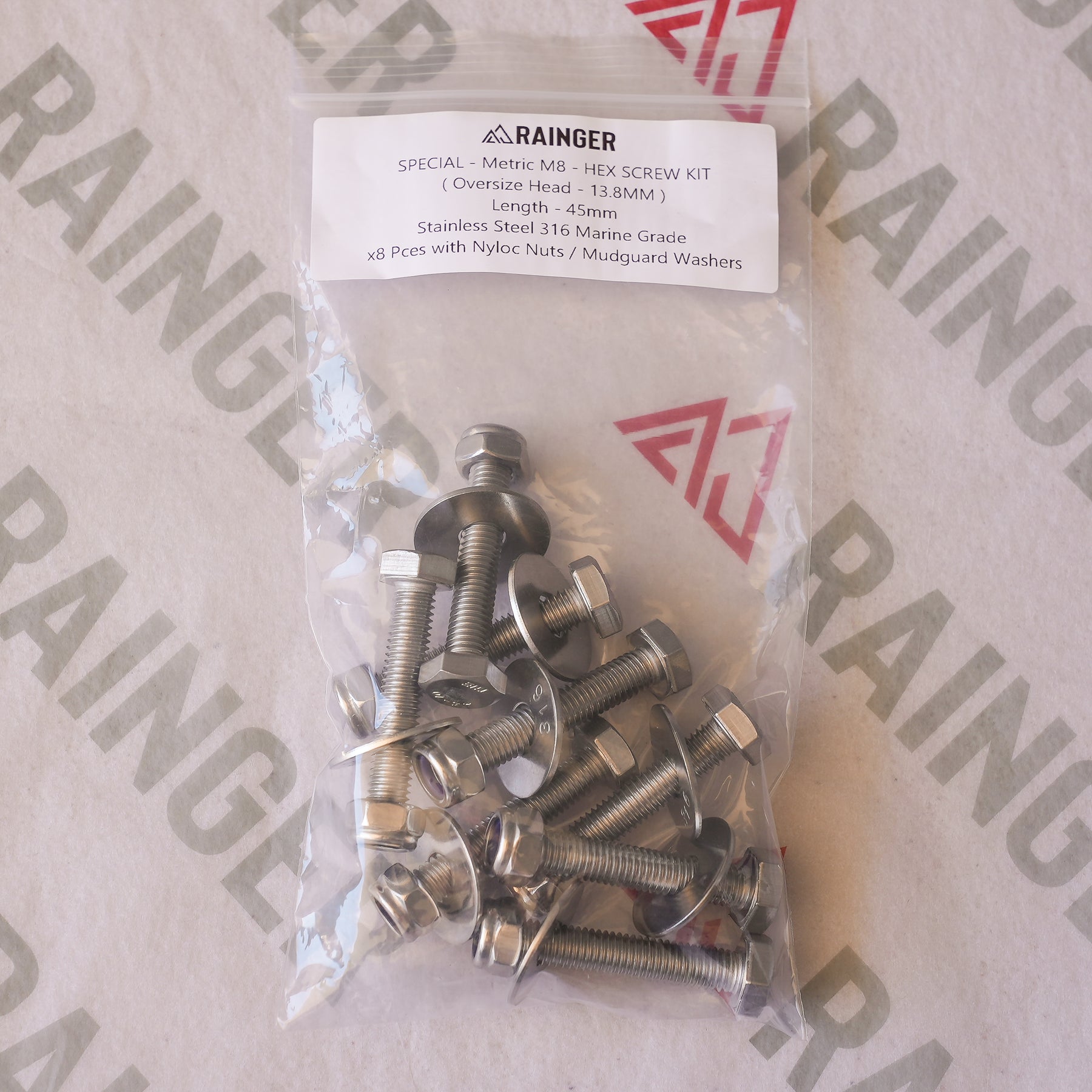

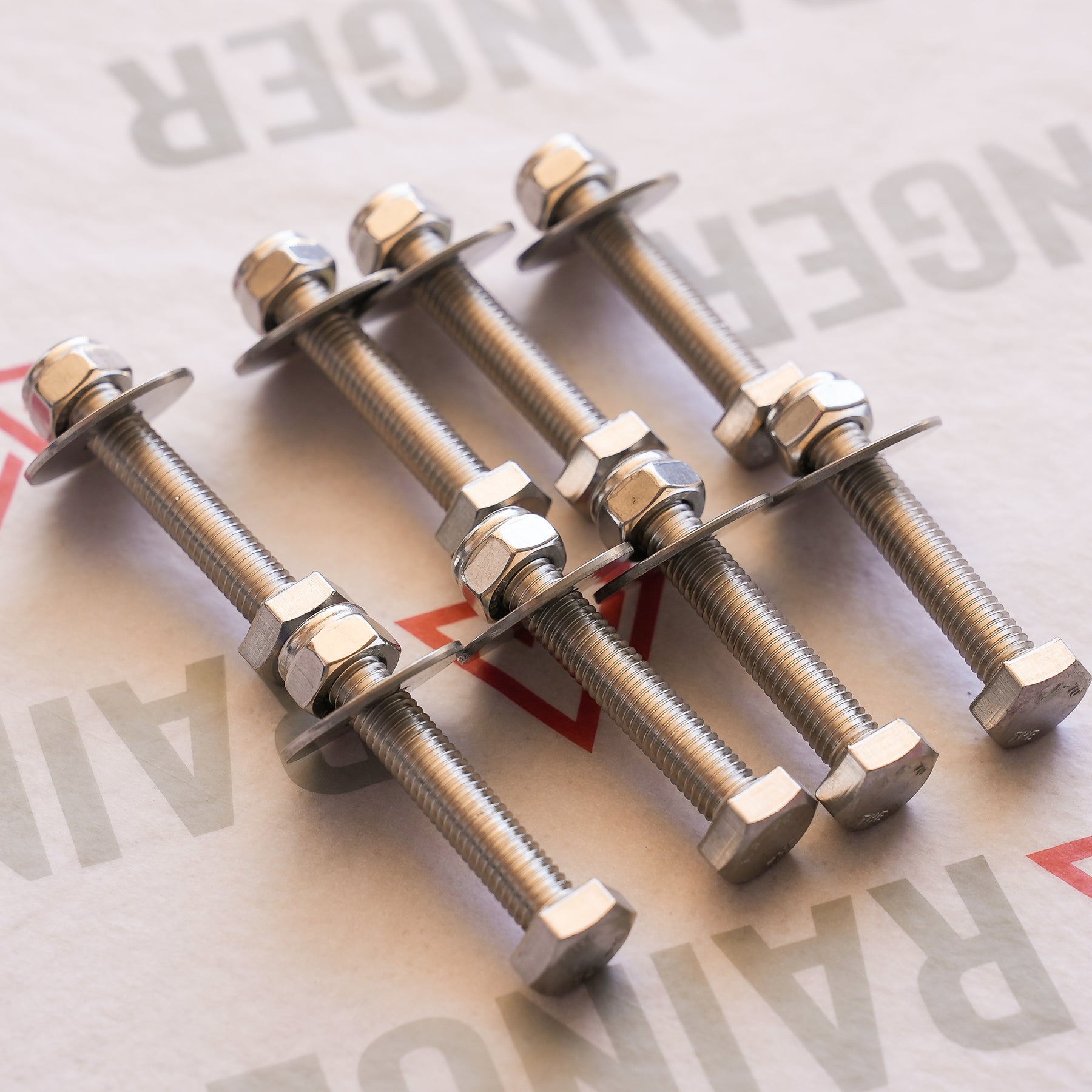

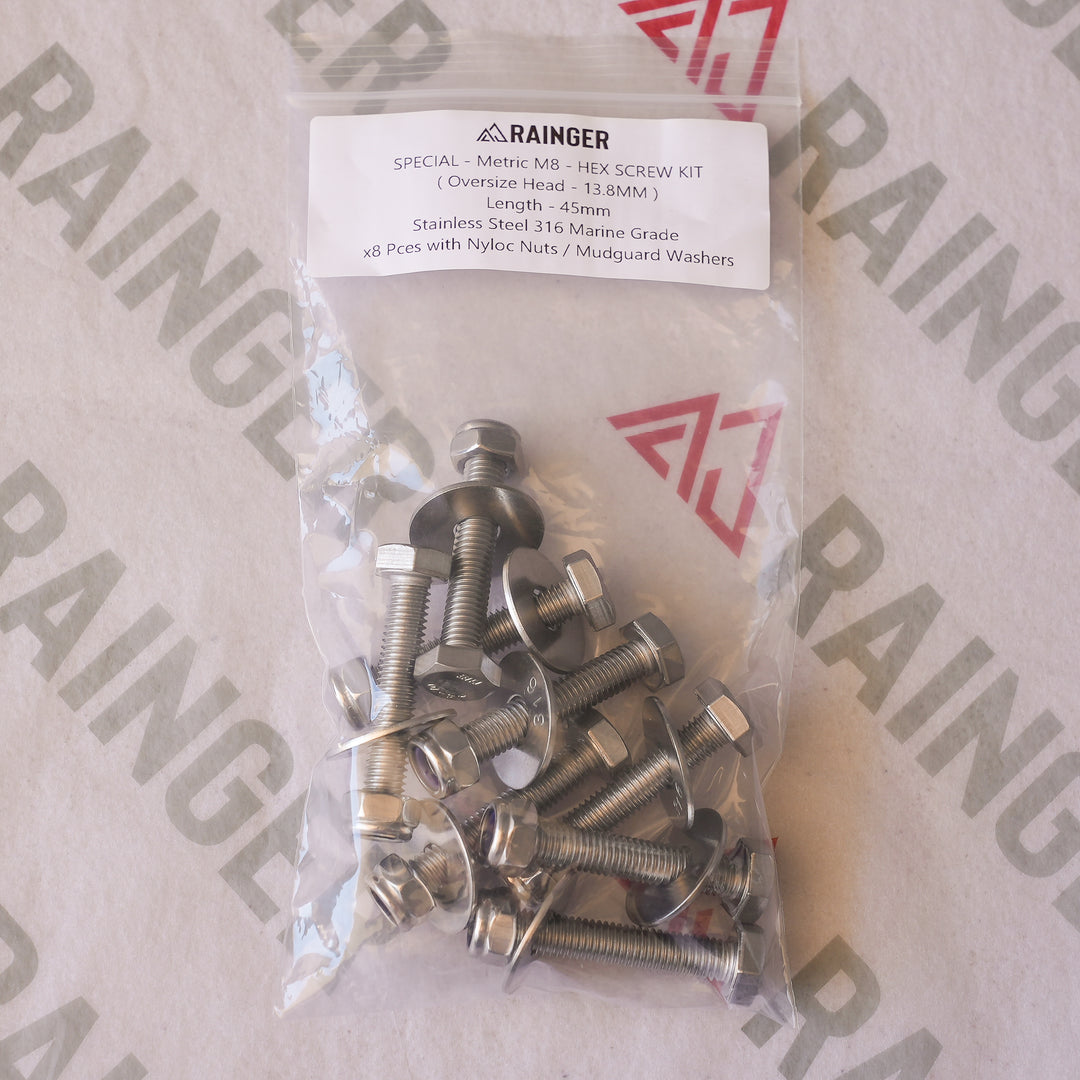

45mm - roof top tent installs. Our recommendation for RTT mounting - this is effectively the same fastener that comes standard with the Rainger Revo-X (45mm), so it is the direct spare or replacement for tent installs.
Key specifications
- Thread: M8 x 1.25

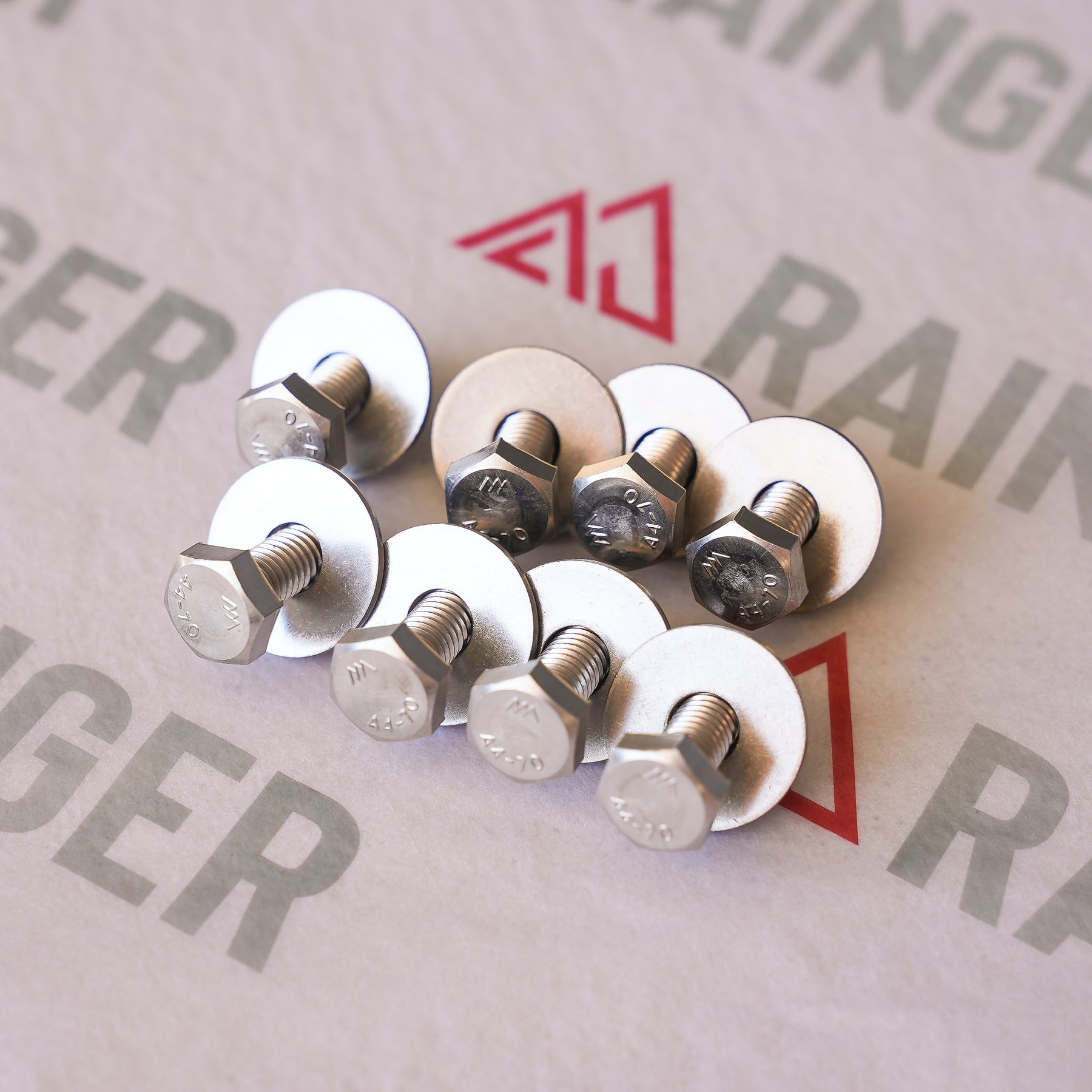

- Head: Hex, oversize 13.8mm across flats (standard M8 is 13.0mm)
- Material: A4 316 marine grade stainless steel (bolt, nut and washer)
- Pack: 8 x bolts, 8 x nyloc nuts, 8 x mudguard washers
- Suits: 13.8mm / 14mm awning rear mounting slot and M8 channel sliders
Not sure if these are the ones you lost?
Measure the head of a bolt still in your awning across the flats with a vernier or a ruler. 13.8mm means these are yours. 13.0mm means you have standard M8 in there. Either way, send us a photo of your track and we will tell you what you need.
Pairs with
Pro tip: for stainless-on-stainless, a dab of anti-seize prevents galling and keeps your torque accurate.
