These plates sit in a channel with a 14mm mouth. A standard M8 hex head measures 13.0mm, so there is about a millimetre of play. It does the job - plenty go out that way without a problem - but hold the head square as you tighten, because if you overtighten it the head can spin in the channel.
The better fit is a 13.8mm oversize head. It fills the channel, bears across more of the slot and sits square on its own. It is also the head a lot of awnings are built around, and one almost no Australian supplier stocks - so if you have lost yours or need a different length, this is the hard one to find: SPECIAL M8 Hex Screw Kit, oversize 13.8mm head, A4 316. Comes with nyloc nuts and mudguard washers in 20mm, 30mm and 45mm.
Bolts are not included with these plates.
Small parts that make installs easier.

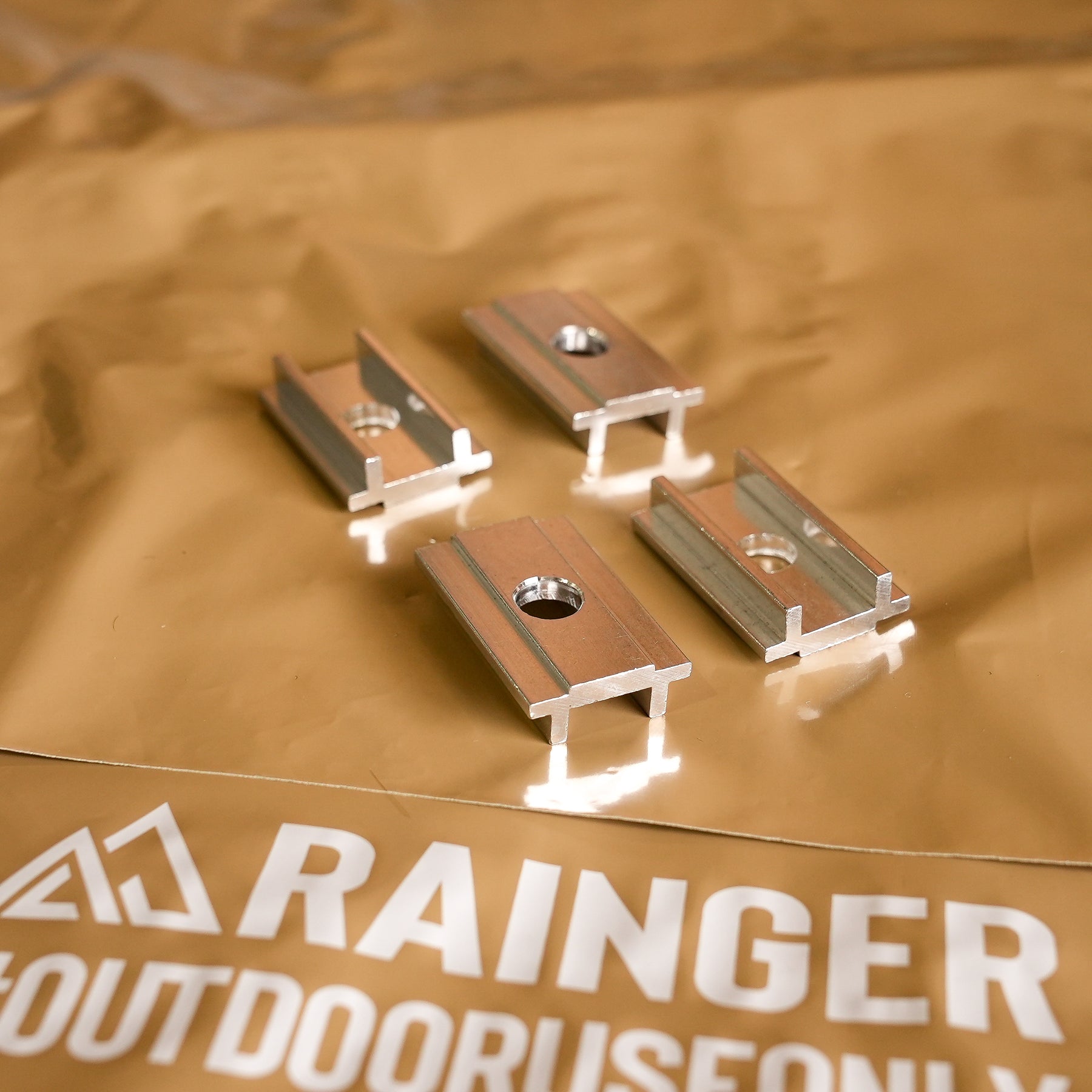

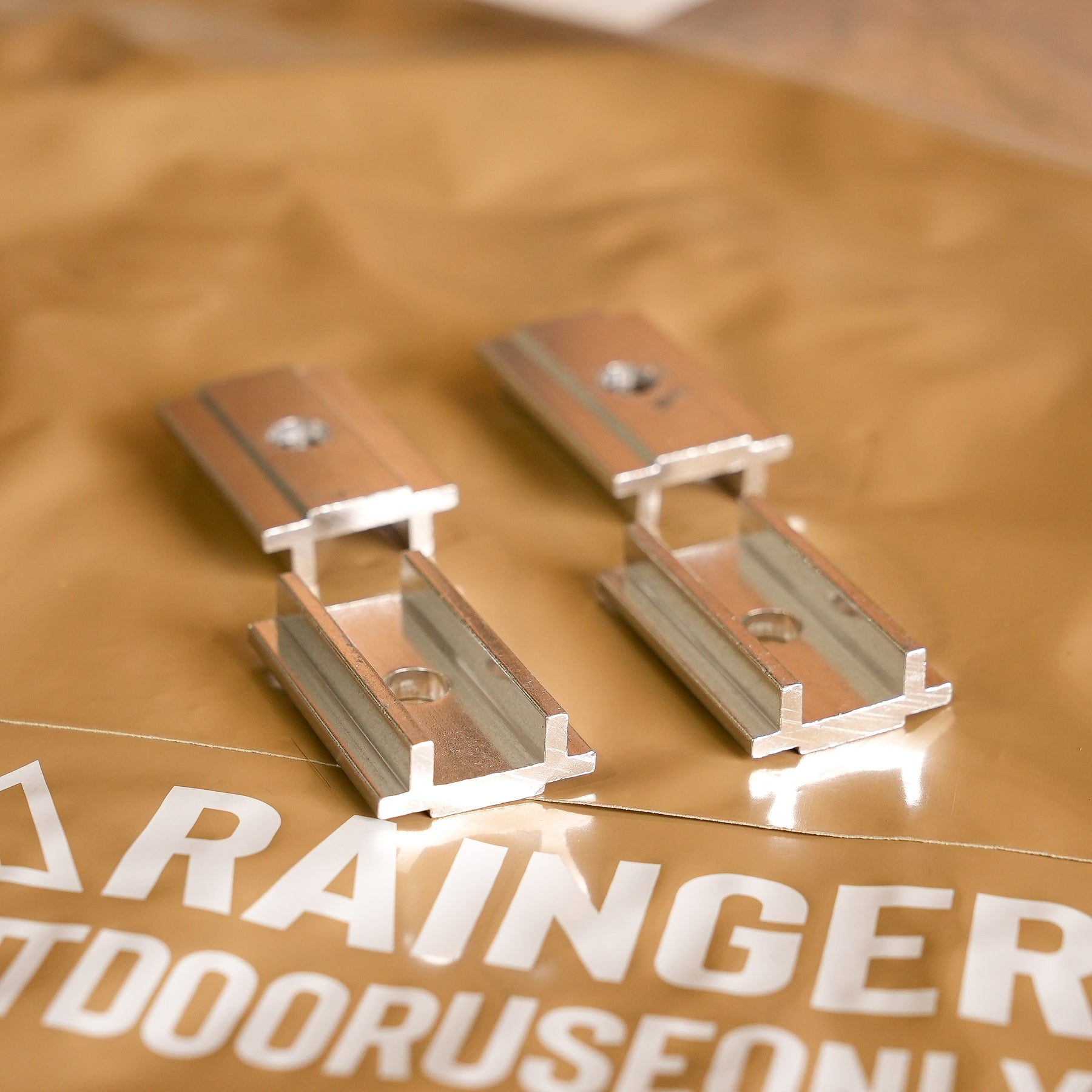

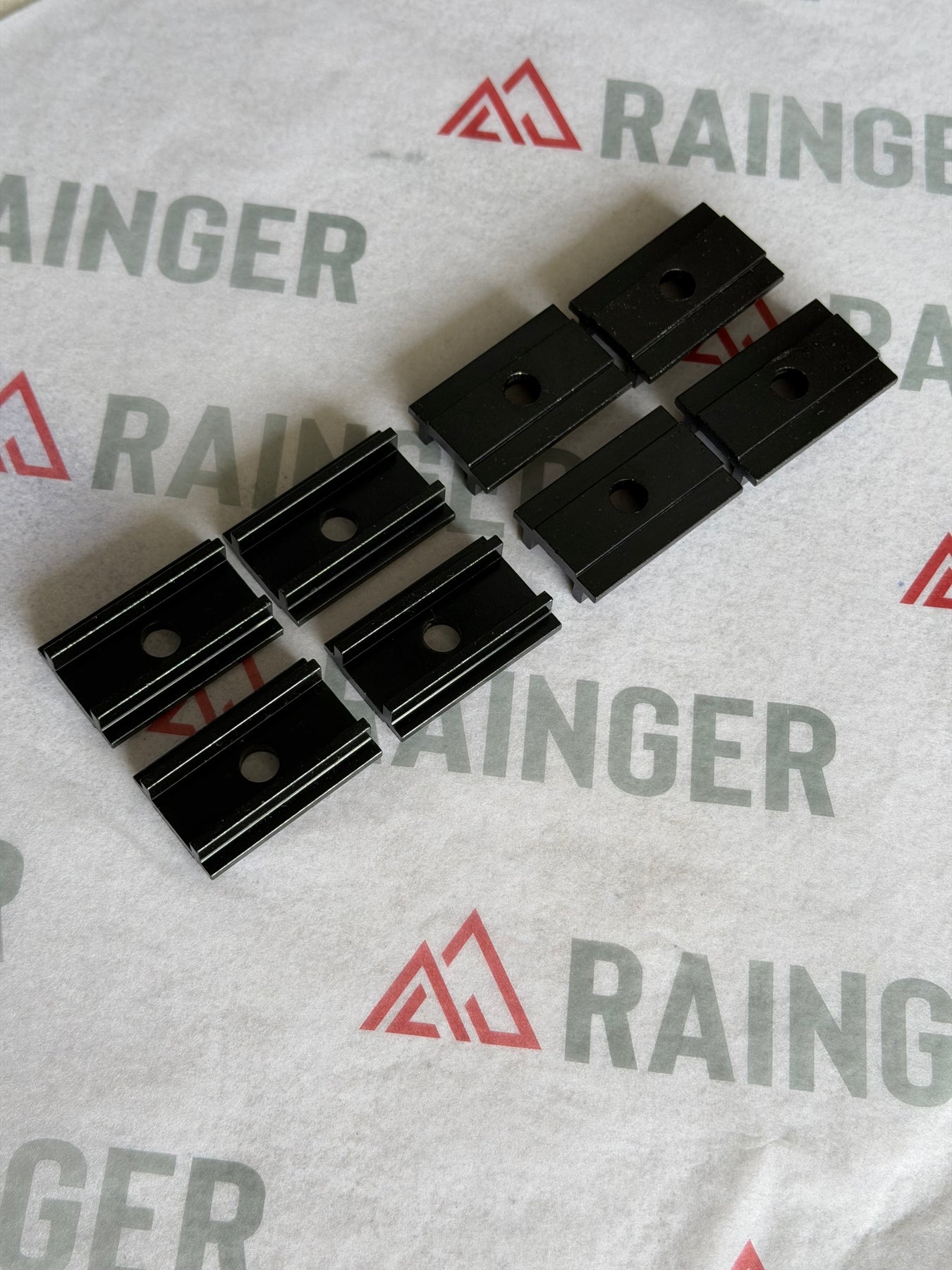

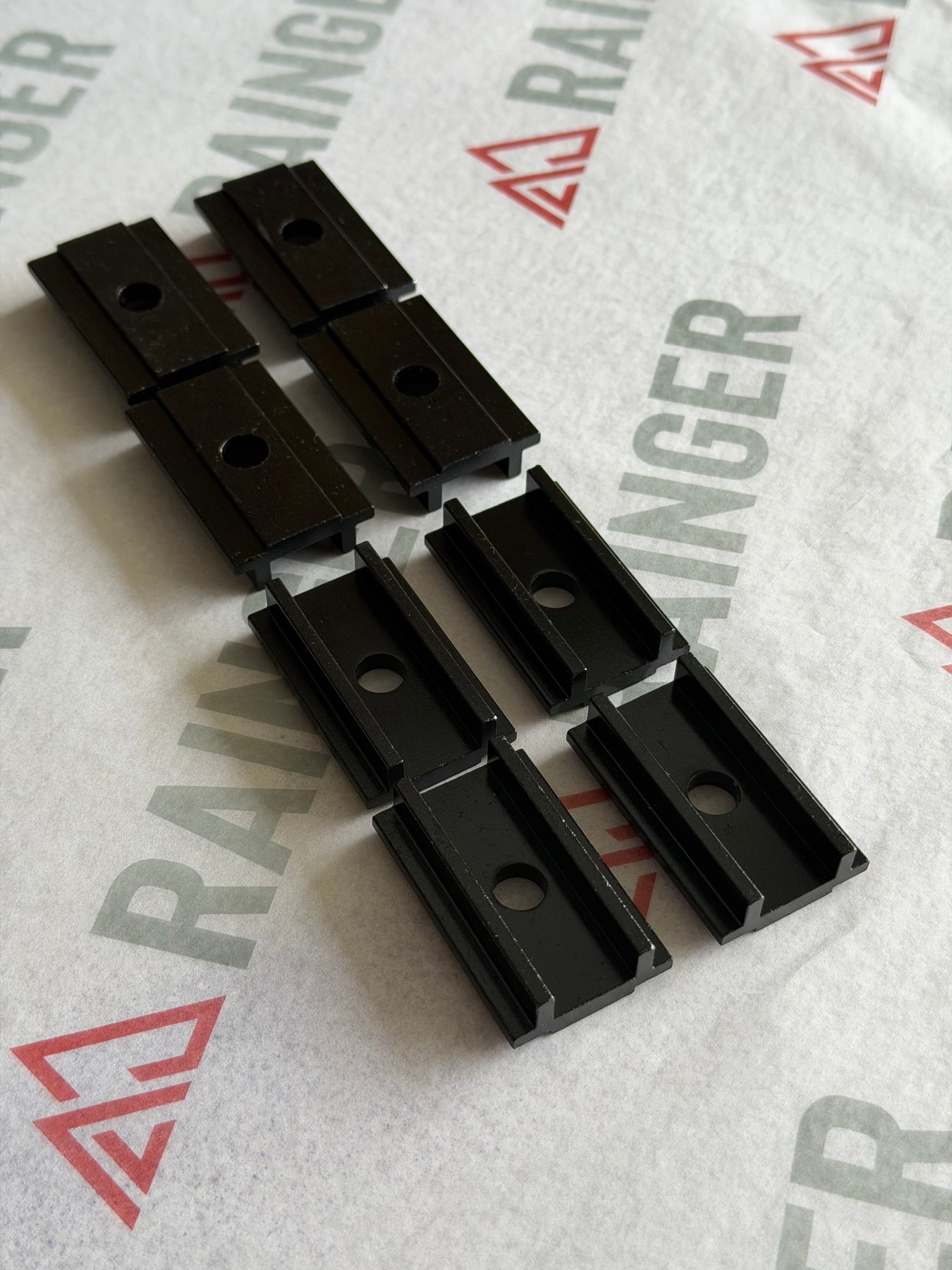

The Rainger Aluminium RTT Channel Sliding Plates are designed to slide neatly into rooftop tent mounting channels, making alignment and fit-up far easier during installs. Originally supplied with Revo X rooftop tents, these plates are also a handy universal solution for many RTTs, racks, trays and mounting systems that use aluminium channels.
Machined from aluminium and supplied in 4-piece packs, they are ideal for new installs, custom setups, or as spares when you want flexibility without fighting fixed nut positions.
Why they are worth having
- Designed to slide freely inside RTT mounting channels
- Makes alignment easier during install and adjustment
- Strong aluminium construction
- Ideal for Revo X installs and many universal RTT systems
- Great to keep as spares for touring or custom setups
- Supplied in practical 4-plate packs

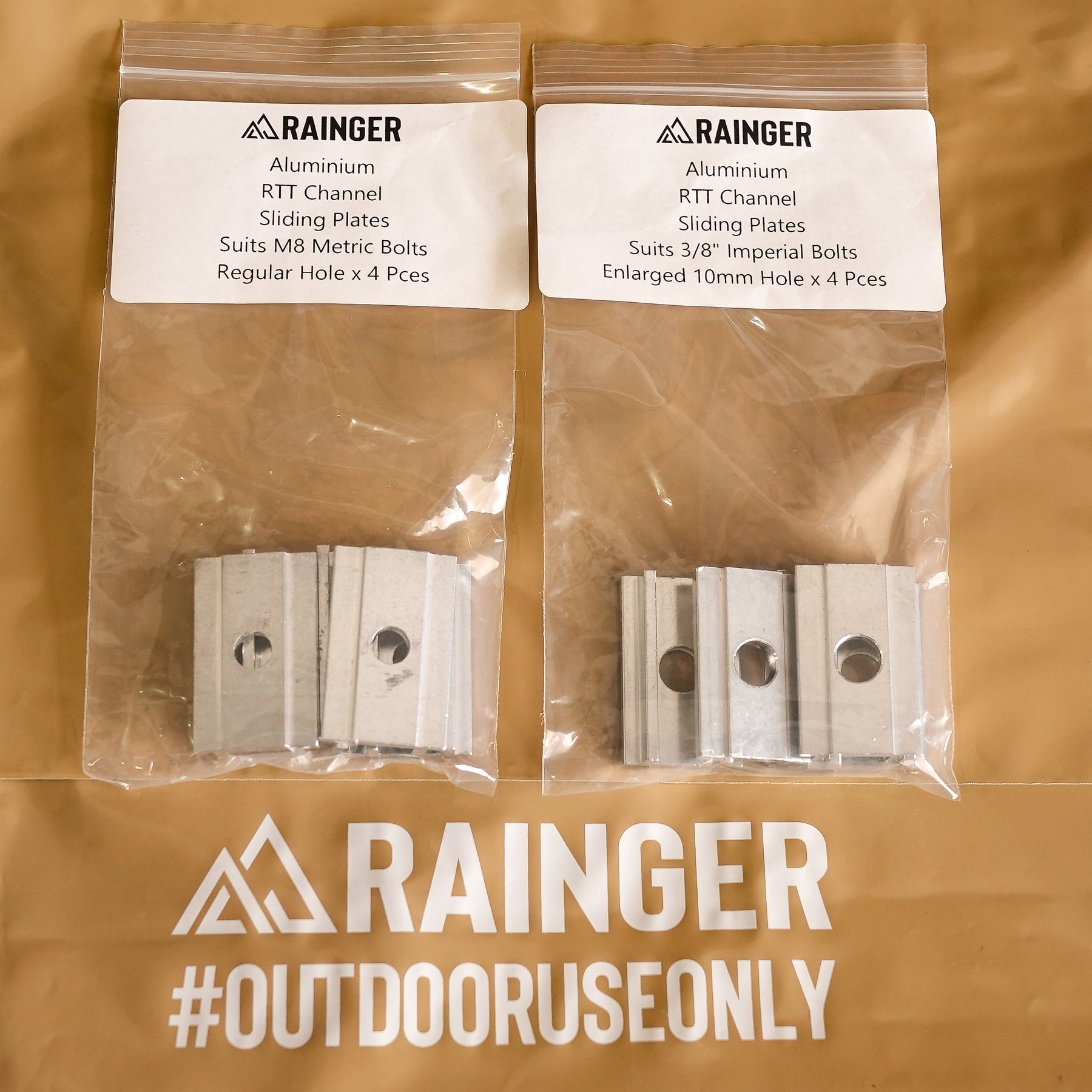

Choose your hole size
| Option |
Hole |
What goes through it |

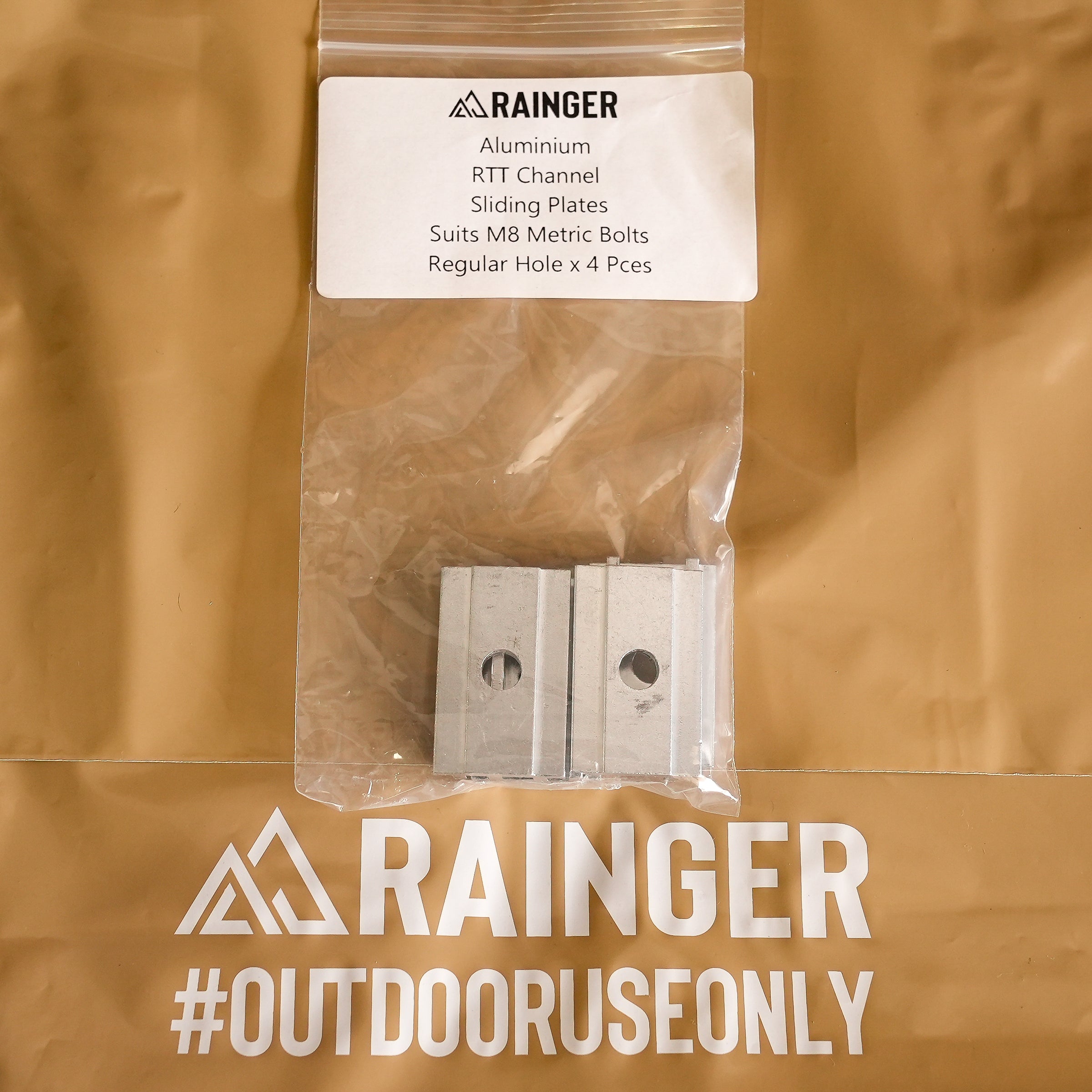

8mm Hole
Natural aluminium finish
4 plates per pack |
8mm |
Takes any M8 bolt. For the cleanest fit in the channel, run the oversize 13.8mm head kit. |

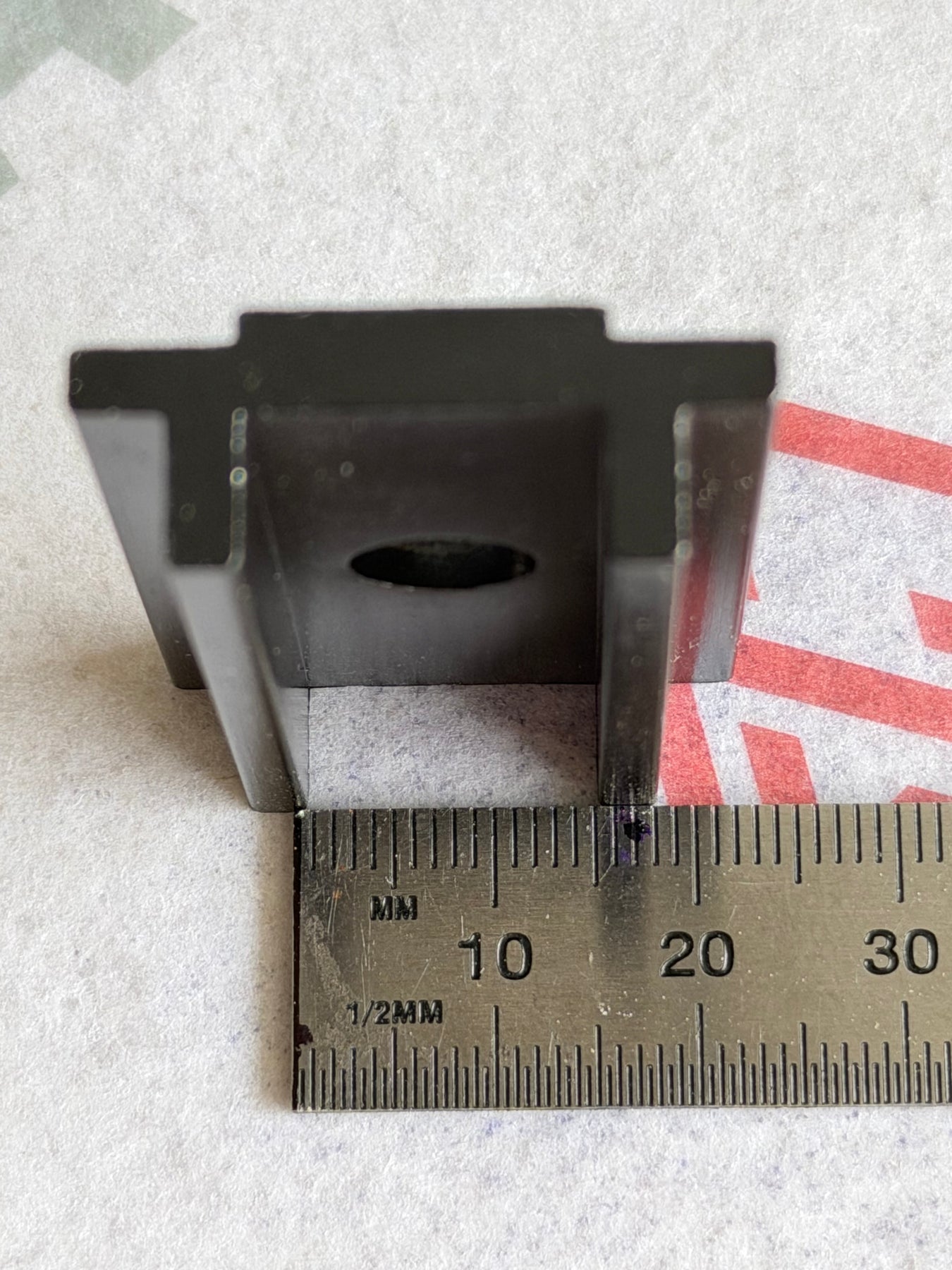

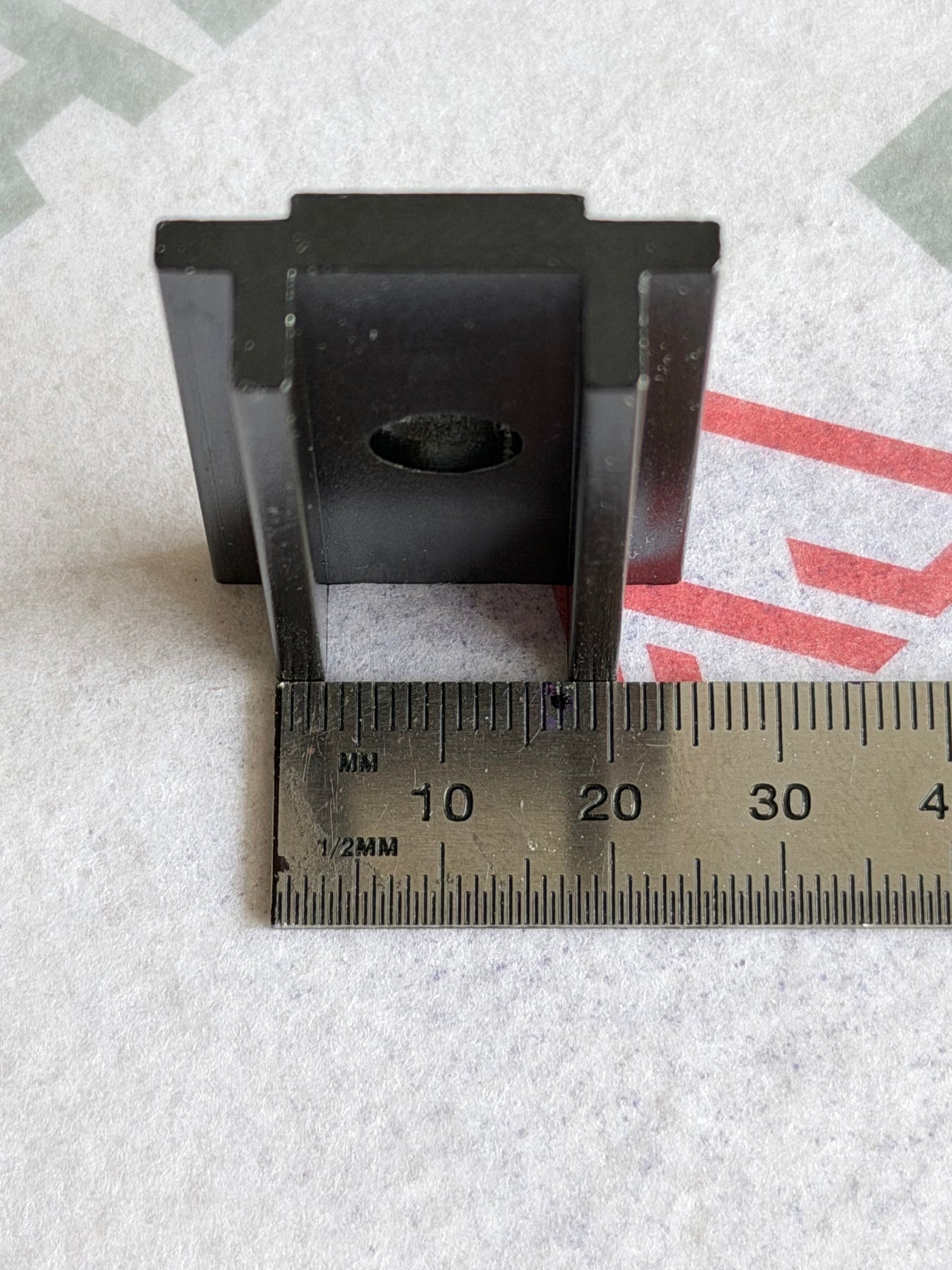

8mm Hole - Black
Black finish, blends into black channels, racks and hardware for a stealth look
4 plates per pack |
8mm |
Takes any M8 bolt. Same as above - the oversize 13.8mm head is the better fit. |

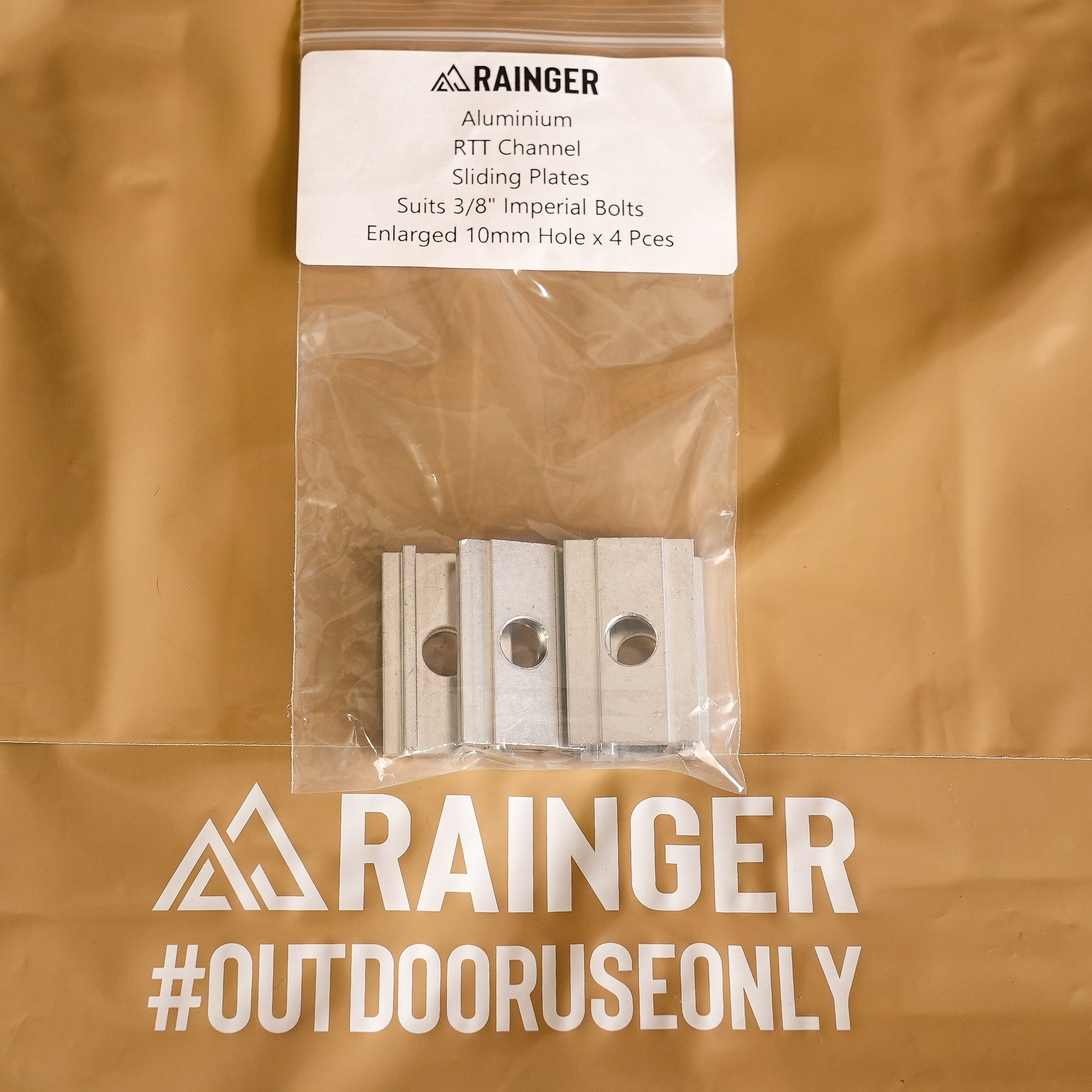

10mm Hole - Enlarged
Added clearance, stronger setup for Direct Canopy Mounting
Natural aluminium finish
4 plates per pack |
Approx. 10mm |
Takes a 3/8 inch bolt (shank approx. 9.7mm) as well as M8. Not sure which channel you have? Ask us. |

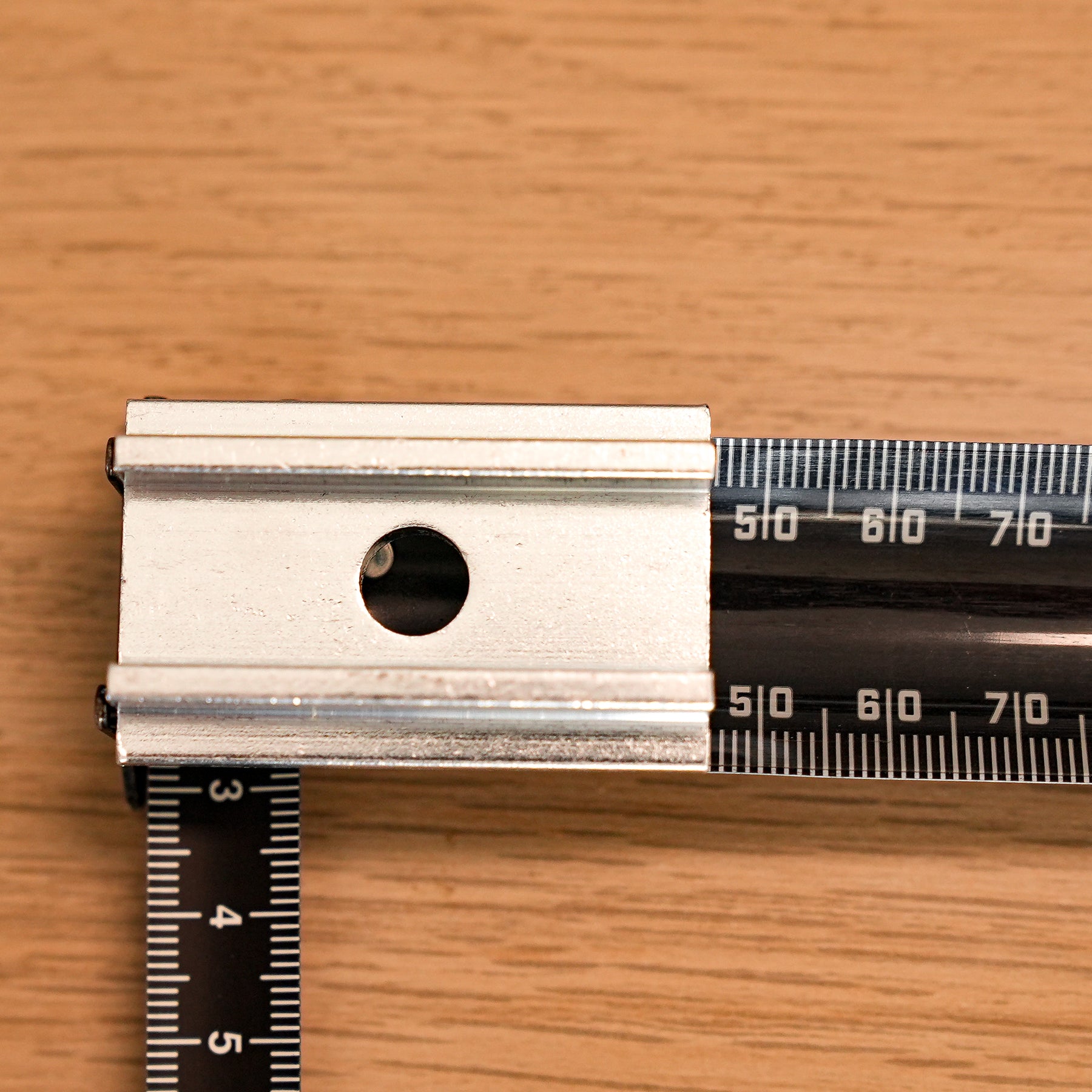

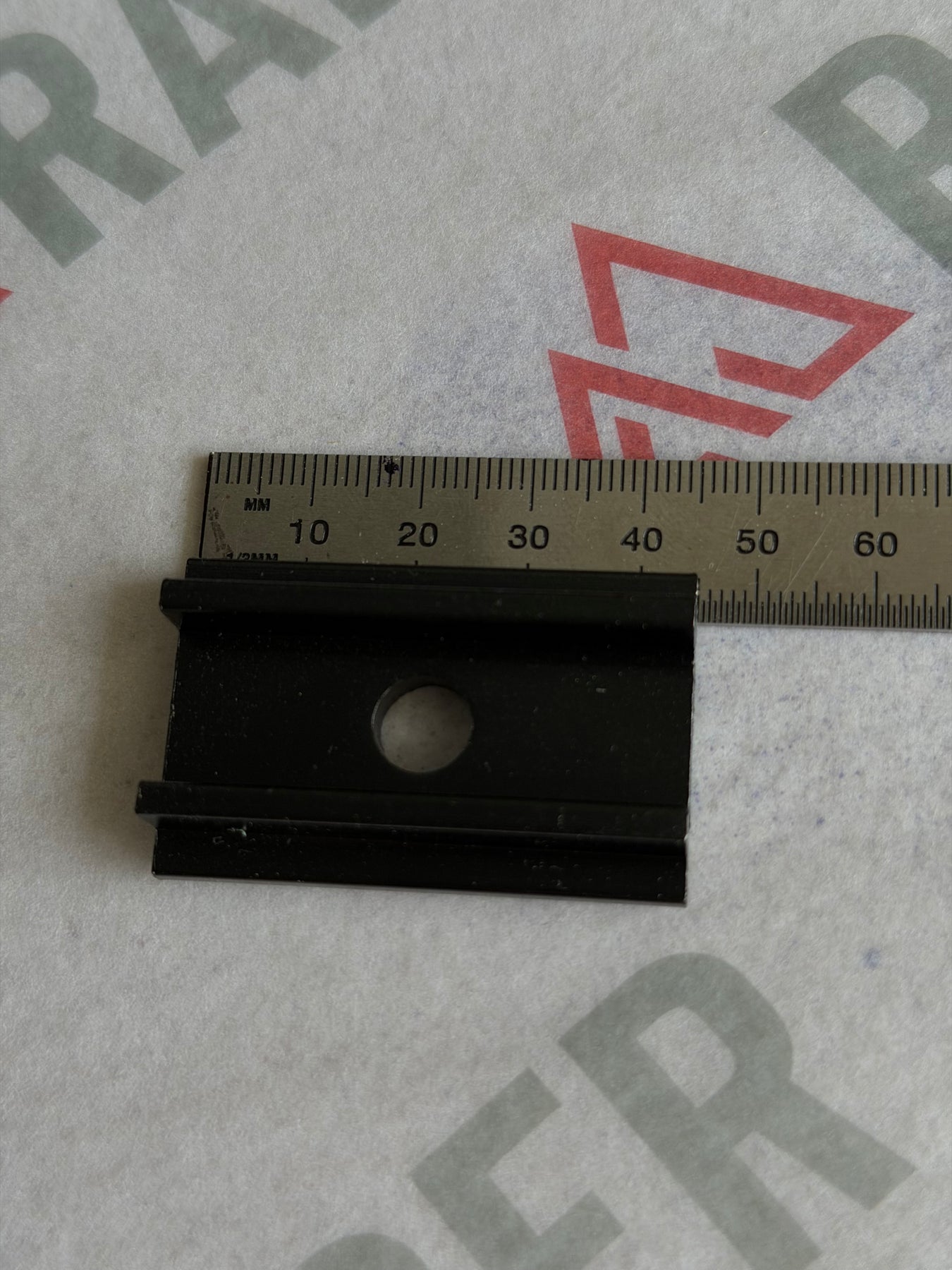

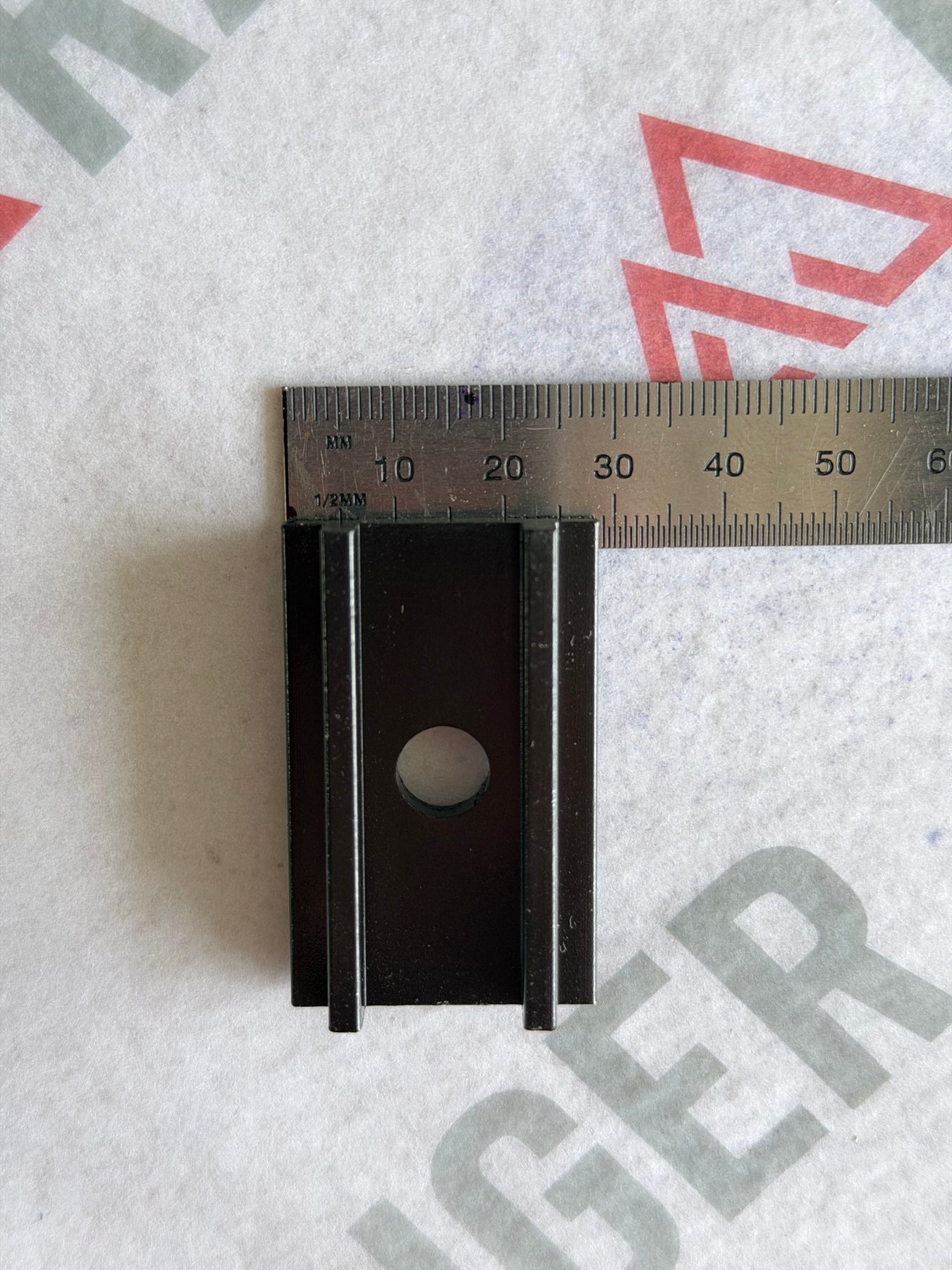

Dimensions (per plate)
Measured directly from production samples shown:
- Plate length: approx. 45 mm
- Plate width: approx. 30 mm
- Plate thickness: approx. 6 mm
- Hole size: 8mm, or approx. 10mm on the Enlarged option
(Minor manufacturing tolerance may apply.)
Key details
- Material: Aluminium
- Application: Roof top tent channel mounting
- Compatibility: Revo X and many universal RTT systems
- Pack size: 4 plates per pack
- Finish: Natural aluminium or Black
What is included
- 4 x Rainger Aluminium RTT Channel Sliding Plates (in your chosen hole size)
- Retail-labelled packaging
- Bolts are not included - see the kit above
Finish the job
Install note
Designed to work with standard RTT channel systems. Always confirm bolt size and channel compatibility before installation. Not sure what you have? Send us a photo of your channel and we will tell you which bolt to run.
