What the X-frame does and where it sits

The X-frame — or X-hinge — is the cross-bracing mechanism that connects the top and bottom shell halves and controls the lift geometry as the tent opens and closes. On a well-designed X-frame tent, it's what allows the lid to rise squarely, stay stable at full extension, and drop cleanly onto the seal when closed.

The canvas that forms the sides and windows of the tent has to live somewhere relative to that mechanism. On some tent designs it sits inside — between the X-frame and the sleeping interior. On others it sits outside — the X-frame is on the exterior face and the canvas hangs inward from it. That single design choice has downstream effects on almost everything about how the tent behaves in day-to-day use.

The problems with X-frame inside the canvas

Pack-down becomes a safety and frustration issue

When the X-frame sits inside the canvas, closing the tent requires the canvas to be tucked to the outside of the mechanism before the shell comes down — otherwise canvas gets caught in the X-frame as it folds. With the frame on the inside, that tucking process means reaching past the mechanism, fingers working in a confined space you often can't fully see, pushing canvas away from the X-frame as the lid is simultaneously descending.

That's a scissor-type mechanism closing around a space where fingers are working. Even if the movement is slow and controlled, it's not a configuration you want to be working in — particularly if there's any time pressure, poor lighting, fatigue at the end of a trip, or a child nearby helping. On tents with this design, canvas getting caught in the mechanism is a known and recurring frustration. It can also damage the canvas over time at the contact points.

Condensation forms on the frame — inside the tent

An X-frame is typically constructed from mild steel or stainless section — substantial, rigid material that needs to be to handle the load. When that frame is bolted directly to the alloy tent floor and sits inside the canvas, it creates a direct thermal bridge from the cold floor into the interior of the sleeping space.

Cold metal inside a warm, humid tent is a condensation surface. The same physics that causes moisture to form on the alloy floor perimeter and shell walls applies to the X-frame — warm interior air hits the cold metal and releases moisture. Unlike the floor, which you can wipe down before pack-up, a large X-frame structure inside the canvas is harder to dry thoroughly, harder to inspect, and harder to keep clean over time.

Rust risk in an enclosed environment

The same enclosed-environment corrosion concern that applies to internal gas struts applies here. An X-frame inside the canvas — and potentially inside a sealed shell — sits in a contained space where moisture from condensation or minor ingress has nowhere to go. Heat cycling drives that moisture into the metal and its fasteners. This is a slow process, largely invisible until it becomes significant, and difficult to address once established. Frame components that are accessible from outside the canvas can be inspected, treated, and replaced if needed. Ones buried inside are not.

An occupant safety consideration

A large metal frame structure inside the sleeping space is worth thinking about from a user safety perspective — particularly for families with young children. While the X-frame isn't moving when the tent is set up and occupied, it's an exposed metal structure at the perimeter of the sleeping area. In a tent where small children are sleeping, rolling around, or playing in the morning, proximity to a rigid frame is worth factoring in. It's not a reason to dismiss a tent outright, but it's a consideration that rarely gets raised in product descriptions.

What external canvas placement enables

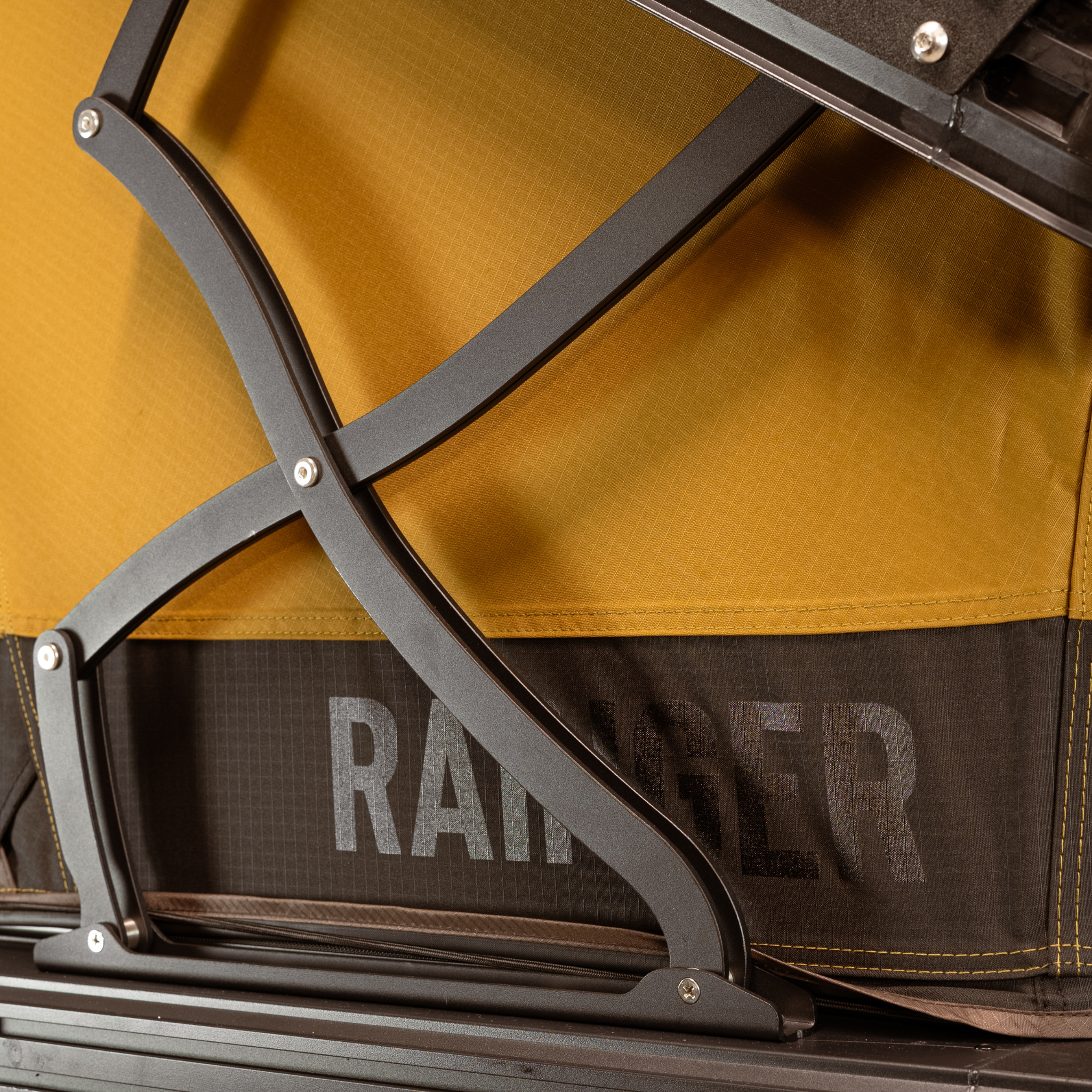

With the X-frame on the outside of the canvas, the canvas hangs freely on the interior side of the mechanism. Pack-down becomes a canvas management exercise rather than a mechanism-avoidance exercise — and that's a meaningfully easier problem to solve.

The bungee system — pulling canvas clear automatically

On the Revo-X, a bungee cord runs around the full perimeter of the canvas. When you're packing down, this perimeter bungee creates inward tension across the canvas face — pulling it away from the X-frame and toward the centre before the shell descends. A secondary cross-bungee runs from left to right specifically at the X-frame zone, adding targeted inward pull exactly where the mechanism is. Between the two, the canvas is held clear of the mechanism throughout the close without requiring hands-on management of every section.

The cross-bungee clips to one side when not in use — one motion to deploy when packing down, one clip to stow when opening. It's designed to be part of the routine without adding time to it.

One-person pack-down from the back

With canvas tension handled by the bungee system, the Revo-X pack-down sequence works cleanly from the rear of the tent — either standing on the ladder or from the back of the vehicle. The rear fold bar folds in, the bungee cord goes up around the perimeter, and the single-strap close pulls the lid down. One window left slightly open allows air to escape as the shell compresses — hardshell tents seal well enough that closing without any airflow escape creates resistance. With that one opening managing the air pressure, the lid pulls down smoothly.

Once the shell is most of the way down, a right-arm reach into the side tucks that side's canvas in — one or two movements. Left side the same. Both can be done from the rear without walking around the vehicle. No fingers near any mechanism. No canvas getting caught. The consistency of that process across trips is part of what makes it reliable — it's the same sequence every time regardless of conditions or fatigue level.

A note on X-frame outside the shell entirely

A third configuration exists — some tents mount the X-frame on the exterior of the outer shell itself, fully exposed. This creates the same accessory mounting and snag considerations that external gas struts get criticised for, but at a larger scale. The X-frame is a significantly bigger structure than a strut, and mounting it externally on the shell means it occupies the same real estate where awnings, brackets, and side-mounted gear typically need to go. The design trade-offs here are covered in the gas struts comparison blog — the same logic applies.

What to check when evaluating any X-frame tent

• Where does the canvas sit relative to the X-frame? Ask to see the pack-down process demonstrated — ideally by yourself, not a salesperson. If tucking the canvas requires working around or past the mechanism, factor that into every trip for the life of the tent.
• Is there a canvas management system? Bungee, tension cords, or similar — something that holds canvas clear of the mechanism automatically rather than relying entirely on manual technique each time.
• Can you inspect the X-frame fasteners? If the frame is internal, check whether the mounting bolts are accessible for inspection and whether the frame material is appropriate for a moist, thermally-cycling environment.
• Does the X-frame geometry resolve before the seal contacts? The frame should be carrying no residual load when the top shell lands on the seal. If the mechanism is still under tension at the point of contact, it will affect seal compression and close geometry over time. See the seal and moisture guide for why this matters.
• One-person pack-down? Can one person close the tent cleanly and confidently without assistance? This matters most when you're tired, when conditions are difficult, or when you're travelling solo.
