A Hardshell Built ProperlyBuilt to do more than just
Built to do more than just
look good parked.
100mm Dual-Density
Build · Sleep System
A real sleep system —
A real sleep system —
not just a mattress.
The Revo-X uses the same mattress philosophy developed over seven years and thousands of swags. 100mm of dual-density foam with an eggshell top profile that distributes body pressure, improves airflow across the sleeping surface, and reduces the harsh feel of sleeping above an aluminium shell floor.
A roof top tent mattress has a different job to a swag mattress — it sits over a solid aluminium shell that can hold cold or radiate heat. The foam has to support comfort and act as an insulation layer between your body and the shell.
- 100mm dual-density foam with eggshell comfort layer
- 1270 × 1970mm sleeping surface
- 15mm anti-condensation mat underneath — breaks the moisture cycle
- Bedding stores inside when closed — doona, pillows, sheets pack in with the tent
In Real RainWater sheets off.
Water sheets off.
The seal stays dry.
Build · Sealing, At The Corners
Corners are where seals fail. Ours are die-cast aluminium.
Sealing a straight run is easy. The corner is where most hardshells quietly give up — and it's the first place water finds its way in.
Along the sides it's simple: a continuous extrusion and an unbroken seal channel. The corner is the hard part — and most hardshells hand it to a moulded plastic cap that goes brittle, loses clamping pressure, and lets water track in where you won't see it until the bedding's wet.
The Revo-X doesn't cut that corner. We join the bottom-shell extrusions with a die-cast aluminium corner that carries the raised seal edge unbroken around the bend, then guard it behind the top-shell lip — the same hidden seal system that runs the entire perimeter. One continuous sealing surface, corner included.
Six numbers that
separate a Revo-X from everything else.
Headline specs are the easy part — what matters is how they work together once the canvas is open.
+30%
X-Frame Elevation
More usable internal volume than a conventional hardshell of the same footprint.
+20%
Rear Fold Layout
Additional length and a rain-shed path away from the sleeping end of the tent.
100mm
Dual-Density Mattress
Eggshell profile over dual-density foam. 15mm anti-con mat underneath.
295W
Integrated Solar
Glass-framed monocrystalline PERC half-cell panel on a slimline rack.
5
Ventilation Openings
True crossflow for any wind direction. Most hardshells give you three.
320GSM
Ripstop Canvas
PU 10,000mm hydrostatic head. UV+50. SGS tested. PU-backed internal walls.
Build · Canvas & Materials
SGS tested. Independently verified.
We publish numbers competitors won't. 320GSM ripstop, PU 10,000mm hydrostatic head, UV+50 rated, every seam sealed. Internal walls are PU-backed and vacuum heat-sealed — not just coated on the outside face. The fabric is certified free of harmful phthalates.
01 / 04
SGS Test · Water95/100
Water repellency score under independent SGS testing — above the threshold most competitors won't publish.
02 / 04
SGS Test · UV4.5/5
UV resistance grade under accelerated weathering. Pairs with the UV+50 fabric rating — verified.
03 / 04
Hydrostatic Head10,000mm
PU-backed 320GSM ripstop canvas. Awning fly rates 5,000mm at 300GSM. Seam-sealed throughout.
04 / 04
Ripstop GridStops tears
Reinforced grid stops tear propagation. If a thread fails, it stops at the next grid point — not across the panel.
320GSM Ripstop · PU Backed
4× Laser-Cut Latches
Eggshell Mattress · 100mm
2.3m Telescopic Ladder
Build · Airflow
Five openings.
Five openings.
True crossflow in a compact hardshell.
Ventilation is the biggest difference between a tent that's easy to live in and one that becomes damp and stuffy after a few nights. Most hardshells give you three openings. The Revo-X gives you five — and the rear canvas door zips from the bottom up.
01
Left full doorIndependent
02
Right full doorIndependent · Most common side access
03
Rear full doorZips bottom-up · Low-level crossflow at mattress height
04
Front foot-end panelPairs with rear for mattress-level airflow · Shell cover blocks most rain
05
Protected top roof ventStays open in rain · Sits under awning fly · Magnetic fan ready
We do not claim the Revo-X eliminates condensation. No tent can. Condensation is physics. What the Revo-X does is reduce it substantially through five independent openings, two included magnetic USB fans, a 15mm anti-condensation mat, and PU-backed wipeable internal walls. Any moisture that does form is easier to control, dry and clean.
Build · Insect Mesh
Mesh that stops a nick becoming a hole.
Standard flyscreen tears once and ladders into a hole. We went looking for mesh that won't — and built it into every door and window.
Every opening runs anti-cut Nylon 66 multifilament mesh in a leno-lock weave. Each yarn is a bundle of fine filaments, so it flexes with the zip instead of snapping — and at every intersection the weave twists and locks. A nick stops dead at the next twist instead of laddering across the panel. It's ripstop logic, applied to mesh.
We've tested it hard. No flyscreen is genuinely knife-proof — but this is about as close as mesh gets, and it flat-out refuses to let a small snag turn into a 2am mosquito problem.

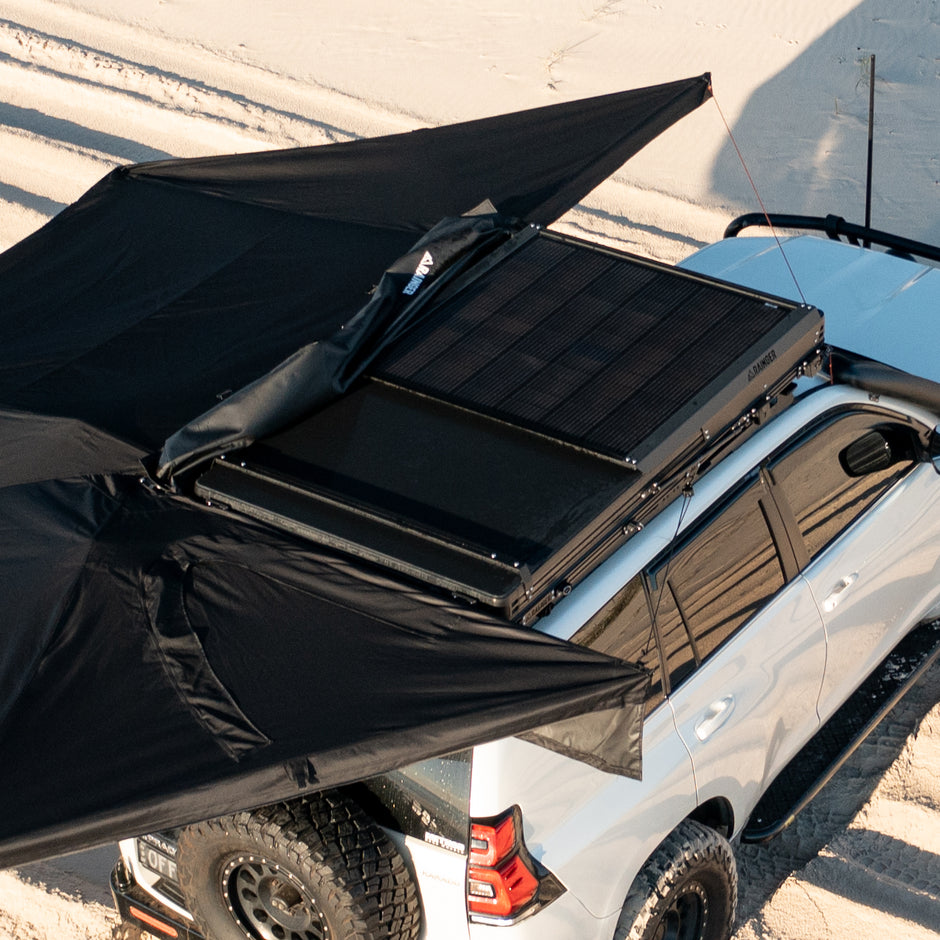

Power · 295W Integrated Solar
Solar that lives on the tent —
Solar that lives on the tent —
not bolted on after.
A full-black 72-cell monocrystalline PERC half-cell panel on a dedicated slimline rack with airflow underneath. Wired in from the factory. Plug-and-play Anderson connections. No loose cables, no aftermarket guesswork.
295W · Slimline Rack
The panel uses a half-cell configuration that reduces hot-spotting and improves output under partial shading — the kind of light you actually get parked under trees or shade-cloth at a free camp.
It sits on a dedicated slimline rack with a natural air gap underneath. Cooler cells mean more stable real-world output, and if the panel ever needs servicing it unbolts cleanly without turning the tent lid into the problem.
The 295W output is unregulated. You'll need an MPPT/PWM regulator or DCDC/BCDC charger with solar input. We stock the Victron 100/20 Smart Solar as a purpose-matched option. Talk to us before you order if you're unsure.
22.23%
Module Efficiency
72
Half-Cells · 6×12
19.31V
Vmp
15.28A
Imp
Approach 01
Semi-flexible stick-on
Bonded to the tent lid with no air gap. Holds heat. Reduces real-world output. Messy and expensive to replace once adhered.
— Compromised thermals · Hard to service
Approach 02
Integrated into the lid
Solar built into the structural shell. Looks clean in a brochure. Locks you out of upgrades and turns repairs into shell-level surgery.
— No upgrade path · Repair-hostile
Revo-X
Glass-framed on a slimline rack
Conventional glass-framed module on a dedicated rack with airflow underneath. Cooler cells, better output, serviceable. Unbolts cleanly. Future-proof.
— Premium thermals · Built to last
12V Power Hub · Mirrored Each Side
Wired for how you
Wired for how you
actually camp.
The 12V hub is mirrored at both head ends — not buried at the foot end. Each side gives you a 12V cigarette socket, USB-A, USB-C QC, and a voltage display, plus three dimmable LED strips overhead. Dual Anderson plugs sit plug-and-play ready — grey for 12V in, red for solar out — with a dedicated heat-proof diesel heater port built in.
- Hub mirrored each side: cig socket + USB-A + USB-C QC + voltage display
- 3× dimmable LED strips overhead
- Grey Anderson (12V in) · Red Anderson (solar out)
- Dedicated heat-proof diesel heater port + AC hose compatible
12V Hub · Plug-and-Play
Anderson Plugs · Pre-Wired
15mm Anti-Con Mat
295W Panel · 72 Half-Cells
Magnetic USB Fans ×2
X-Frame · Rear Fold
Build · Architecture
X-Frame + Rear Fold —
X-Frame + Rear Fold —
genuine room to live.
Most hardshell roof top tents open on a single hinge. The X-Frame uses a crossed-strut elevation system that lifts the shell higher at both the head and foot ends, creating real internal volume where campers actually feel it — sitting up, turning over, getting changed, spending more than one night under canvas.
The Rear Fold adds more than extra room. On many hardshells the head-end canvas folds inward and rain runs toward the sleeping end. The Revo-X changes that path — the rearward extension stops that panel acting like a moisture channel above your pillows, and creates a protected top roof vent that stays covered from rain.
- +30% more usable internal room from X-Frame elevation
- +20% more space from the Rear Fold layout
- Genuine headroom and foot-end room for extended trips
- Protected top roof vent under the integrated awning fly
Packed Down · Slim ProfileClosed, it disappears.
Closed, it disappears.
Open, it transforms.
Trusted By
The people who do this for a living, run our gear.
Built by Founders · Baringa QLD
When you call us,
When you call us,
you get us.
The Revo-X was not bought off a catalogue and rebadged. The mattress philosophy comes from seven years and thousands of swags. The canvas spec was driven by Australian touring failures we'd already seen. The solar layout was decided by which panels actually hold up on Australian roof racks — not which were cheapest to import.
After the sale, you reach the same people. Not a call centre. Not a chatbot. The people answering your questions are the same people who worked through the mattress, canvas, solar rack and fitment logic behind this tent.
"Build smarter products. Solve real-world problems. Keep improving the details that matter once you're actually out there using them."
The Rainger Ecosystem
Direct-to-tent awning brackets.
Direct-to-tent awning brackets.
Freestanding, no poles. Built to fit.
The Revo-X is the centre of a system, not a one-off. A Rainger 270° awning mounts straight to the tent body on our direct-to-tent brackets — and runs fully freestanding off them, no poles. 3 T-slot channels, up to 7 bolts per bracket. Fit the tent to your vehicle and the rest is there, ready.

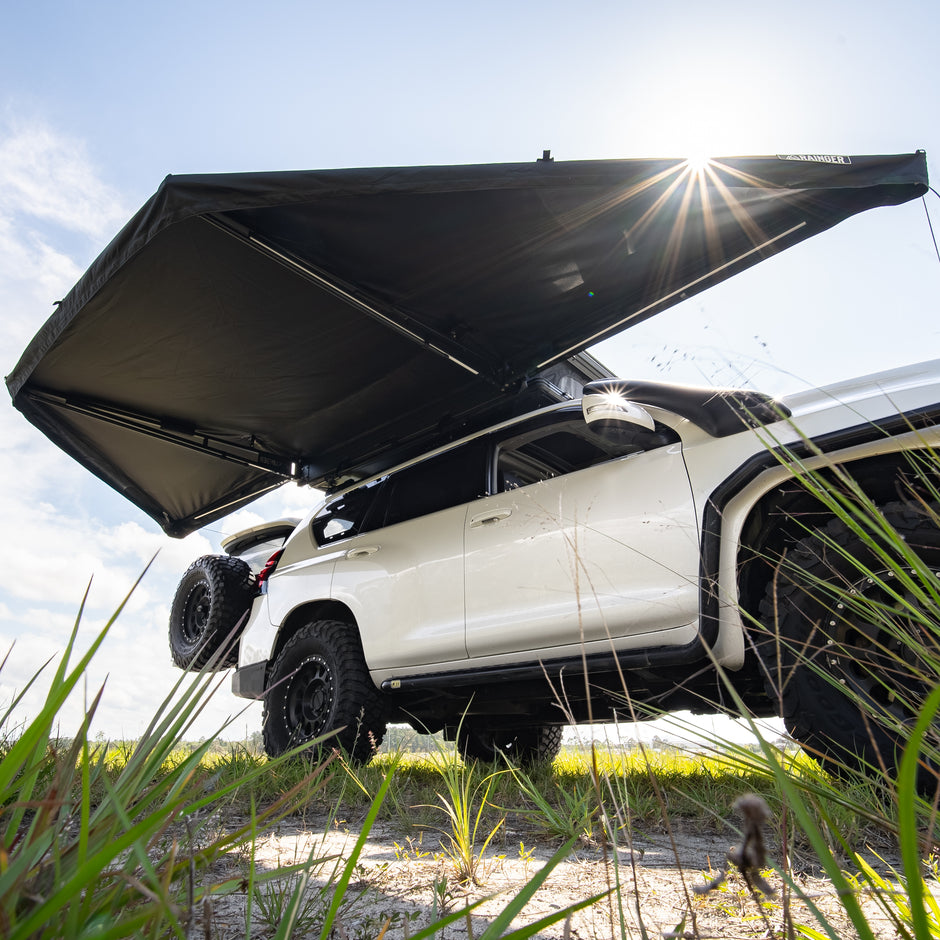

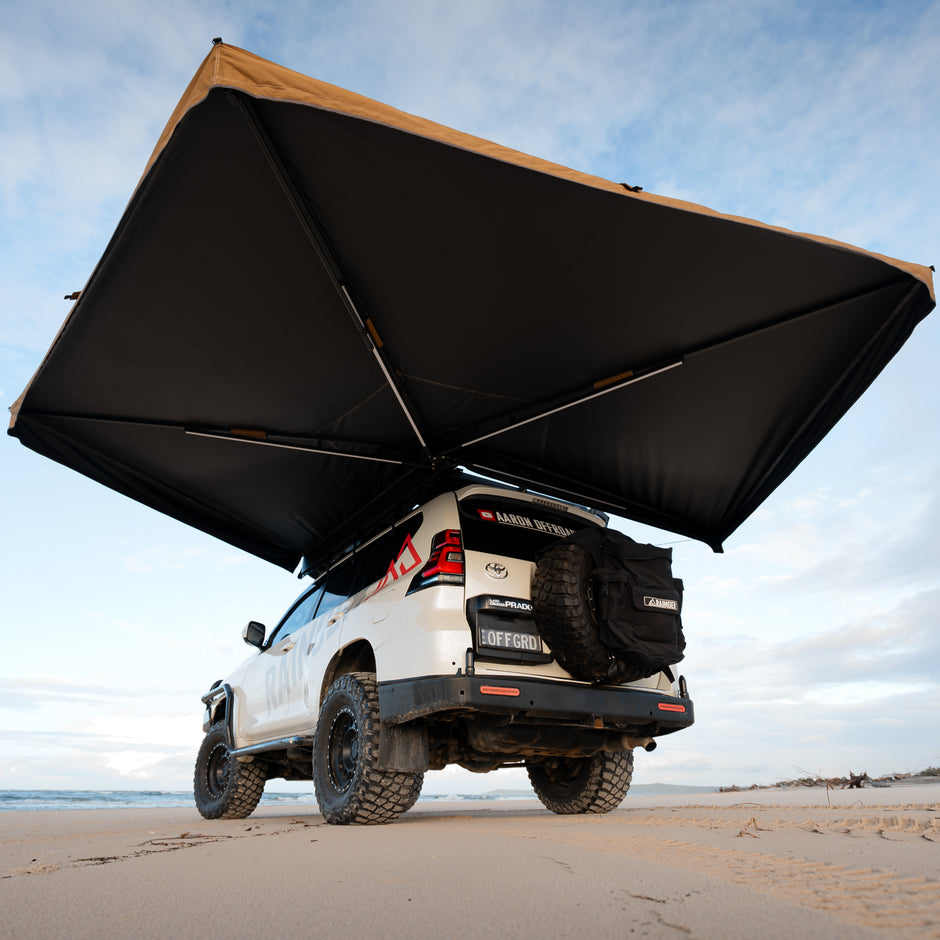

Awning · Direct-to-Tent
Rainger 270° awnings —
Rainger 270° awnings —
mounted straight to the tent.

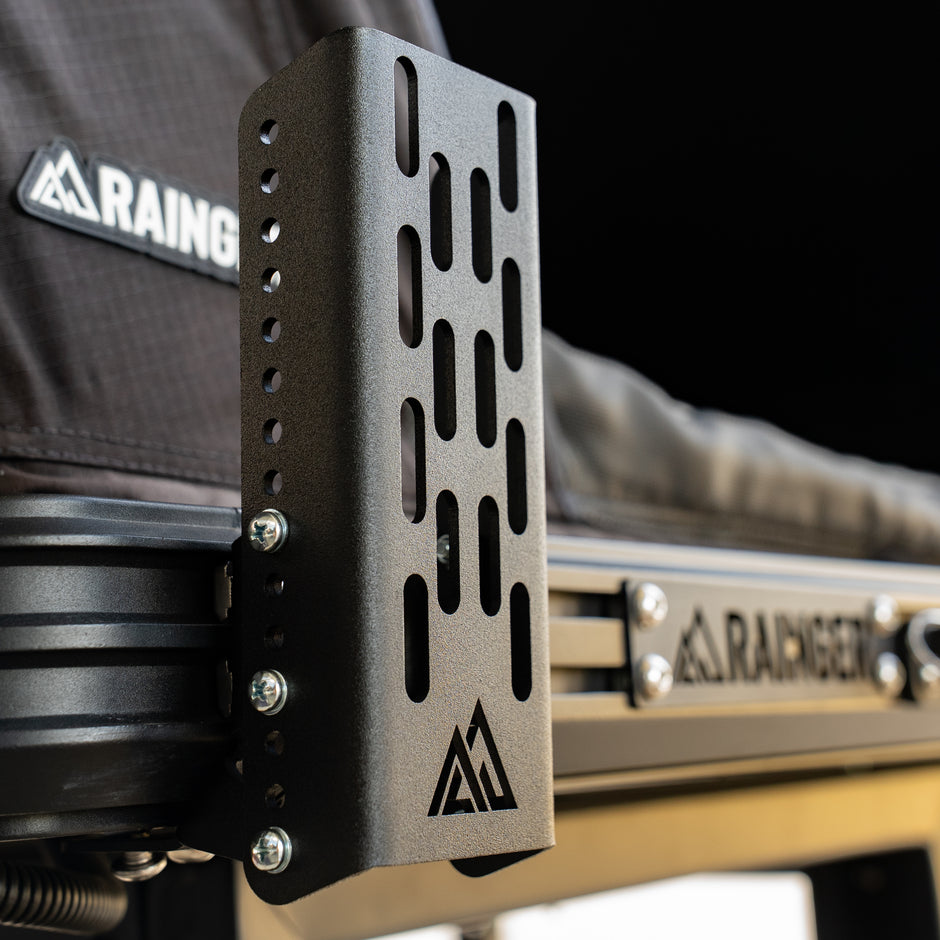

UVP · Bracket System
Direct-to-Tent Awning Brackets
Purpose-built brackets that mount our Rainger 270° awnings directly to the Revo-X body. No spacers, no compromise on ventilation — cleaner profile, lower stack height, faster setup.
Shop 270° Awnings →UVP · Freestanding
Freestanding Off the Brackets
Mounted on the brackets, the 270° awning is fully freestanding — no poles, no legs. The bracketry carries the load, so it deploys faster and the rig stays clean.
Shop Awnings →UVP · System Build
One Build. One Workshop. One Phone Number.
Tent, awning, brackets, lighting, recovery mounts, BCDC, solar regulator — all from one Australian builder. One conversation sorts your whole setup.
Build Your Setup →
Sizing · 1.45 vs 1.3
Pick the footprint.
Pick the footprint.
Keep the core spec.
The 1.45 is 150mm wider than the 1.3 across every external dimension. Same X-Frame elevation, same Rear Fold, same 295W solar, same 5-opening ventilation, same 100mm mattress philosophy.
This is the 1450mm model — suited to couples on extended trips, families, or anyone wanting genuine room to move.
This tent · 1450 × 2150mm
Revo-X 1.3 · 1300 × 2150mm
Technical Specifications
Every number. Installed. Honest.
We publish the total installed weight (~117.7kg) — tent + solar + rack + wiring — because that's how the tent is actually used on your vehicle. Most competitors quote the shell only and leave the rest to be added later.
| Closed Bare Shell Dimensions | 1450 × 2150 × 175mm |
|---|---|
| Height with Rack & Solar | 215mm total |
| Total Height Incl. 25mm Mounting Rails | 230mm (outer shell & 3rd track overhang 10mm, reducing height) |
| Mounting Rail Orientation | Front-to-back | 1800mm long | 600mm apart |
| Max Crossbar Span | 1600mm |
| Max Front Overhang | 800mm |
| Colours | Desert Tan (two-tone with black) | Midnight Black |
| Mattress | 1270 × 1970mm | 100mm dual-density eggshell foam |
| Tent Weight | 98kg (including 6kg mattress) |
| Solar + Rack Weight | 19.7kg (panel is 14kg) |
| Total Installed Weight | ~117.7kg all-in (tent + solar + rack + wiring) |
| Solar Panel | 295W full-black monocrystalline PERC | 72 half-cells | Glass-framed slimline |
| Solar Output | Unregulated | Vmp 19.31V | Imp 15.28A | Voc 24.30V |
| Tent Canvas | 320GSM ripstop | PU 10,000mm | UV+50 | Seam-sealed | PU-backed internal walls |
| Awning Canvas | 300GSM synthetic | PU 5,000mm | UV+50 |
| Mesh | Superfine anti-cut nylon — all windows and doors |
| Ventilation | 5 independent openings | True crossflow | Rain-protected top vent |
| Fans | 2× USB rechargeable | Internal lithium | Magnetic mount | Removable |
| Anti-Condensation Mat | 15mm black mesh |
| Ladder | 2.3m telescopic | Hook & pin lock | Angled wide steps |
| Closure | 4× laser-cut latches | 1-strap pull-down |
| Hardware | 316 marine grade stainless steel throughout |
| Gas Struts | Stabilus German-engineered | Specced for shell weight | Stocked as spares |
| Shell Seal | Hidden recessed | Alloy-guarded | 10mm overhang with outward flare |
| 12V Power Hub | Mirrored each side | Cig + USB-A + USB-C QC + Voltage display per side |
| Anderson Plugs | Grey 12V in | Red solar out |
| Lighting | 3× dimmable LED strips |
| Storage | Overhead tablet pocket | 4 side gear pockets |
| Heater Port | Heat-proof diesel heater port | Zipper | AC hose compatible |
| Warranty | 2 years — manufacturing defects |
Vehicle Compatibility
Fits more than you think. Confirm before you order.
The Revo-X mounts to touring vehicles, alloy ute canopies, load bar setups, camper trailers, and jet ski or motorbike trailers. Rhino Rack, ARB, and Front Runner systems may need additional hardware. Contact us before you order — we'll confirm compatibility with your specific setup before anything ships.
Touring VehiclesAlloy CanopiesLoad Bar SetupsCamper TrailersJet Ski / Moto Trailers
Shipping & Pickup
Roof top tent freight is a fixed price by area, shown at checkout.
Delivered to a business address with a forklift.
Tents can't go to a home address - choose a business address with a forklift, a depot near you, or pickup from Baringa HQ ($0).
Pickup from Baringa HQ is $0, Monday to Friday 9am-4pm.
Buying 2 or more tents? Message us for a combined freight quote - extra tents share the pallet, so it works out cheaper per tent.
No forklift at your end? Message us before ordering and we'll check what's possible at your address.
View · In Person
Rainger HQ
Unit 3/55 Edison Crescent, Baringa, Sunshine Coast QLD
Open Mon–Fri · 9am–4pm
View · In Person
Roam Offroad
Gawler, Adelaide SA
Open hours · Walk in
View · In Person
Norweld
Newcastle, NSW
Open hours · Walk in
Frequently Asked
Questions worth answering honestly.
Does the Revo-X get condensation?
Every hardshell roof top tent does — it's physics, not a design fault. The real question is whether you wake up in a damp tent, and the Revo-X is engineered so you don't: five openings for genuine crossflow, two magnetic USB fans moving air overnight, and a 15mm anti-condensation mat plus a 100mm dual-density mattress that keeps you up off the cold alloy floor — a warmer sleeper puts less moisture into the air than one pressed against a cold base. PU-backed walls wipe dry instead of soaking moisture in, so anything that does form takes seconds to wipe down, not a morning spent drying out a tent.
How much does it weigh fully installed?
Approximately 117.7kg all-in — that includes the tent (98kg), the 295W solar panel, slimline rack, and internal wiring (19.7kg). We publish the total installed weight because many competitors only quote the shell weight without the components buyers usually add later.
Do I need a solar regulator?
Yes — the 295W panel output is unregulated. You will need either a standalone MPPT/PWM solar regulator or a DCDC/BCDC charger with solar input. Many popular units from Redarc, Projecta, Enerdrive, Victron and Renogy will suit. Contact us before ordering and we'll help confirm compatibility with your setup.
What vehicles does it fit?
The Revo-X mounts to touring vehicles, alloy ute canopies and load bar setups, camper trailers, and jet ski or motorbike trailers. Rhino Rack, ARB, and Front Runner systems may require additional mounting hardware. Contact us before you order and we'll confirm compatibility with your specific setup before anything ships.
Can I store bedding inside when it's closed?
Yes. The Revo-X stores your doona, light pillows, and sheets inside the shell between trips. One strap pulls the tent down and four laser-cut latches lock it shut, so pack-up stays quick.
What's the difference between the 1.45 and 1.3?
The 1.45 is 150mm wider across every external dimension. The core design is identical: X-Frame elevation, Rear Fold, integrated solar, ventilation system and mattress philosophy. The 1.45 suits couples on extended trips and families wanting genuine room to move; the 1.3 suits buyers wanting a tighter footprint without giving away the core spec.
Can I replace the canvas if it gets damaged?
Yes. The canvas body unzips from the top and rotates out via a bottom sail track system. If the canvas is ever damaged or reaches end of life, it can be replaced without buying a whole new tent.
Where can I see one in person before buying?
The Revo-X is available to view set up at Rainger HQ in Baringa, Sunshine Coast QLD (open Mon–Fri, 9am–4pm), at Roam Offroad in Gawler, Adelaide SA, and at Norweld in Newcastle, NSW. We also attend camping and 4WD shows through the year — contact us to find out where we'll be next.
